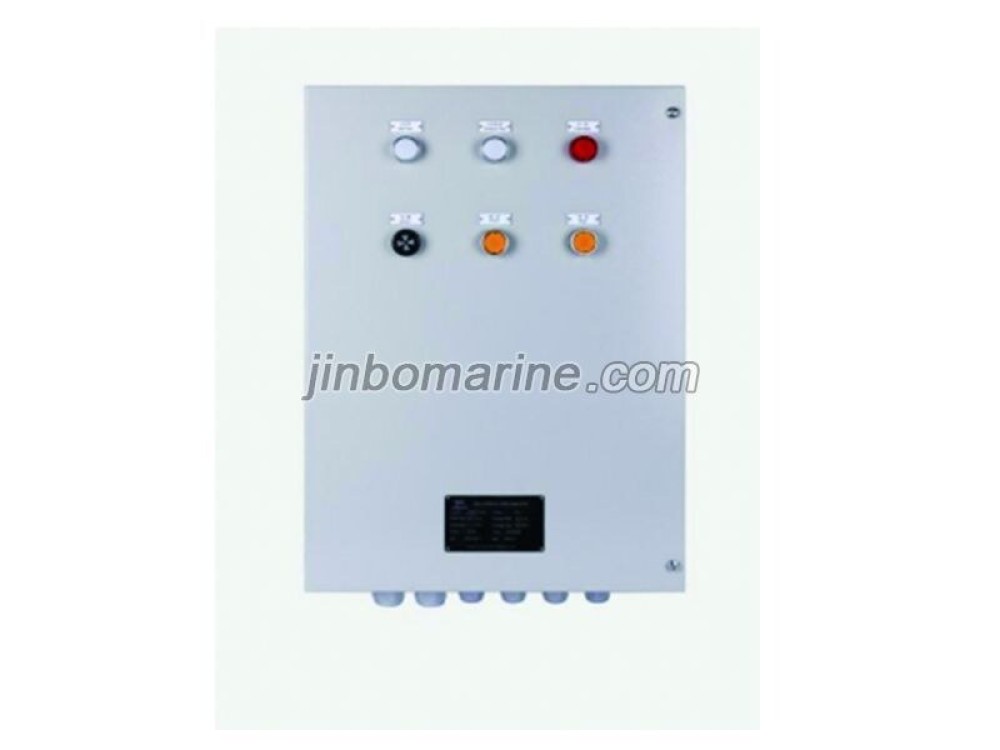

SGK-7/7A Relay Box

SGK-7/7A Relay Box

SGK-7 power supply:

Main power: AC220V±10%

Emergency power: DC24V -25% +30%

SGK-7A power supply:

Main power: AC220V±10%

Emergency power: AC220V ±10%

Output power:SGK-7:350W

Passive contact load（resistance）：5A/240VAC 5A/28VDC

Input signal detection mode: assive normallyopen contact,it will alarm when contact is closed.

Color: Light gray（RAL7035）

IP class:IP44

Weight: 19.5/15Kg

Stuffing box cable entrance hole size: 4- Φ18mm 8-Φ14mm

Power:≤650W
