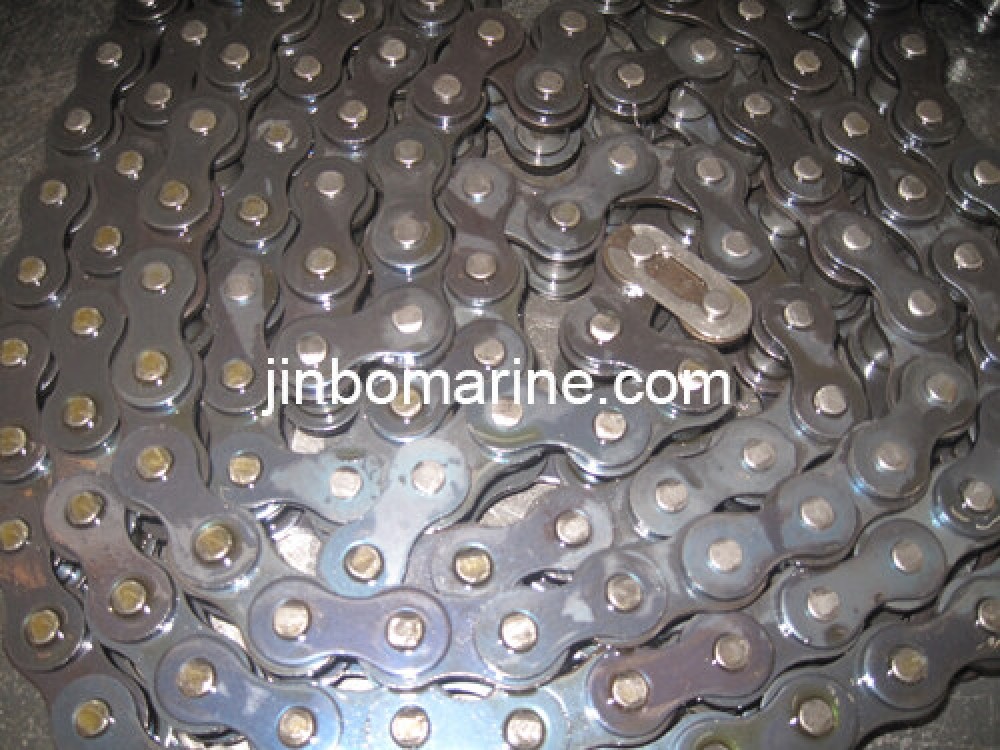

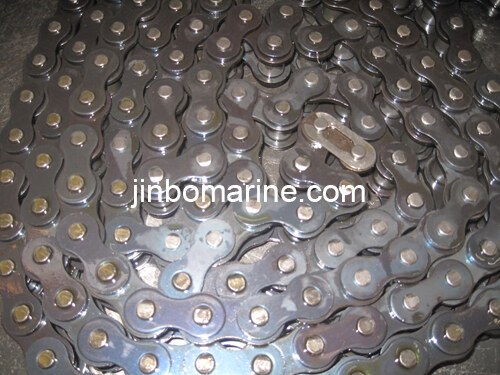

Simplex Roller Chain(B Series)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

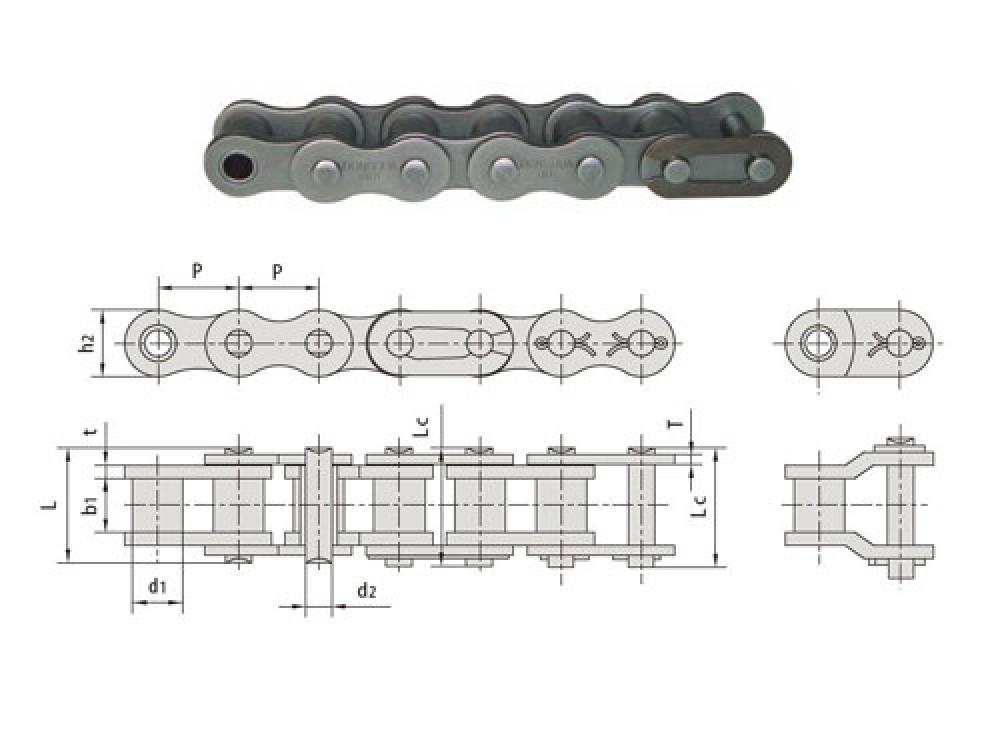

DIN/ISO Chain No. Pitch Roller Width Pin Diameter Pin Length Inner plate depth Plate Thickness Ultimate tensile strength Average tensile strength weight Per Meter
P d1 b1 d2 L Lc h2 T Q Q0 q
mm mm mm mm mm mm mm mm kN/LB kN kg/m
04B-1
6.000 4.00 2.80 1.85 6.80 7.80 5.00 0.6 3.2/682 3.20 0.11
05B-1 8.000 5.00 3.00 2.31 8.20 8.90 7.10 0.8 5.0/1136 5.90 0.20
*06B-1 9.525 6.35 5.72 3.28 13.15 14.10 8.20 1.3 9.0/2045 10.40 0.41
08B-1 12.700 8.51 7.75 4.45 16.70 18.20 11.80 1.6 18.0/4091 19.40 0.69
10B-1 15.875 10.16 9.65 5.08 19.50 20.90 14.70 1.7 22.4/5091 27.50 0.93
12B-1 19.050 12.07 11.68 5.72 22.50 24.20 16.00 1.85 29.0/6591 32.20 1.15
16B-1 25.400 15.88 17.02 8.28 36.10 37.40 21.00 4.15/3.1 60.0/13636 72.80 2.71
20B-1 31.750 19.05 19.56 10.19 41.30 45.00 26.40 4.5/3.5 95.0/21591 106.70 3.70
24B-1 38.100 25.40 25.40 14.63 53.40 57.80 33.20 6.0/4.8 160.0/36364 178.00 7.10
28B-1 44.450 27.94 30.99 15.90 65.10 69.50 36.70 7.5/6.0 200.0/45455 222.00 8.50
32B-1 50.800 29.21 30.99 17.81 66.00 71.00 42.00 7.0/6.0 250.0/56818 277.50 10.25
40B-1 63.500 39.37 38.10 22.89 82.20 89.20 52.96 8.5/8.0 355.0/80682 394.00 16.35
48B-1 76.200 48.26 45.72 29.24 99.10 107.00 63.80 12/10 560.0/127272 621.60 25.00

Packing

Poly-bag/Carton/Wooden Box
