Single Acting Multi-Section Jack

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Single Acting Multi-Section Jack:

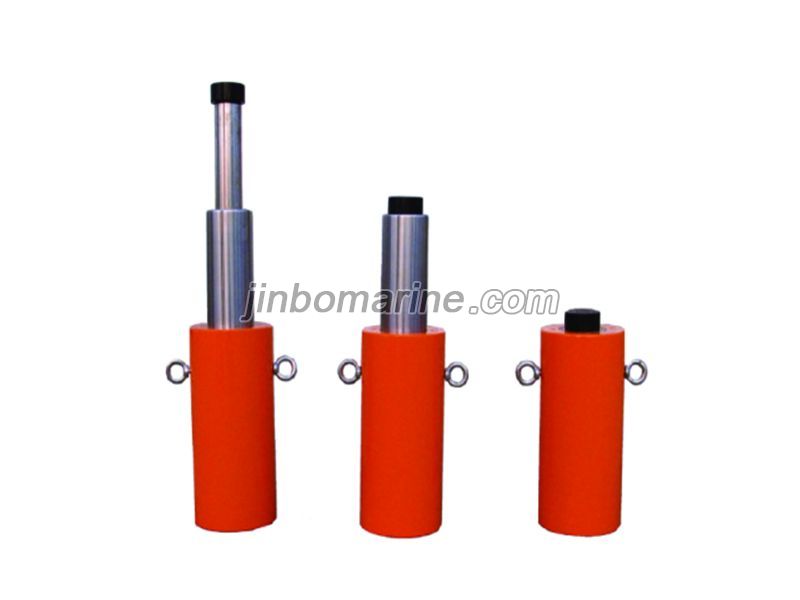

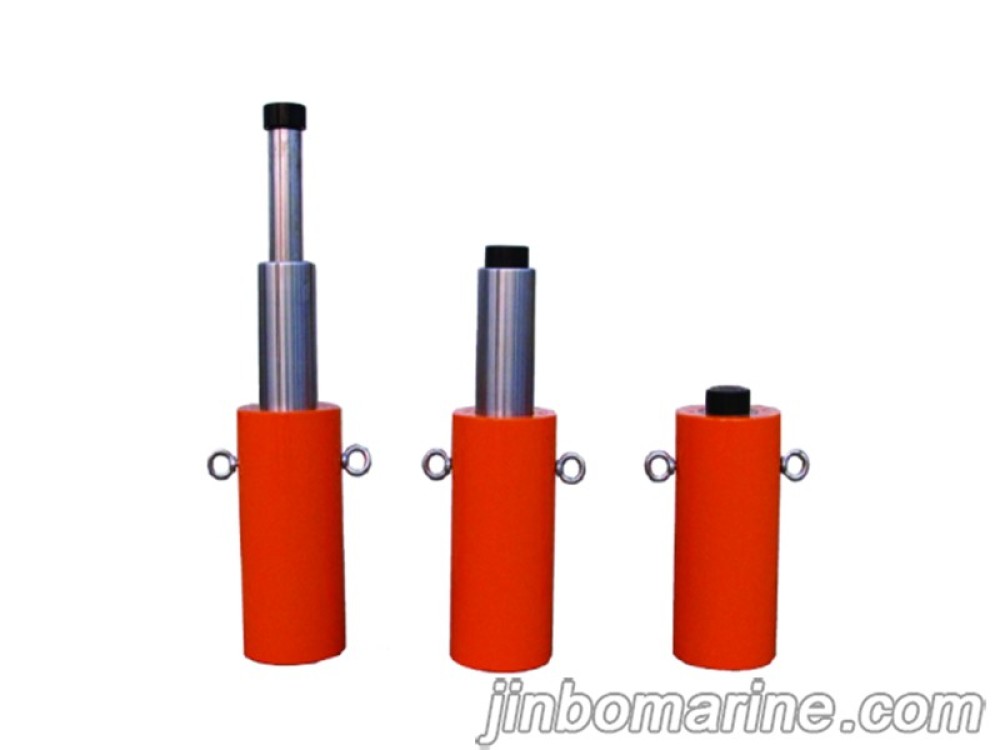

Single Acting Multi-Section Jack

Product features:

The single-acting multi-section jack is carefully designed by the engineers of our factory on the basis of the thin top.It can be placed on the ground with a relatively short space. Within the effective height of the body, the stroke of the top is increased, so that the heavy objects can be lifted. Higher, more convenient to use. Products are widely used in the installation and maintenance of large and medium-sized machinery and equipment in petroleum,chemical, electric power, pharmaceutical, metallurgy. steel, vehicles, bridges and other industries. They are ideal and necessary tools for installation and maintenance workers. A large and medium-sized enterprise.

Ability to work mm
Level 1 Stroke
mm
Level 2 Stroke
mm
Outer diameter
mm
Height
MSJ-5T 42 42 65 70
MSJ-10T 48.6 48.6 70 81
MSJ-20T 55.2 55.2 108 92
MSJ-30T 62 62 127 103
MSJ-50T 75 75 146 124
MSJ-100T 96 96 219 156
