Snatch Blocks S Series With Shackle

Request a Quote Not what you need, please send your RFQs via Email.

Details

Drawing:

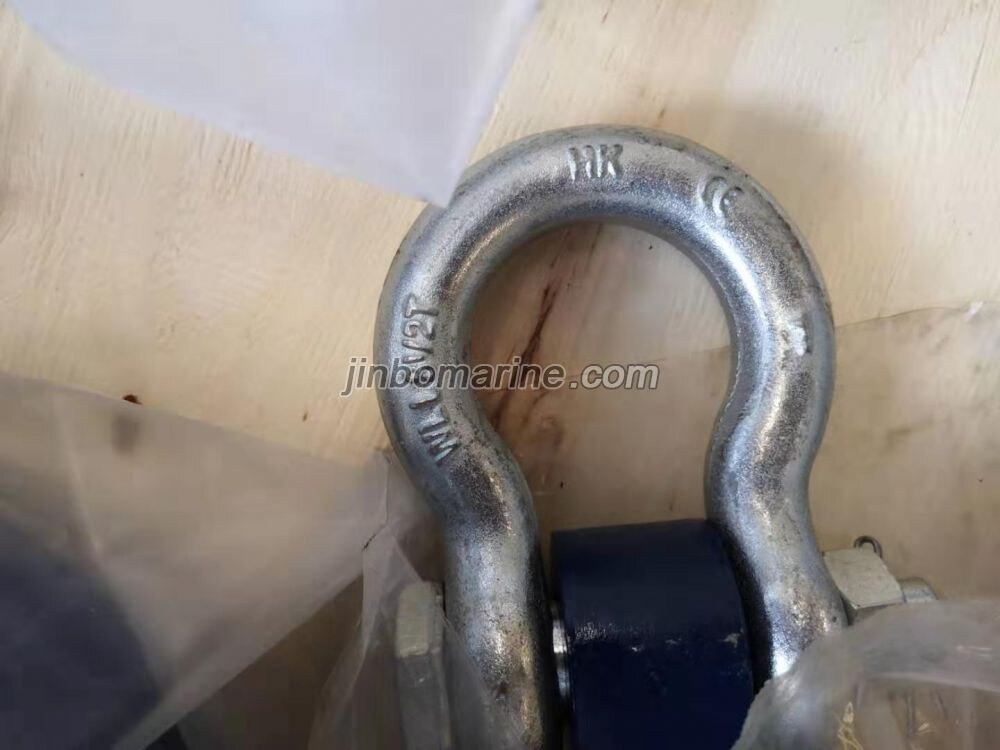

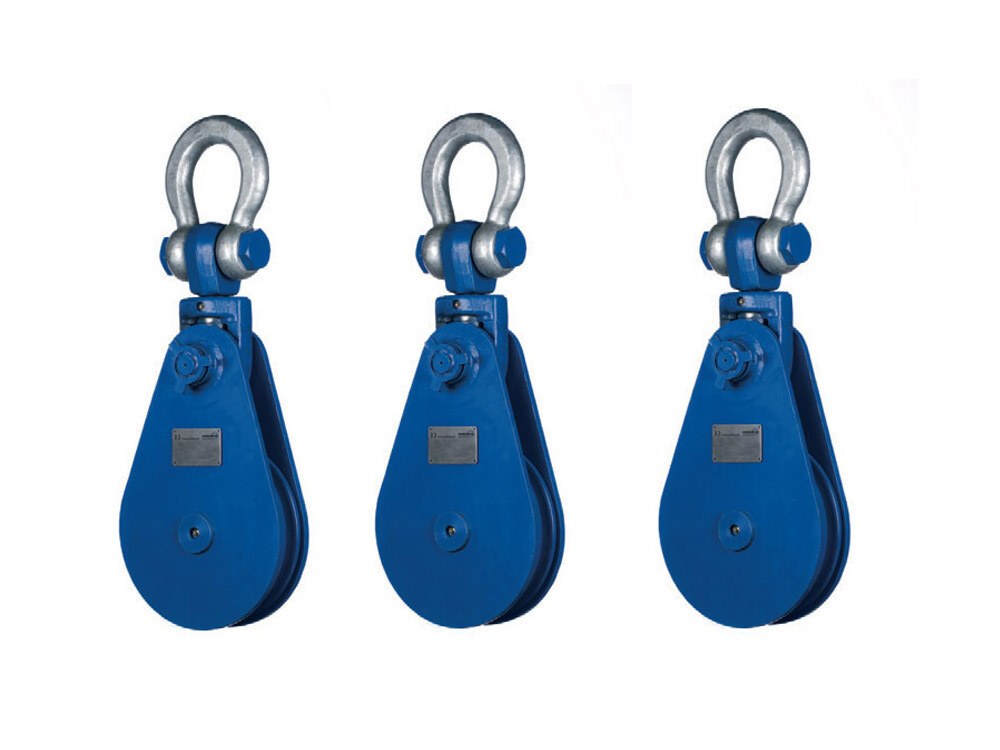

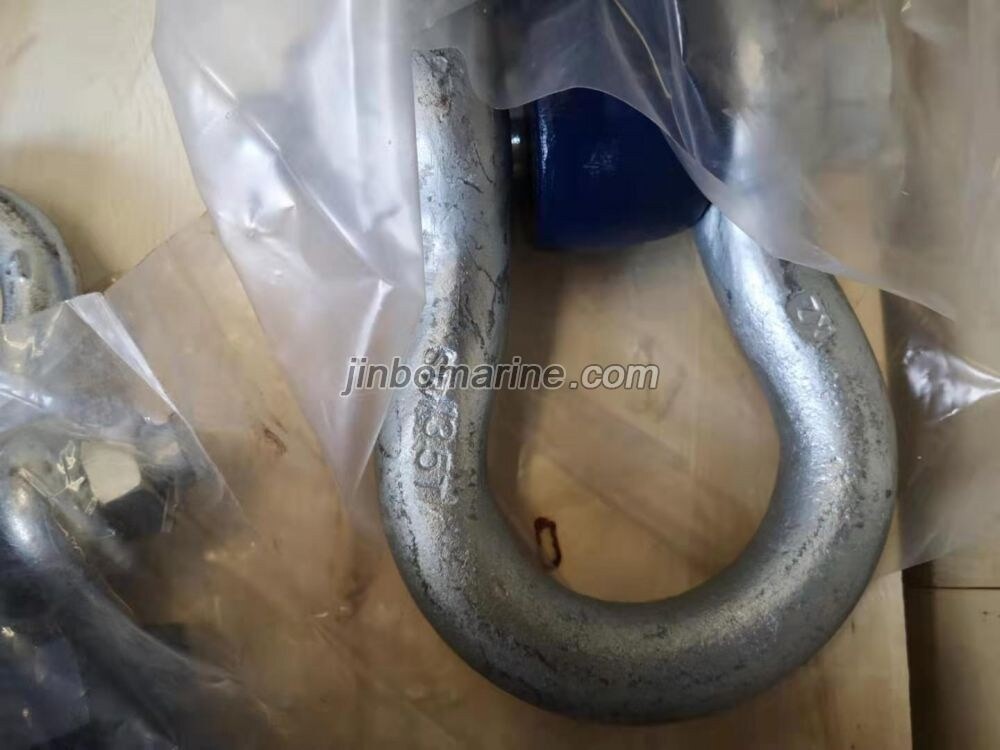

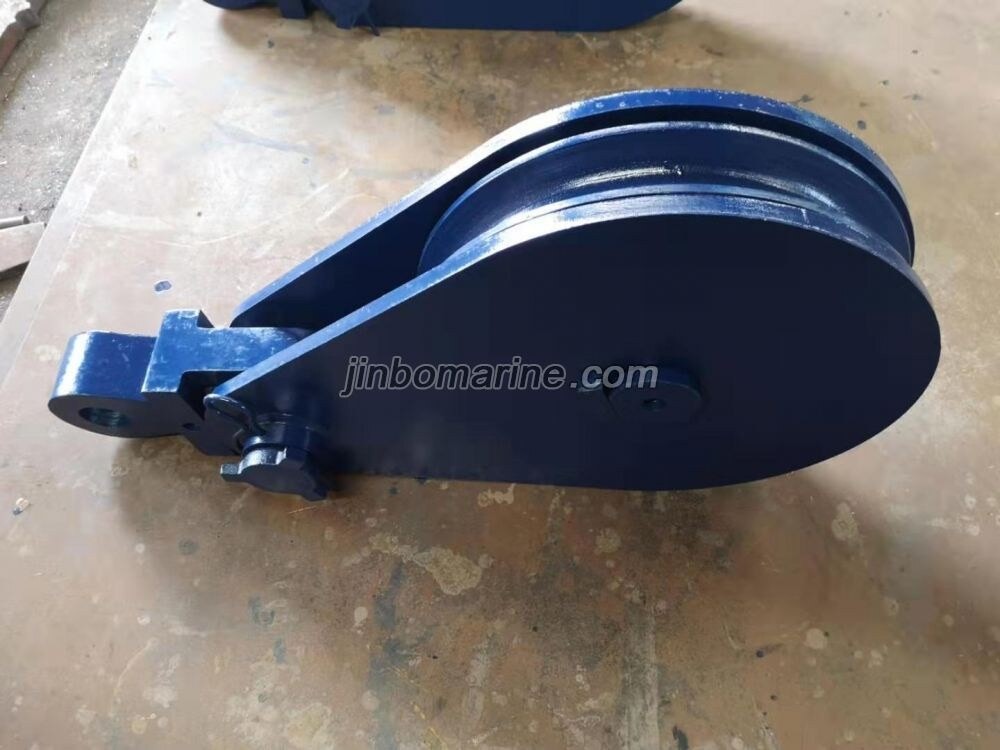

Picture:

Specification:

stock no. will(t) wire dimensions(mm) bearing type weight(kg)
(mm) (inches) ΦD1 ΦD2 TA TB TC
12.103.02.15 2 7-9 9/32-3/8 75 58 82 70 290 BB 4
12.104.04.15 4 10-12 3/8-1/2 115 90 120 70 358 BB 6
12.106.04.15 4 16-19 5/8-3/4 150 120 160 70 432 BB 14
12.106.08.15 48 19-22 3/4-7/8 150 120 160 93 497 RB 15
12.108.08.15 8 19-22 3/4-7/8 200 165 210 93 550 RB 16
12.110.10.15 10 24-26 1 250 205 260 115 681 RB 38
12.110.12.15 12 24-26 1 250 205 260 115 683 RB 42
12.112.12.15 12 24-26 1 300 250 310 133 767 RB 56
12.108.15.15 15 22-24 7/8-15/16 200 165 210 102 663 RB 24
12.112.15.15 15 24-26 1 300 250 310 133 788 RB 65
12.114.22.15 22 28-32 9/8-5/4 355 305 365 140 962 RB 90
12.116.22.15 22 28-32 9/8-5/4 405 350 415 140 1019 RB 108
12.118.22.15 22 28-32 9/8-5/4 450 295 465 180 1069 RB 120
12.112.30.15 30 28-30 9/8-19/16 300 245 310 193 1023 RB 125
12.116.30.15 30 32-35 5/4-11/8 405 350 415 155 1121 RB 135
12.120.30.15 30 32-35 5/4-11/8 508 440 514 162 1256 RB 210
12.114.35.15 35 32-35 5/4-11/8 350 280 365 193 1058 RB 130
12.124.50.15 50 46-50 28/16-2 600 500 625 275 1525 RB 418

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
