Split Hydraulic Puller
- Category:Marine Tools
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Split Hydraulic Puller:

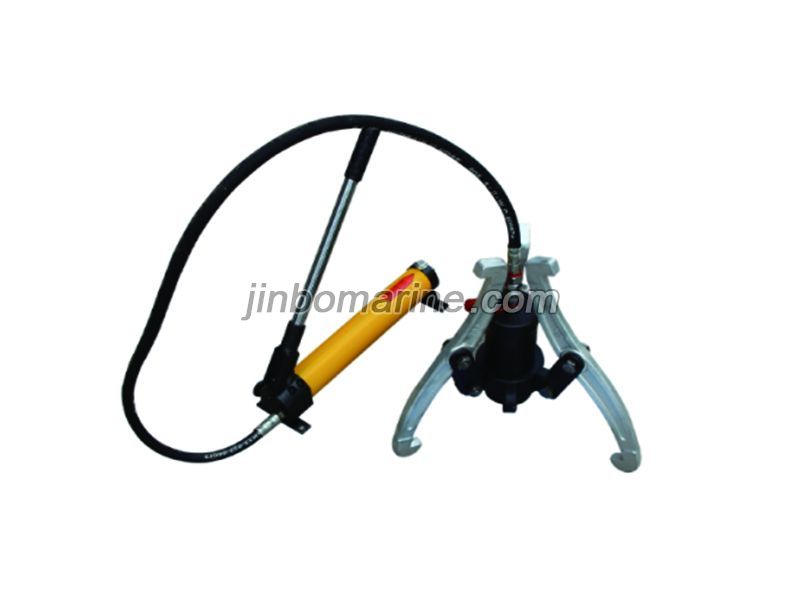

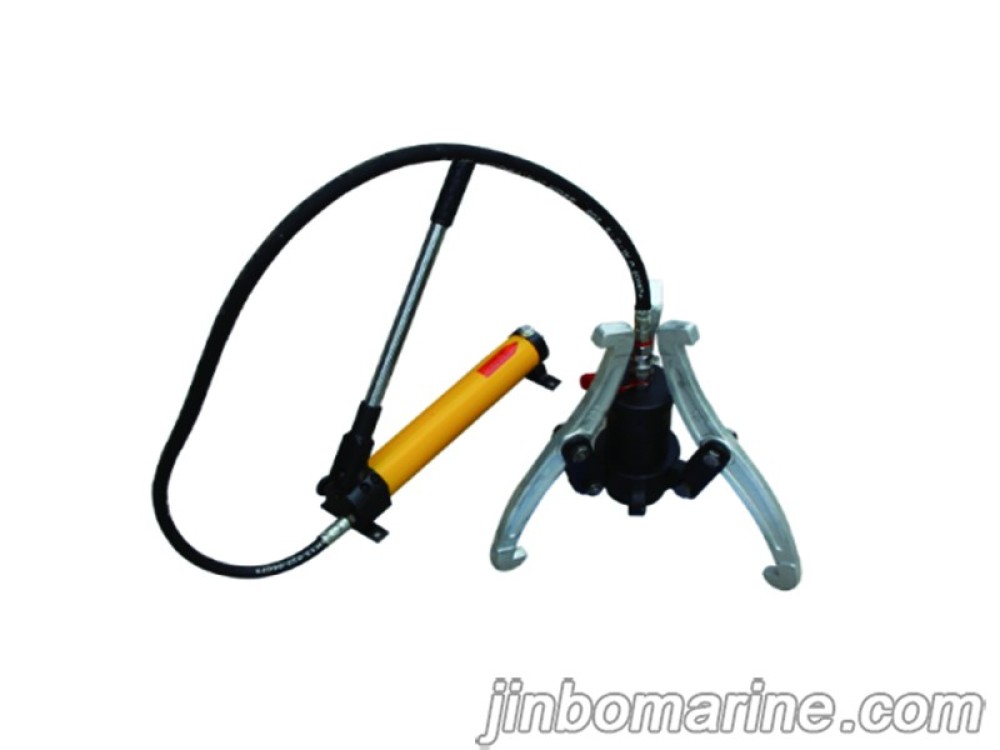

Split Hydraulic Puller
The hydraulic puller moves directly forward with the hydraulic starting rod, so the push rod itself does not rotate. The hook seat can be adjusted forward and backward directly with the thread. During operation, as long as the handle swings back and forth slightly, the hydraulic starter rod moves forward, and the hook correspondingly retreats to pull out the pulled object.
| Model | DYF-5 | DYF-10 | DYF-20 | DYF-30 | DYF-50 | DYF-100 | |
| Safe weight(T) | 5 | 10 | 20 | 30 | 50 | 100 | |
| Stroke(mm) | 60 | 60 | 60 | 60 | 60 | 100 | |
| Three-jaw adjustment range(mm) | 50-250 | 50-300 | 100-450 | 150-500 | 200-550 | 250-600 | |
| Working pressure(MPa) | 40 | 63 | 63 | 63 | 63 | 63 | |






































































































































































































































































































.jpg)
