SPM Hawser Thimble
- Category:Mooring Line
- Delivery Time:20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China SPM Hawser Thimble:
Material:
Cast steel Stainless steel
Finish:
Galvanised (mild steel)
Self coloured (stainless steel)

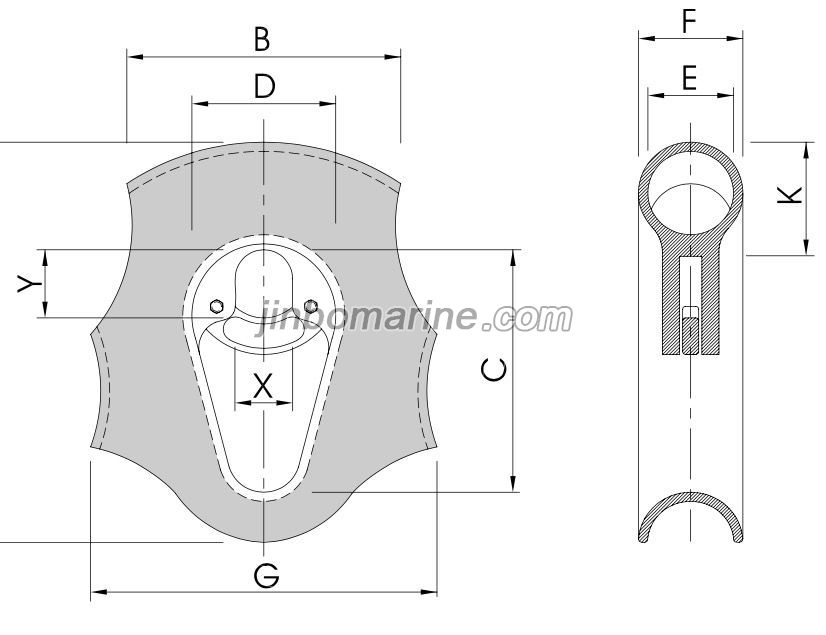

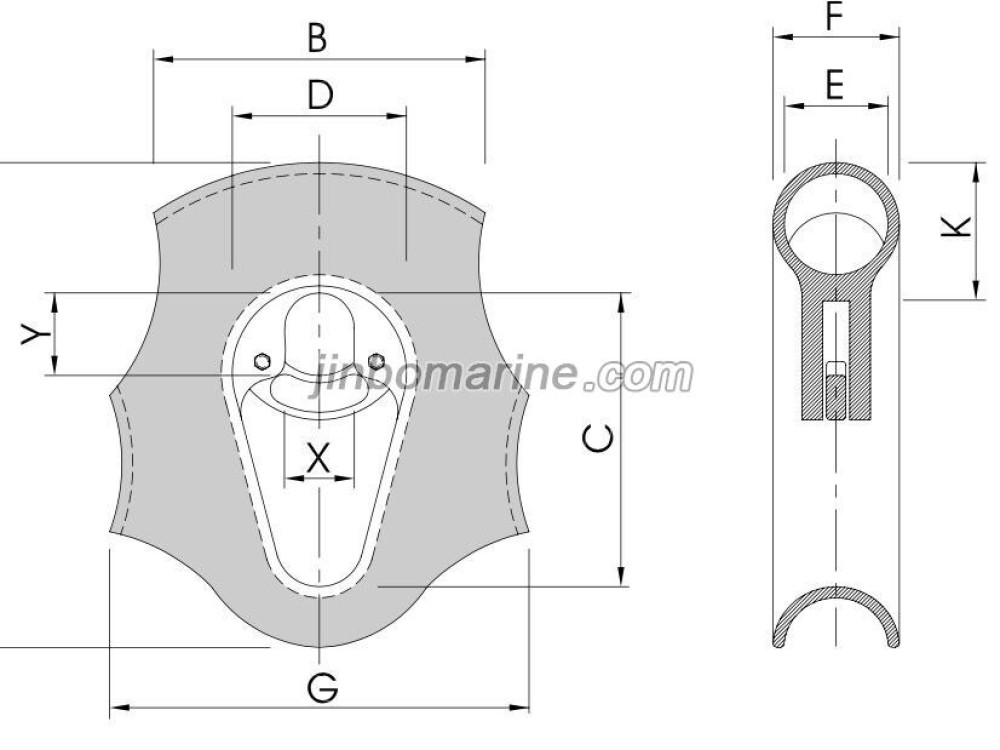

| Rope Size (inch) |
A(mm)
|
B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | K(mm) | X(mm) | Y(mm) | Weight(kg) |
| 11"-13" | 530 | 320 | 270 | 175 | 132 | 157 | 477 | 170 | 105 | 105 | 52 |
| 14"-15" | 655 | 476 | 357 | 258 | 154 | 183 | 598 | 200 | 116 | 125 | 83 |
| 16"-18" | 795 | 542 | 380 | 283 | 184 | 212 | 721 | 252 | 136 | 140 | 118 |
| 19"-21" | 940 | 657 | 457 | 348 | 209 | 261 | 880 | 309 | 158 | 177 | 315 |
| 22"-24" | 1043 | 814 | 575 | 410 | 244 | 298 | 867 | 360 | 180 | 200 | 406 |
