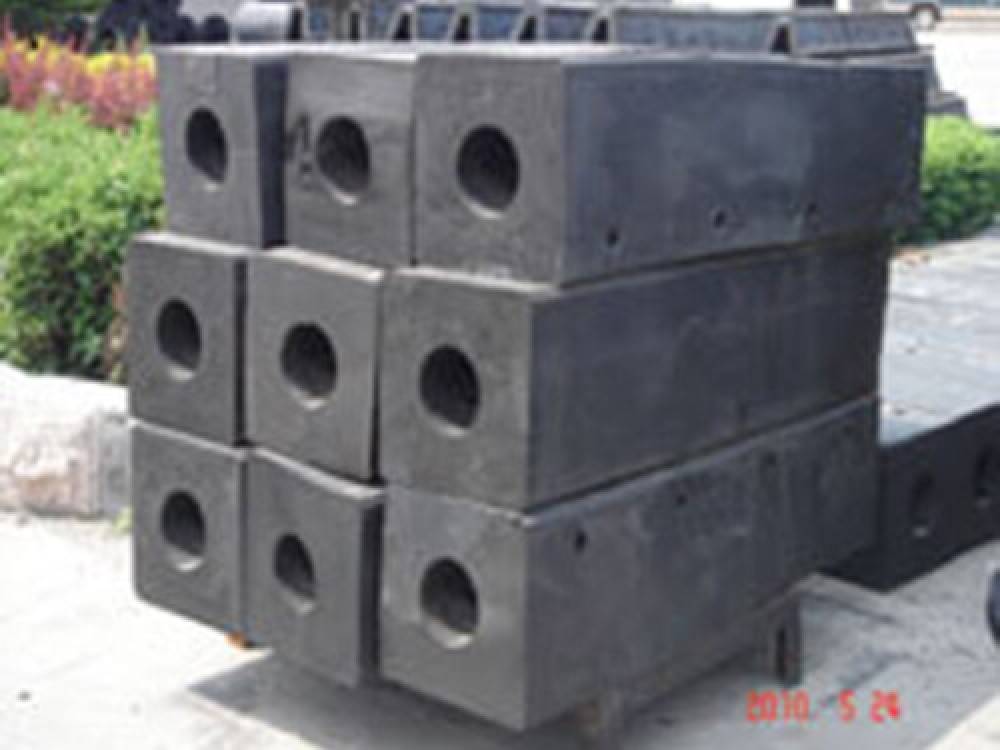

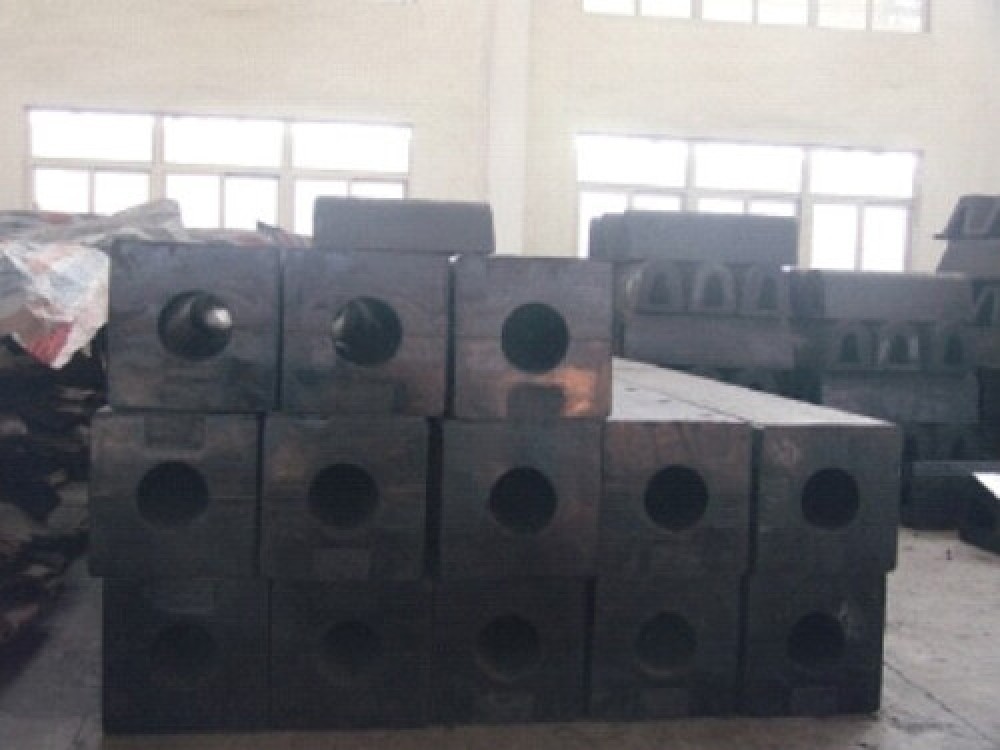

Square Rubber Fender

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Square Rubber Fender:

Square Rubber Fender mainly install on the bow or stern of smaller vessel.

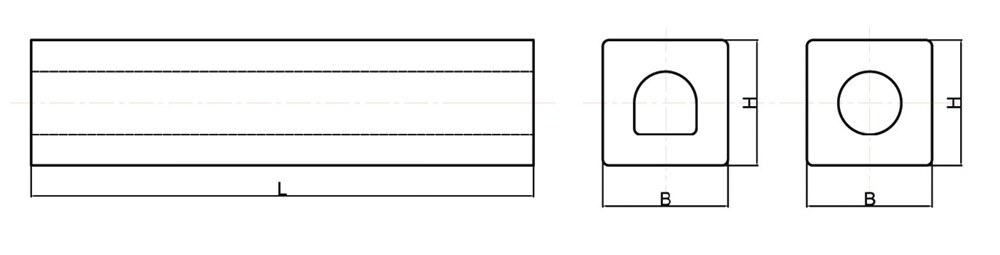

Specification:

Item 150HB 200HB 250HB 300HB 350HB 400HB 500HB 600HB
H 150 200 250 300 350 400 500 600
B 150 200 250 300 350 400 500 600
ΦD 75 100 125 150 175 200 250 300
Φ1 60 65 75 80 85 95 105 115
Φ2 27 30 33 36 40 45 50 55
Bolt Size M22 M26 M30 M32 M36 M38 M45 M52
Bolt Distance 260-330 260-330 250-320 275-330 275-350 300-370 300-400 300-450
Reaction Force(kN) 117 156 195 234 273 312 390 468
Energy Absorption(kN/M) 3.83 6.85 10.6 15.4 20.9 27.4 42.8 61.6
