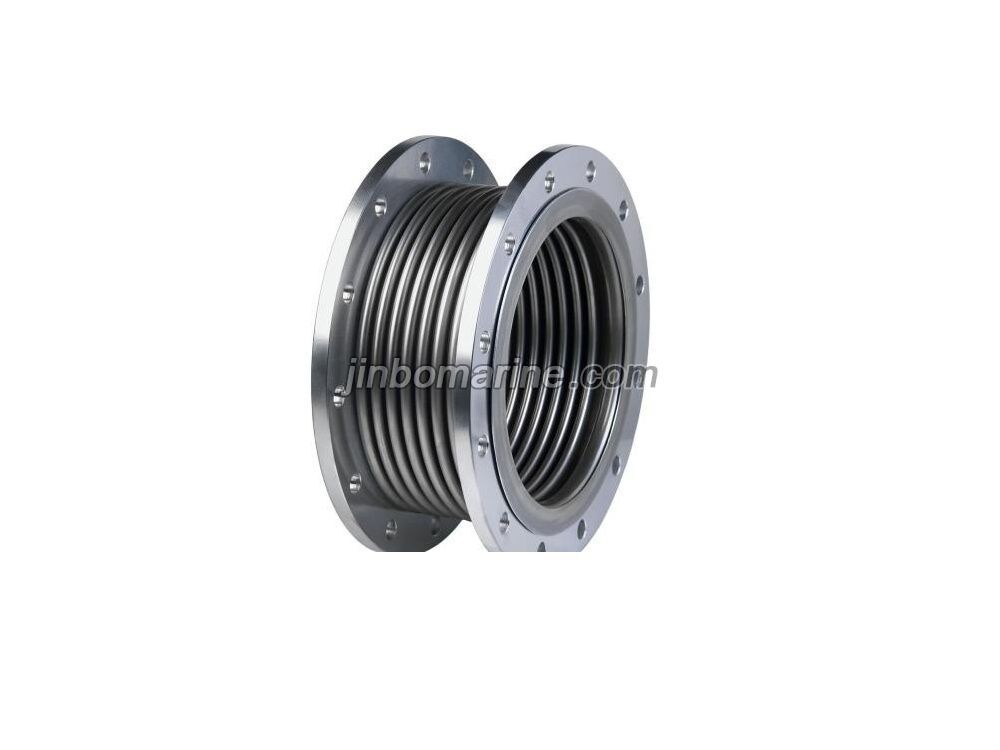

Stainless Steel Marine Bellows Expansion Joint CBM1033-81

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Stainless Steel Marine Bellows Expansion Joint CBM1033-81:

It is mainly used in the pipeline of internal combustion engine. As a compensator for heat expansion and contraction of pipeline, it can withstand the vibration caused by thermal expansion stress and pulse in the system.
Nominal pressure: 0.05MPa
Nominal diameter: 65-1500mm
Applicable temperature: ≤550℃

Flange connection standard

DN≤500mm conform to CBM1033-81(JIS2221-1974)
DN≥500mm conform to JISF7805-1976

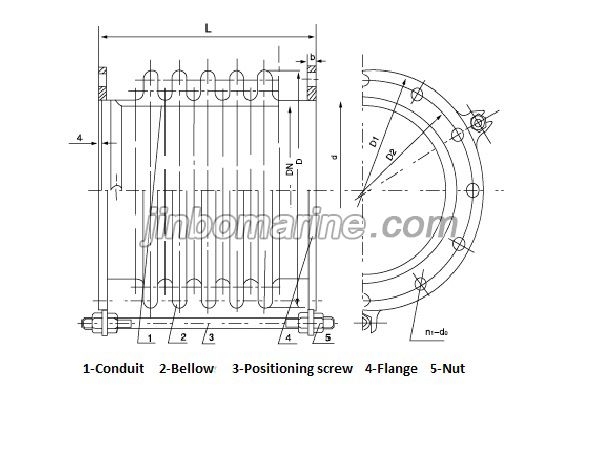

Structure

Stainless Steel Marine Bellows Expansion Joint CBM1033-81 Main Specifications

DN Structure size Flange Bolt
d L n D1 D2 d d0 Num Th
65 76 210 10 155 130 12 15 4 M12
80 89 210 10 180 145 12 19 4 M16
100 114 220 6 200 165 12 19 8 M16
125 140 220 6 235 200 12 19 8 M16
150 165 185 3 265 230 14 19 8 M16
175 190 185 3 300 260 14 19 8 M16
200 216 260 3 320 280 14 19 8 M16
360 5 320 280 14 19 8 M16
250 268 280 3 385 345 16 19 12 M16
380 5 385 345 16 19 12 M16
300 318 280 3 430 390 16 23 12 M20
380 5 430 390 16 23 12 M20
350 360 280 3 480 435 16 23 12 M20
380 5 480 435 16 23 12 M20
400 410 280 3 540 495 16 23 16 M20
380 5 540 495 16 23 16 M20
450 460 280 3 605 555 16 23 16 M20
380 5 605 555 16 23 16 M20
500 510 280 3 655 605 16 23 16 M20
380 5 655 605 16 23 16 M20
600 610 280 3 710 670 16 23 16 M20
380 5 710 670 16 23 16 M20
700 711 280 3 815 775 16 23 16 M20
380 5 815 775 16 23 16 M20
800 813 280 3 915 875 16 23 16 M20
380 5 915 875 16 23 20 M20
900 914 290 3 1025 980 18 25 20 M22
390 5 1025 980 18 25 20 M22
1000 1016 310 3 1125 1080 18 25 20 M22
1100 1116 310 3 1225 1180 18 25 24 M22
1200 1219 310 3 1325 1280 18 25 24 M22
1300 1312 310 3 1425 1380 18 25 28 M22
1400 1412 310 3 1525 1480 20 25 28 M22
1500 1524 315 3 1645 1590 20 27 28 M24
