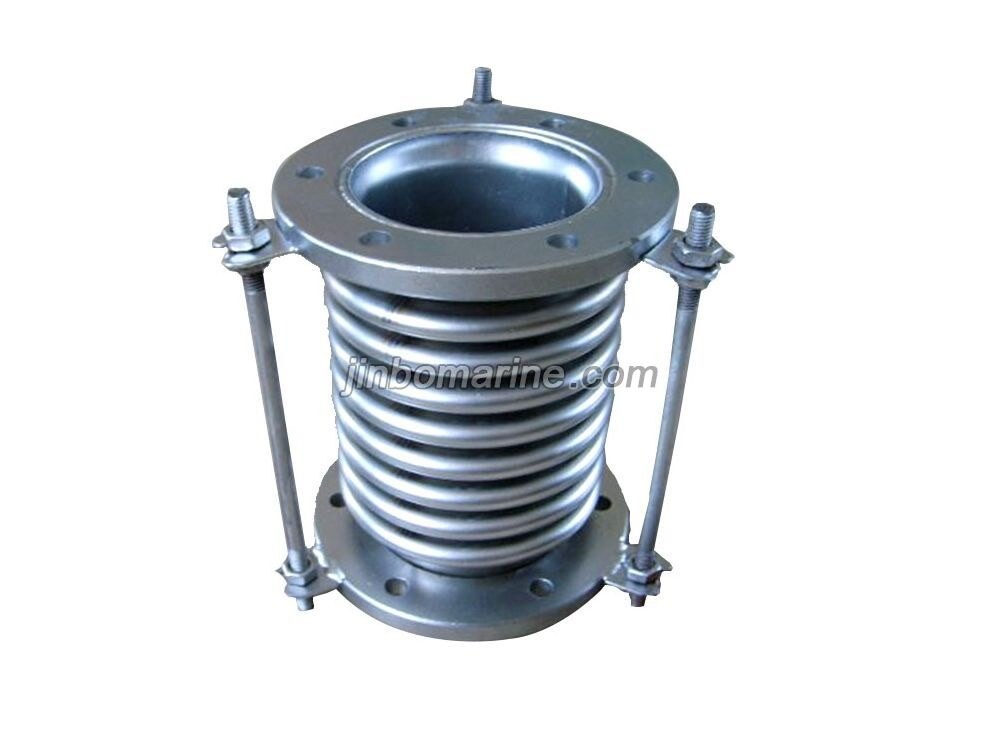

Stainless Steel Marine Bellows Expansion Joint CBM33-81

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Stainless Steel Marine Bellows Expansion Joint CBM33-81:

It is mainly used in the pipeline of internal combustion engine. As a compensator for heat expansion and contraction of pipeline, it can withstand the vibration caused by thermal expansion stress and pulse in the system.
Nominal pressure: 0.05MPa
Nominal diameter: 65-1500mm
Applicable temperature: ≤550℃

Flange connection standard: CBM33-81(ISO2084-1974)

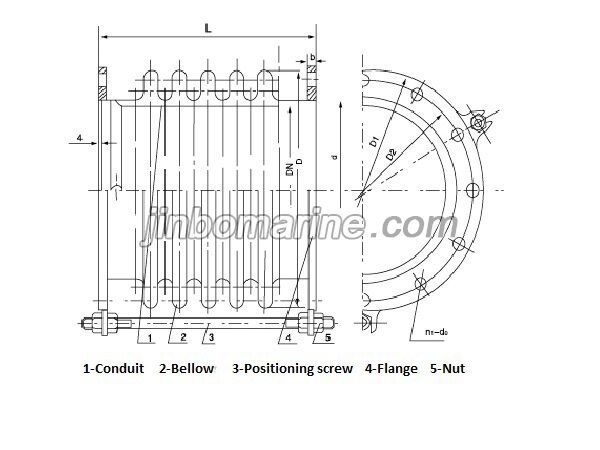

Structure

Stainless Steel Marine Bellows Expansion Joint CBM33-81 Main Specifications

DN Structure size Flange Bolt
d L n D1 D2 d d0 Num Th
65 76 210 10 160 130 12 14 4 M12
80 89 210 10 190 150 12 18 4 M16
100 114 220 6 210 170 12 18 4 M16
125 140 220 6 240 200 12 18 8 M16
150 165 185 3 265 225 14 18 8 M16
175 190 185 3 295 255 14 18 8 M16
200 216 260 3 320 280 14 18 8 M16
360 5 320 280 14 18 8 M16
250 268 280 3 375 335 16 18 12 M16
380 5 375 335 16 18 12 M16
300 318 280 3 440 395 16 22 12 M20
380 5 440 395 16 22 12 M20
350 360 280 3 490 445 16 22 12 M20
380 5 490 445 16 22 12 M20
400 410 280 3 540 495 16 22 16 M20
380 5 540 495 16 22 16 M20
450 460 280 3 595 550 16 22 16 M20
380 5 595 550 16 22 16 M20
500 510 280 3 645 600 16 22 20 M20
380 5 645 600 16 22 20 M20
600 610 280 3 755 705 16 26 20 M24
380 5 755 705 16 26 20 M24
700 711 280 3 860 810 16 26 24 M24
380 5 860 810 16 26 24 M24
800 813 280 3 975 920 16 30 24 M27
380 5 975 920 16 30 24 M27
900 914 290 3 1075 1020 18 30 24 M27
390 5 1075 1020 18 30 24 M27
1000 1016 310 3 1175 1120 18 30 28 M27
1100 1116 310 3 1275 1220 18 30 28 M27
1200 1219 310 3 1375 1320 18 30 32 M27
1300 1312 310 3 1475 1420 18 30 32 M27
1400 1412 310 3 1575 1520 20 30 36 M27
1500 1524 315 3 1690 1630 20 30 36 M27
