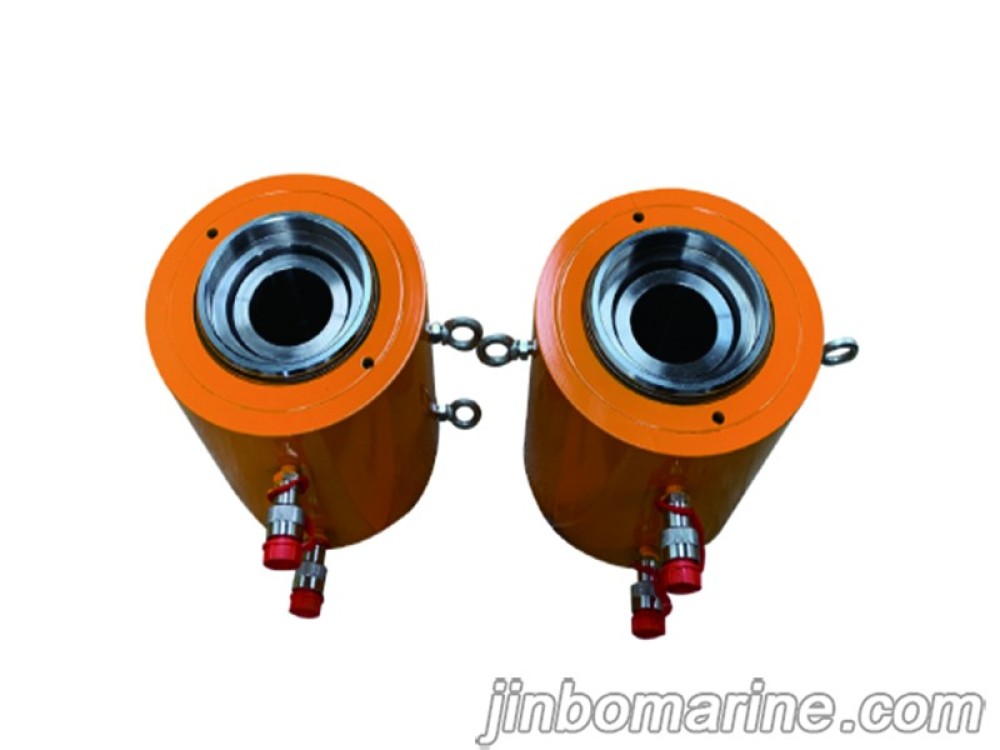

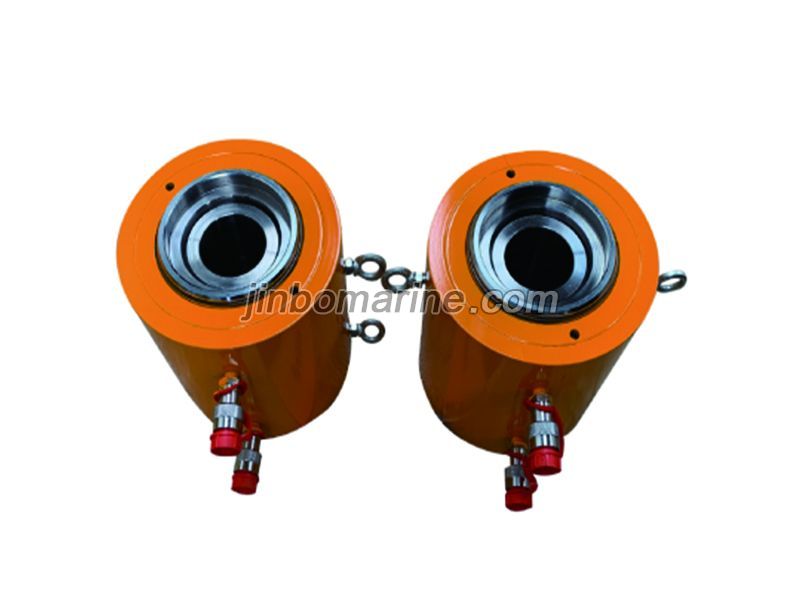

Standard Tension Jack
- Category:High Pressure Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Standard Tension Jack:
Standard Tension Jack
| Model |
T Capacity |
mm middle hole |
mm Outside dia |
mm Cylinder boredia |
mm Stroke |
piston rod |
cm² Area |
pressure |
Tool Anchor |
limit plate |
| YCW-60 | 60 | 58 | 180 | 140 | 200 | 110 | 10362 | 57.9 | 90 | 100 |
| YCW-80 | 80 | 67 | 200 | 160 | 200 | 125 | 13737.5 | 58.23 | 100 | 123 |
| YCW-100 | 100 | 78 | 230 | 180 | 200 | 140 | 17584 | 56.86 | 118 | 128 |
| YCW-120 | 120 | 78 | 245 | 200 | 200 | 150 | 23550 | 50.95 | 118 | 128 |
| YCW-150 | 150 | 100 | 270 | 220 | 200 | 170 | 24727.5 | 60.66 | 148 | 158 |
| YCW-200 | 200 | 120 | 325 | 270 | 200 | 200 | 37130.5 | 53.86 | 168 | 178 |
| YCW-250 | 250 | 130 | 350 | 290 | 200 | 220 | 43332 | 57.69 | 184 | 194 |
| YCW-300 | 300 | 146 | 380 | 320 | 200 | 260 | 54950 | 54.59 | 214 | 214 |
| YCW-350 | 350 | 165 | 400 | 340 | 200 | 260 | 59346 | 58.97 | 238 | 238 |
| YCW-400 | 400 | 165 | 450 | 360 | 200 | 270 | 70336 | 56.86 | 248 | 248 |
| YCW-450 | 450 | 175 | 480 | 380 | 200 | 280 | 78735.5 | 57.15 | 248 | 248 |
| YCW-500 | 500 | 196 | 500 | 400 | 200 | 300 | 84.73.5 | 59.47 | 278 | 289 |
| YCW-650 | 650 | 240 | 600 | 480 | 200 | 360 | 119320 | 54.47 | 318 | 338 |
