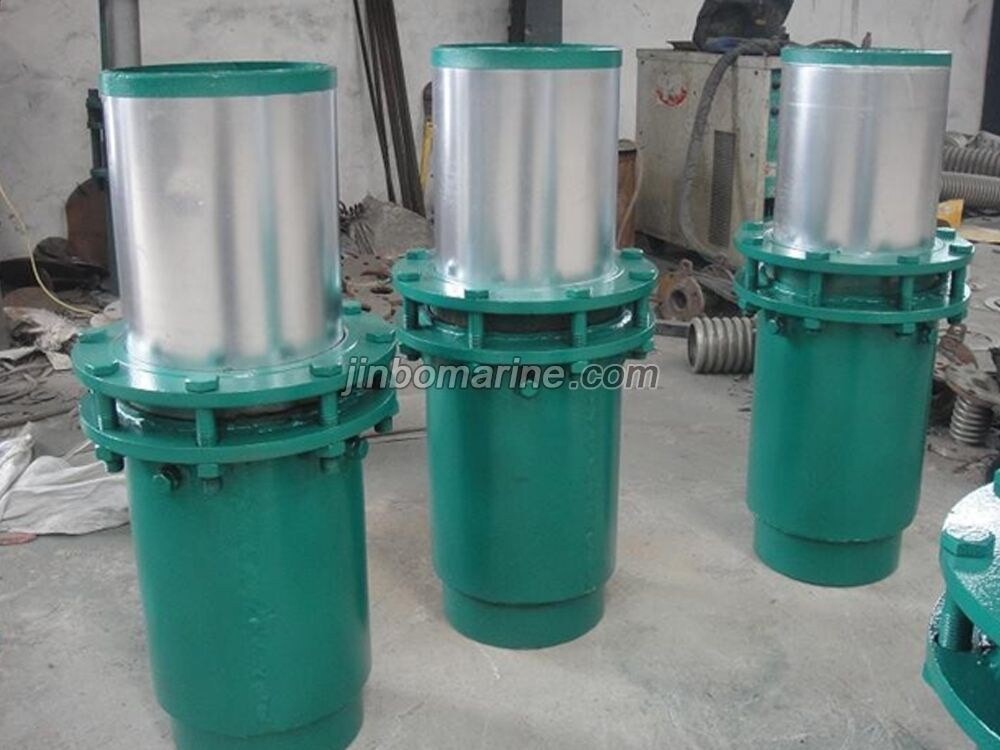

Stuffing Box Type Expansion Joint

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Stuffing Box Type Expansion Joint:

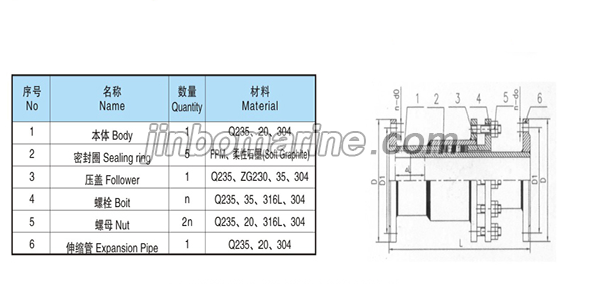

Stuffing box type expansion joints applies to the connection of thermal steam pipeline, by tighten the nut, the gland presses the sealing ring and packing to sick close the expansion pipe to assure leak-prove, the expansion pipe can freely expand or contract when temperature changes and compensation thus achieved.

Stuffing Box Type Expansion Joint Main Specifications

DN L △L Flange
0.6MPa 1.0 MPa 1.6MPa
D D1 D D1 D D1
50 310 100 165 125 165 125 165 125
65 185 145 185 145 185 145
80 330 200 160 200 160 200 160
100 360 220 180 220 180 220 180
125 250 210 250 210 250 210
150 380 285 240 285 240 285 240
200 395 340 295 340 295 340 295
250 420 395 350 395 350 405 350
300 445 400 445 400 460 400
350 430 505 460 505 460 520 460
400 565 515 565 515 580 515
450 450 615 565 615 565 640 565
500 500 670 620 670 620 715 650
