Synchronous Electro-Hydraulic Jack

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Synchronous Electro-Hydraulic Jack:

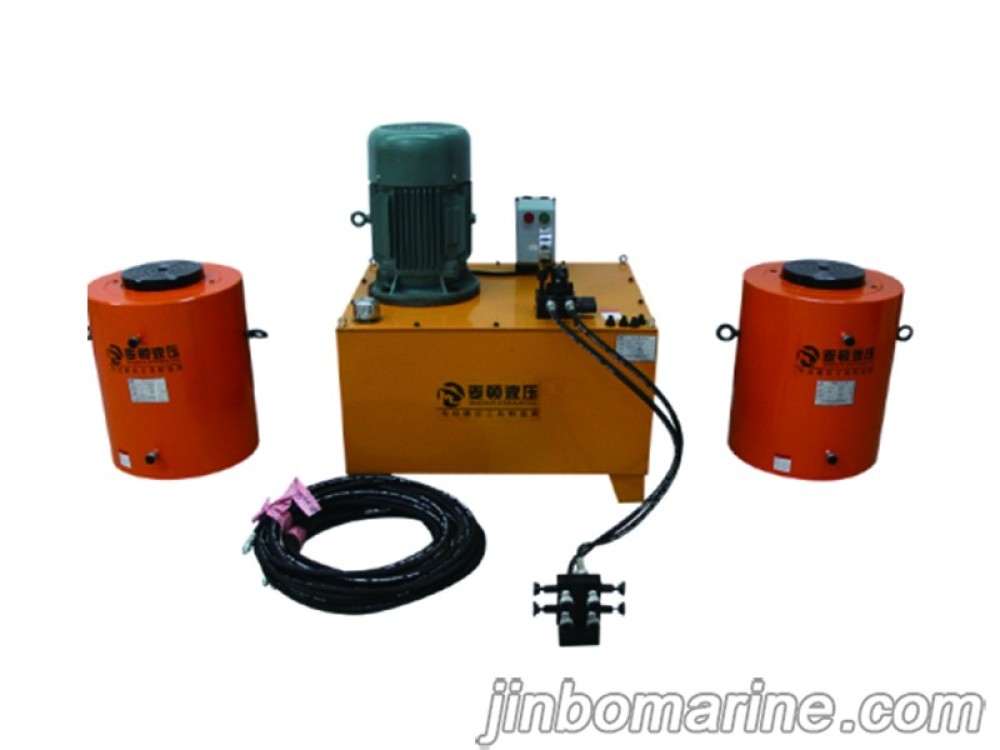

Synchronous Electro-Hydraulic Jack

Product features:

Double acting, hydraulic reset.

Piston rod is electroplated with 40Cr metal layer to increase surface brightness and hardness to prevent air corrosion.

The piston and guide ring are made of welded copper,which is more wear-resistant.

Special guide ring design can withstand eccentric loads up to 5%of the rated load capacity of the jack.

Equipped with a dust ring to prevent dust from entering the cylinder,all models include quick connectors and dust caps. Quick connectors contain layer protection.

There are as many as 13 seals inside the cylinder, which can effectively ensure the sealing performance and prolong the service life.

Model Capacity
T 		Height
mm 		Stroke
mm 		Max Height
mm 		Outside
mm 		Diameter
mm 		Diameter
mm 		Pressure
Mpa 		Weight
kg 		Electric
pump station
TDYG 50/100 50 225 100 325 127 70 100 63Mpa 35 50T-200T
Optional:
0.55kW
0.75kW
1.5kW
3kW
4kW
5.5kW
TDYG 50/160 285 160 445 39
TDYG 50/200 325 200 525 46
TDYG 50/300 425 300 725 48
TDYG 50/500 625 500 1125 140 63
TDYG 100/100 100 250 100 350 180 100 140 63Mpa 58
TDYG 100/160 310 160 470 63
TDYG 100/200 350 200 550 78
TDYG 100/300 450 300 750 96
TDYG 100/500 650 500 1150 194 130
TDYG 150/100 150 260 100 360 219 125 180 63Mpa 58
TDYG 150/160 320 160 480 69
TDYG 150/200 360 200 560 86
TDYG 150/300 460 300 760 103
TDYG 150/500 660 500 1160 245 255
TDYG 200/100 200 285 100 385 273 150 200 63Mpa 96
TDYG 200/160 345 160 505 103
TDYG 200/200 385 200 585 116
TDYG 200/300 485 300 785 161
TDYG 200/500 685 500 1185 221
TDYG 320/100 320 310 100 410 330 180 250 63Mpa 196 1.5kW
3kW
4kW
5.5kW
TDYG 320/160 370 160 530 240
TDYG 320/200 410 200 610 258
TDYG 320/300 510 300 810 311
TDYG 320/500 710 500 1210 352 456
TDYG 400/100 400 355 100 455 380 200 290 63Mpa 198 3kW
4kW
5.5kW
7.5kW
TDYG 400/160 415 160 575 231
TDYG 400/200 460 200 660 264
TDYG 400/300 555 300 855 367
TDYG 400/500 755 500 1255 395 456

Model Capacity
T 		Height
mm 		Stroke
mm 		Max Height
mm 		Outside
mm 		Diameter
mm 		Diameter
mm 		Pressure
Mpa 		Weight
kg 		Electric
pump station
TDYG 500/100 500 360 100 460 430 200 320 63Mpa 323 3KW
4kW
5.5kW
7.5kW
TDYG 500/160 420 160 580 330
TDYG 500/200 460 200 660 420
TDYG 500/300 560 300 860 581
TDYG 500/500 760 500 1260 599
TDYG 630/100 630 417 100 517 500 250 360 63Mpa 560 4kW
5.5kW
7.5kW
11kW
TDYG 630/160 477 160 637 633
TDYG 630/200 517 200 717 696
TDYG 630/300 617 300 917 898
TDYG 630/500 817 500 1317 1250
TDYG 800/100 800 488 100 588 560 300 400 63Mpa 896 7.5kW
11kW
TDYG 800/200 598 200 798 1040
TDYG 800/300 698 300 998 1380
TDYG 800/500 898 500 1398 1520
TDYG1000/100 1000 530 100 630 600 320 450 63Mpa 1286 7.5kW
11kW
TDYG1000/200 630 200 830 1332
TDYG1000/300 760 300 1060 1663
TDYG1200/200 1200 640 200 840 670 380 500 63Mpa 1647
TDYG1200/250 690 250 940 1752
TDYG1200/300 740 300 1040 1857
TDYG1200/400 840 400 1240 2069
TDYG1500/200 1500 670 200 870 750 400 560 63Mpa 2140
TDYG1500/250 720 250 970 2163
TDYG1500/300 770 300 1070 2390
TDYG1500/400 870 400 1270 2642
TDYG2000/200 2000 720 200 920 860 480 630 63Mpa 3088
TDYG2000/250 770 250 1020 3264
TDYG2000/300 820 300 1120 3440
TDYG2000/400 920 400 1320 3794
