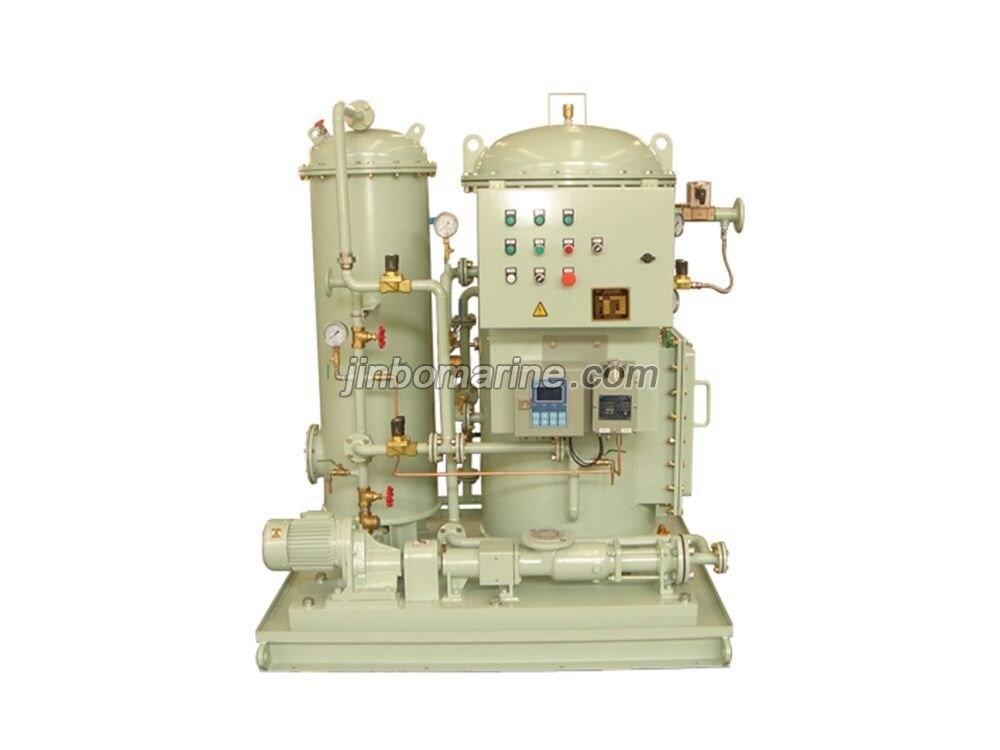

TBS-10 1m3/h Oily Water Separator

  • Category:Marine Oil Water Seperator
  • Standards:IMO MEPC.107(49)
  • Certificate:CCS,BV, ABS, GL, DNV certificate etc.
  • Packing Details:Standard Export Packaging
  • Delivery Time:30days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

TBS-10 1m3/h Oily Water Separator :

1、Greatly improve the ability to the oil-water separation,especially greatly enhanc the effectiveness of the treatment of emulsified oil by using primary gravitational and secondary coalescence separation.
2、Ensure thye safety of the treatment effect due to using the tertiary separation with new special filter material.
3、Prolong working life of coalescence filter element for its back wash structure.
4、Have the function of manual and automatic operation that can meet the requirements of UMS(unattended machinery space).
5、Easy to install,operate and maintain due to modularized and integrated design.

Technical data:

Model Capacity(m3/h) Dimension
LxBxH(mm)
TBS-05 0.5 1100X900X1280
TBS-10 1 1400X1150X1650
TBS-15 1.5 1500X1250X1750
TBS-20 2 1700X1450X1750
TBS-30 3 1900X1500X2060
