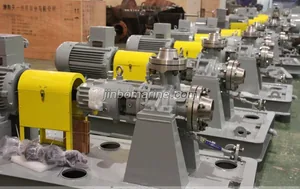

TCE TCF OH2 Petro Chemical Processing pump

Model: API610 OH2 according to API 610 standard

Size: DN25~400mm

Capacity: ~2600m3/h

Heads: ~250M

Temperatures: -80C degree ~ +450C degree

Design Pressures: ~5MPA(TCE) / ~7.5MPA(TCF)

Refinery, Coal mining, Petrochemical, Paper industry, sea water transportation, Air conditioner, offshore oil filed, Sugar Plants.

The TCE, TCF pumpa are single stage, horiztonal, radically split volute pump. The casing is centerline supporting and equipped with single radically impeller. Axially inlet and radically outlet.

The pump adopt wear ring and balancing hole to realize the hydraulic balance, shaft seal adopts API682 standard mechanical seal and flushing plan.

Standard piping design in accordance with API standard. Which can cooling the centerline supporting pump.

The suction flange rating pressure grade is the equal to discharge flange pumps rotation is clockwise viewed from motor end.
