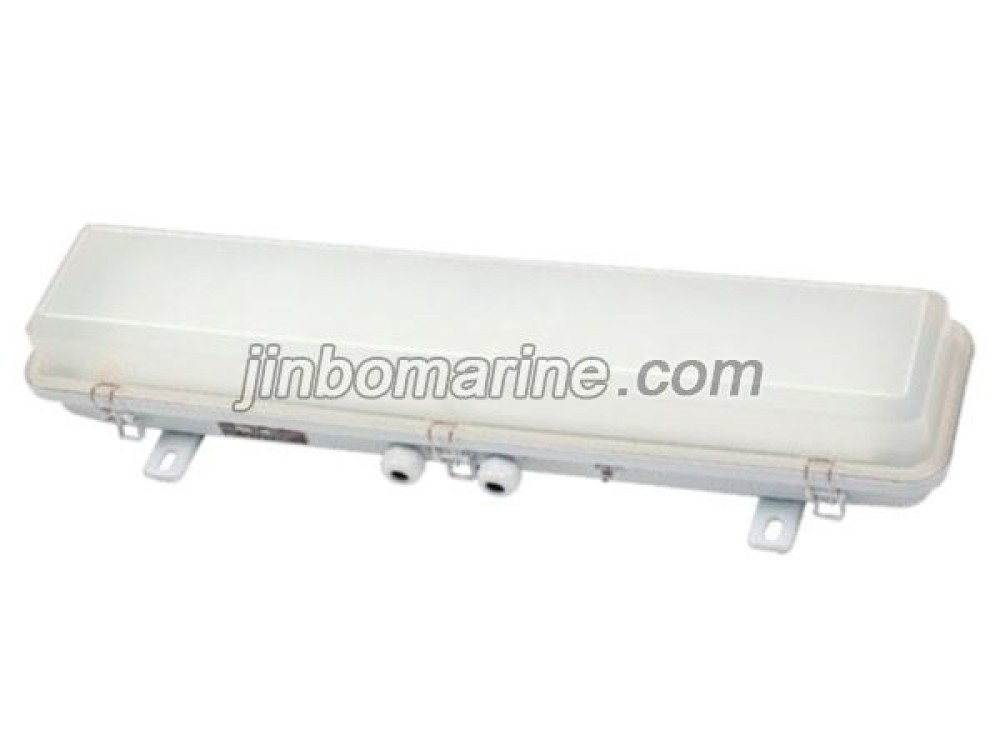

TCYA10-2AML LED Pendant Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

Application

Applied to illumination of water dripping, water spattering, water coagulating place in military ship and ship, such as dry cabin, deck, outer and weather deck etc.

Product Feature

1. Shell uses good quality steel plate.

2. Lampshade uses injection of AS with metal guard.

3. LED Light Source, light soft, no glare, supper high uniformity and visual comfort, color>=80%, light rate>70%, life time 30000h,energy saving 50%, new green environmental product, easy installation, general G12 lamp holder.

4. Environment temperature I s -20-40degree within the scope of work.

5. Protection class is IP56.

6. Outdoor light should e use stainless steel body.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.

Specification

Type Voltage Power Replacement Liminous Flux CT Material Size Weight
TCYA10-2AML 110/220V
50/60Hz

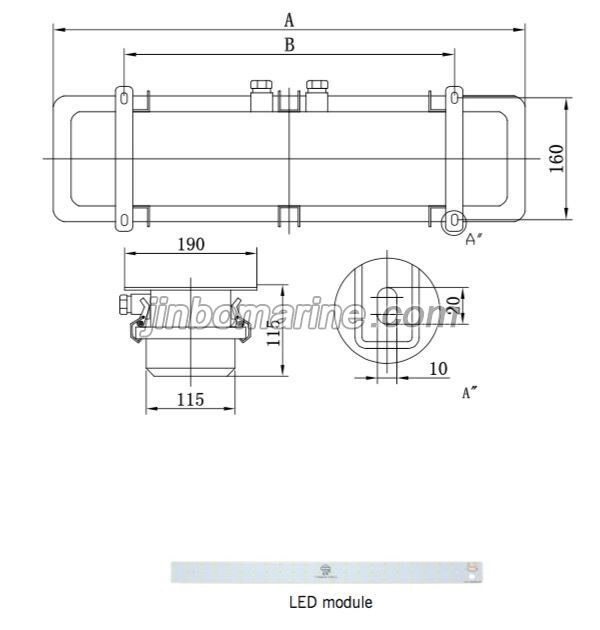

<=2x10W 2x18W Fluorescent Lamp 2050lm 3000-6500K Steel/SS 680x450 3.1kg
TCYA20-2AML <=2x20W 2x36W Fluorescent Lamp 4100lm 3000-6500K steel 1330x1100 4.9kg
