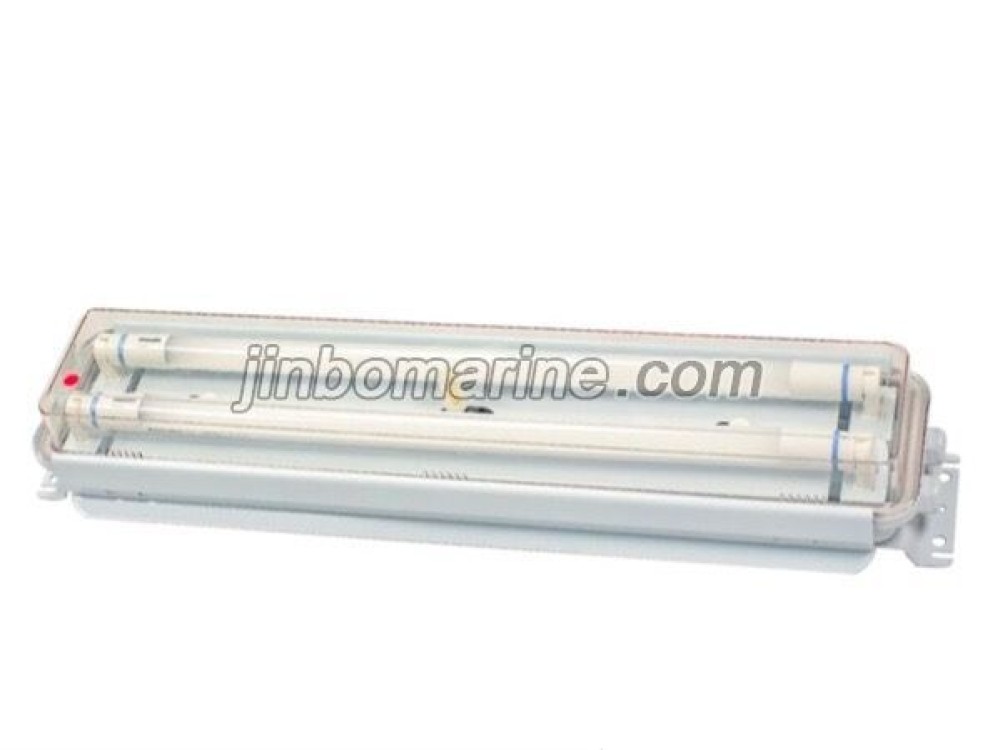

TCYA20-2 Fluorescent Ceiling Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

China TCYA20-2 Fluorescent Ceiling Light:

Application

Applied to illumination of water dripping, water spattering, water coagulating place in military ship and ship, such engine room, dry cabin, tunnel, pepeline and weater deck etc.

Protection Class

Application

IP20

Dry Living Cabin and dry control room

IP22

Sterring room, Refrigeator toom, emergency engine room, store room

IP34

Engine Room, boile room, steering gea room and aux machinery room

IP44

Bath roo, Machienry space, gallery and laundry

IP55

Engine room

IP56/IP66/IP67

Open Deck

IP68

Waterh deck and 20M underwater

Product Feature

1. Shell is good quality steel plate.

2.Lampshade adopts injection of AS with metal guard.

3. Environment temperature is -20-45 degree with the scope of work

4. Cable gland material: stainless steel, brass, bylon, protection class is IP56.

5. Stainless steel material should be selected for outdoor lighting.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.

Specification


Type Voltage Power Lamp Holder Material Size Weight
TCYA20-2 110/220V
50/60Hz
2x18W G13 Steel/SS 725x705 6.2kg
TCYA20-2E Steel/SS 6.4kg
TCYA40-2 2x36W Steel 1365x1335 10.1kg
TCYA40-2E Steel 10.5kg
