TE5000 Mini Differential Pressure Gauge
- Category:Marine Pressure Gauge
- Delivery Time:5 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

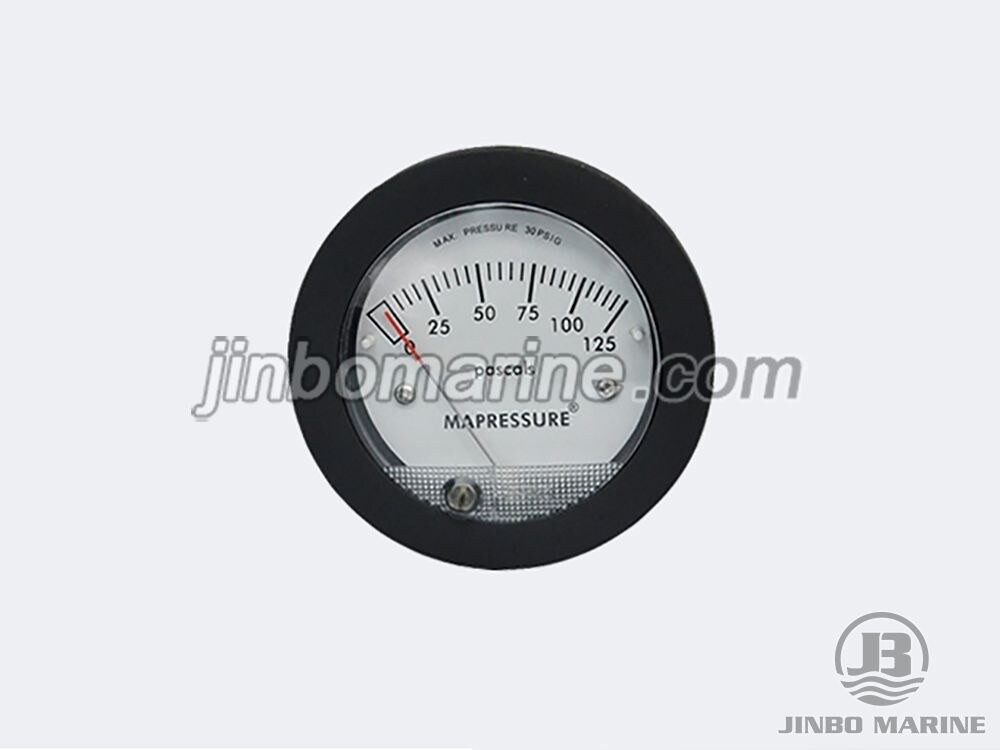

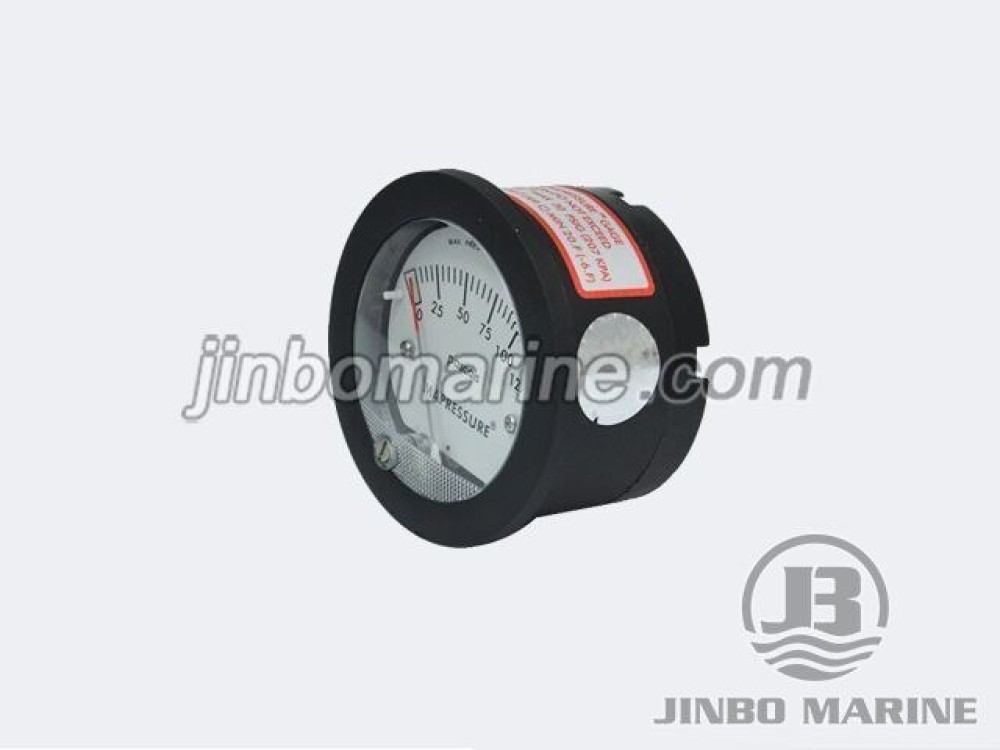

China TE5000 Mini Differential Pressure Gauge:
TE5000 Mini Differential Pressure Gauges are typical of the concise structure, small size, lower energy consumption and high accuracy. This product is fully applicable to any occasion. The shell is made from mineral and Glass-filled Nylon. And the lens is made from polycarbonate. The gauges can work under heavy pressure, blast, and the maximum pressure can be up to 30 pound/ square inch. 2.067 mb. When pressure is too great, the rupture disk which is connected to diaphragm can protect the product.
Specification:
| Size | 2-29/32 inch (73.82mm) × 2-7/16 inch (61.93mm) |
| Weight | 6 oz (170.1g) |
| Rated total pressure | Rated total pressure: 50 pound/ square inch(3.445 milliBar) |
| Accuracy | ±5% of FS at 70°F (21.1°C) |
| Connections | Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional) |
| Housing | Glass filled nylon; acrylic lens |
| Temperature Limits | 20 to 120°F (-6.67 to 48.9°C). |
| Paint | Black |
| Standard fitting | 2pcs 4-40×1-5/8 inch construction bolts |
| 2pcs 4-40 hexagonal nuts | |
| 1pcs 0．050 inch hexagonal spanner | |
| 1pcs bracket of panel mounting | |
| Specifications | 125Pa, 250Pa, 500Pa, 750Pa, 1KPa, 2KPa. |
