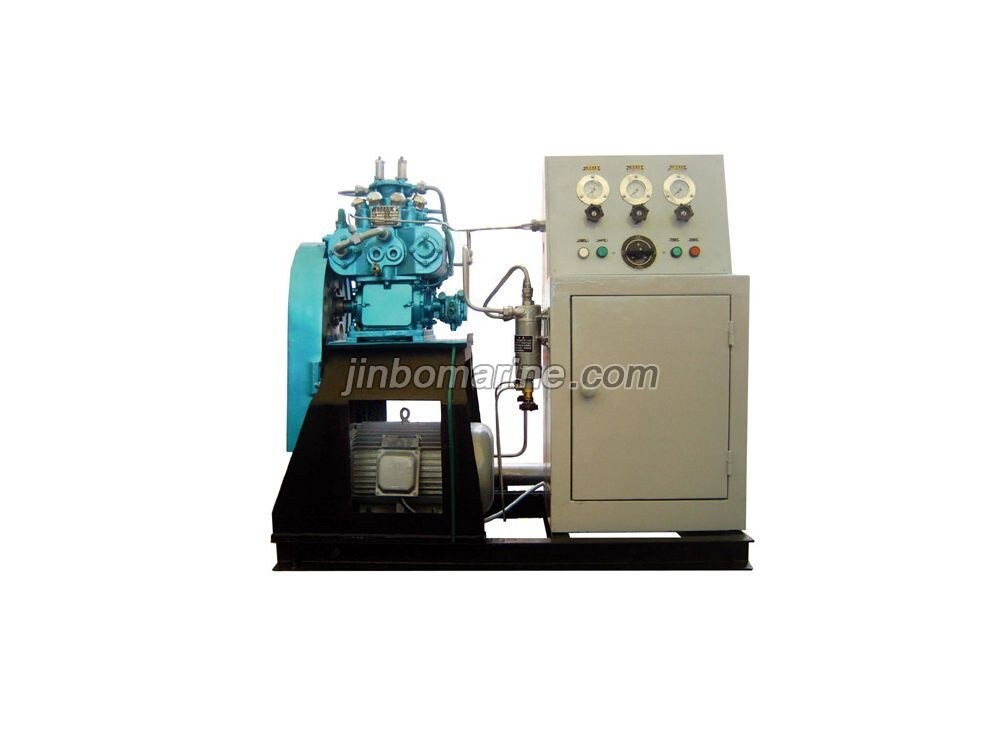

Three-stage Compression Water-cooled Medium Pressure Marine Air Compressor
- Category:High Pressure Water Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Three-stage Compression Water-cooled Medium Pressure Marine Air Compressor:
| Compressor type | 1-0.27/150 | CZ-0.42/150 | ||
| Type | Vertical, water-cooled, three-stage compression | |||
| Number of cylinders | 3 | |||
| Cylinder diameter | Level 1(mm) | 128 | ||
| Level 2(mm) | 110 | |||
| Level 3(mm) | 25 | |||
| Piston stroke(mm) | 40 | |||
| Pressure Rating (MPa) | 15/20 | |||
| Rotation Rating (r/min) | 1000 | 1500 | ||
| Gas displacement(m3/min) | 0.27(16.2m3/h) | 0.42(25.2m3/h) | ||
| Shaft power(kw) | 7 | 9.5 | ||
| Suction filtration | Mesh type | |||
| Lubricating System | Splashing | |||
| Crankcase capacity(L) | 0.6 | 1.5 | ||
| Quantity of Cooling Water (m3/h) | 0.6 | 0.9 | ||
| Rotation direction of crankshaft | Counterclockwise (see) from the flywheel end | |||
| Method of Driving | Belt drive or direct drive | |||
| Type of Unloader | Manual operation | |||
| Motor | Type | Y160M-6-H | Y160M-4-H | |
| Rated power(kw) | 7.5 | 11 | ||
| Rated speed(r/min) | 970 | 1460 | ||
| Voltage/Frequency(V/HZ) | 380/50 | |||
| Shape size (mm) | 780×650×1140 | |||
| weight(kg) | 390 | |||
