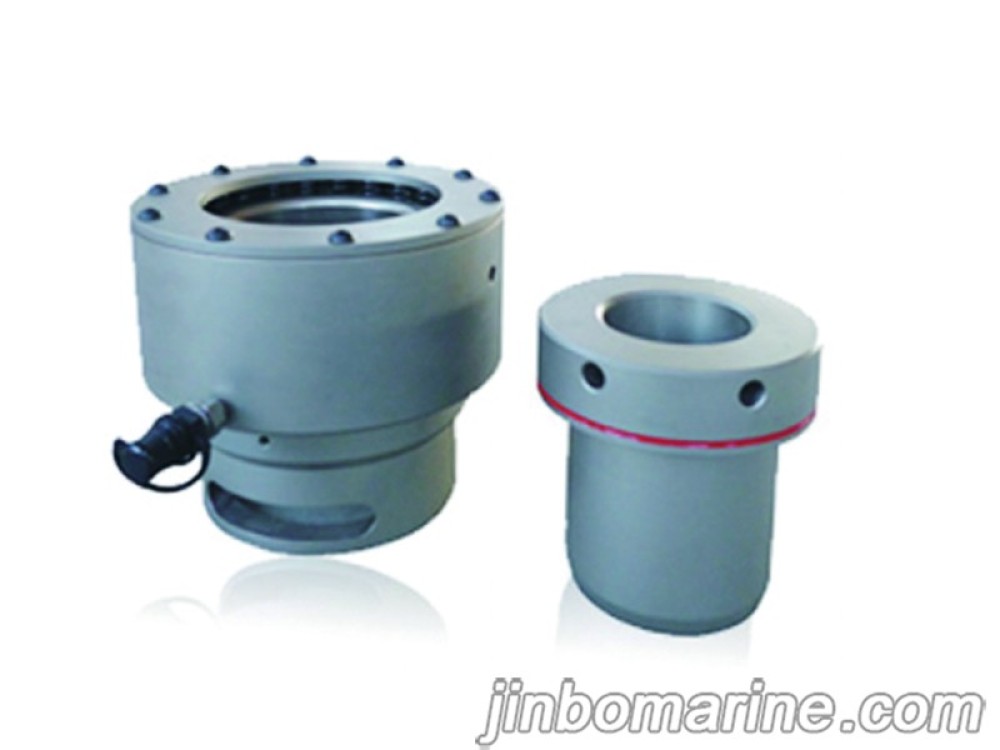

TSD Series-Single Stage Hydraulic Bolt Tensioner

Maximum service pressure :150MPa.

Design of automatic return mechanism.

Ultra red warning line to ensure operator safety.

The bolts of different specifications can be pre loaded or loosed by the same tensioner, but the drawing heads and the sockets must be replaced.

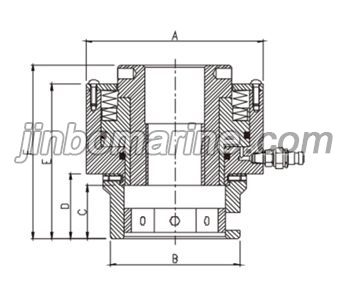

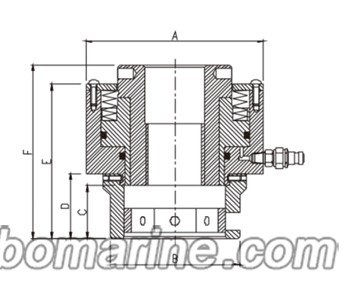

Model Fit Bolt Maximum Load
(KN) 		Size (mm) Stroke
(mm) 		Weight
(kg)
A B C D E F
TSD0 M20 307 109 55 23 25 111 128 8 5
M22 60 25 27 113 130
M24 66 27 29 115 132
TSD1 M24 486 109 74 27 29 120 138 8 7
M27 77 30 32 123 141
M30 80 33 35 126 144
M33 85 36 38 129 147
M36 90 39 41 132 150
TSD2 M33 814 132 90 36 44 135 150 8 10
M36 96 39 47 138 153
M39 98 42 50 141 156
M42 105 45 53 144 159
TSD3 M39 989 150 110 42 42 136 450 10 15
M42 113 45 45 140 155
M45 114 50 50 144 161
M48 118 52 52 146 163
TSD4 M52 1413 174 132 55 56 154 174 10 20
M56 135 59 60 158 178
TSD5 M56 1649 198 135 59 60 161 179 12 25
M60 143 64 64 165 183
M64 150 68 68 169 187
M68 158 72 72 173 191
TSD6 M72 2131 222 165 76 76 184 207 12 35
M76 170 80 80 188 211
TSD7 M76 2544 252 170 80 80 194 221 12 50
M80 175 85 85 197 224
M85 190 90 88 199 226
M90 205 95 95 209 236
TSD8 M95 3101 282 215 100 100 214 243 12 65
M100 235 105 105 219 248
TSD9 M105 3793 318 240 110 110 224 254 12 85
M110 248 115 118 234 264
M115 260 120 120 234 264
TSD10 M115 4936 360 260 120 120 261 297 12 110
M120 270 125 125 266 302
M125 286 140 130 271 307
