Type D Ceiling Panel

Model Thickness Fire class Core material
T25D 25mm B-0 rock wool
T75DXY 75mm B-15 rock wool

Main Specification

Table 1

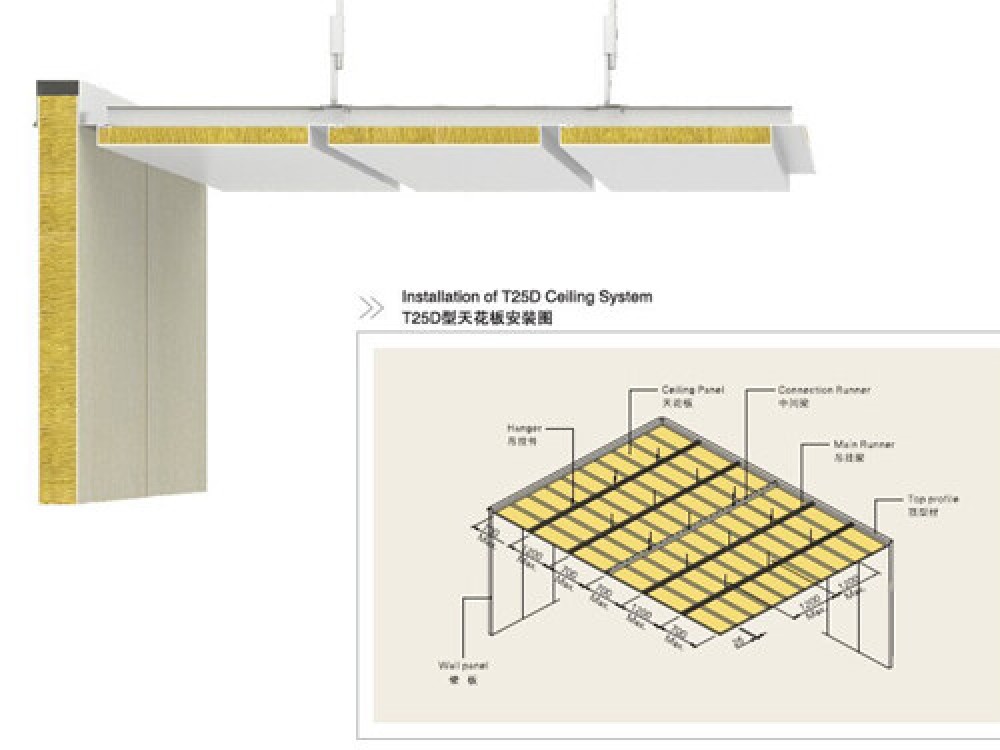

Type T25D
Fire class B-0
Weight 7.9kg/m2
Sound reduction --
Thermal transmittance 1.36Kcal/m2h°C
Core material Rock wool 80kg/m3
Surface finish PVC film(150μ,low flame spread) or galvanized steel
Dimension 25mm( t )×300mm( w )×length (max.3900mm)
Tolerances Thickness0-1×Width0-1×Length±3

Table 2

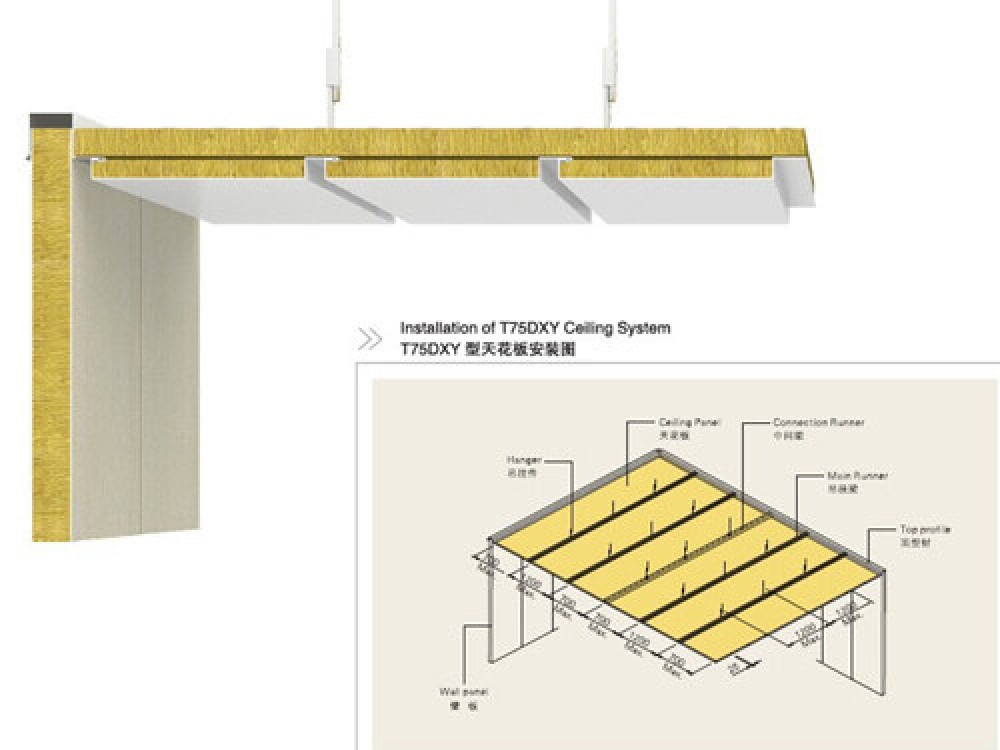

Type T75DXY
Fire class B-15
Weight 12.7kg/m2
Sound reduction 0.85
Thermal transmittance 0.40Kcal/m2h°C
Core material Rock wool 80/150kg/m3
Surface finish PVC film(150μ,low flame spread) or galvanized steel
Dimension 75mm( t )×300mm( w )×length (max.3900mm)
Tolerances Thickness0-1×Width0-1×Length±3
