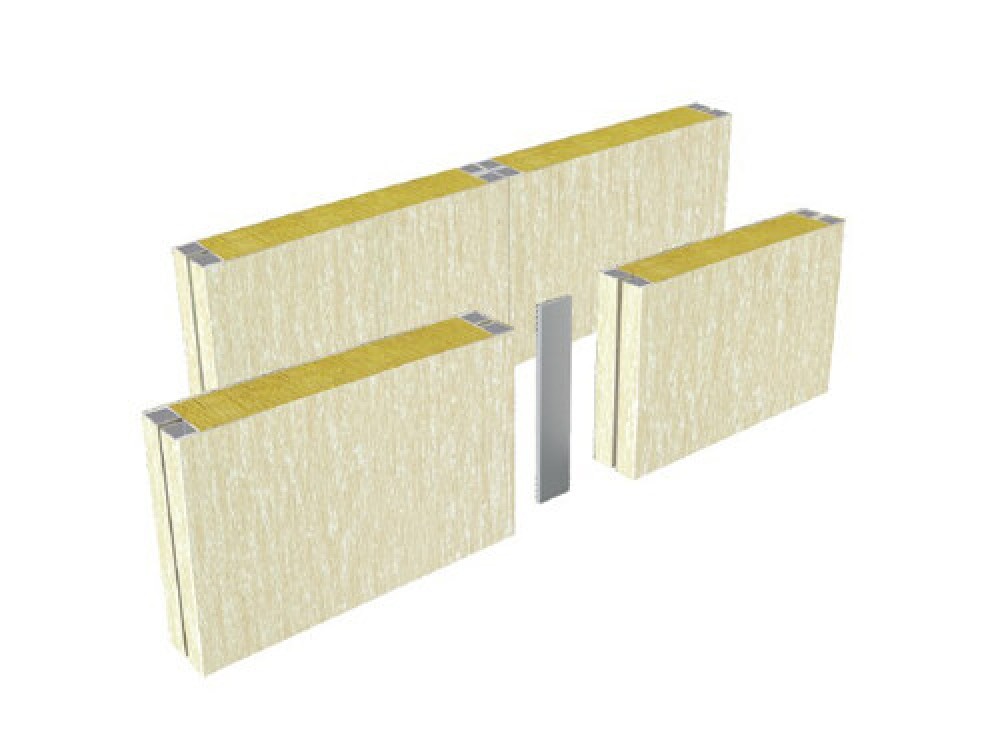

Type M Wall Panel
- Category:Wall Panel
- Material:Galvanized/ Stainless steel plate with PVC film and rock wool
- Certificate:CCS, LLoyds
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Type M Wall Panel
| Model | Thickness | Fire class | Core material |
| B50M | 50MM | B-15 | rock wool |
| B25M | 25mm | B-15 | rock wool |
| B50M(II) | 50mm | B-30/B-15 | rock wool |
| B25M(II) | 25mm | B-15 | rock wool |
| B50MD(II) | 50mm | B-30/B-15 | rock wool |
| B50MD | 50mm | B-15 | rock wool |
| B50MG | 50mm | B-15 | rock wool |
Main Specification
| Type | B25M | B50M | |
| Fire class | B-15 | B-15 | |
| Weight | 15.0kg/m2 | 18.6kg/m2 | |
| Sound reduction | --dB | --dB | |
| Thermal transmittance | 1.13Kcal/m2h°C | 0.58Kcal/m2h°C | |
| Core material | Rock wool 150kg/m3 | ||
| Surface finish | PVC film(150μ,low flame spread) or galvanized steel | ||
| Dimension | 25/50mm( t )×550mm( w )×length (max.3500mm) | ||
| Tolerances | Thickness0-1×Width0-1×Length±3 | ||
