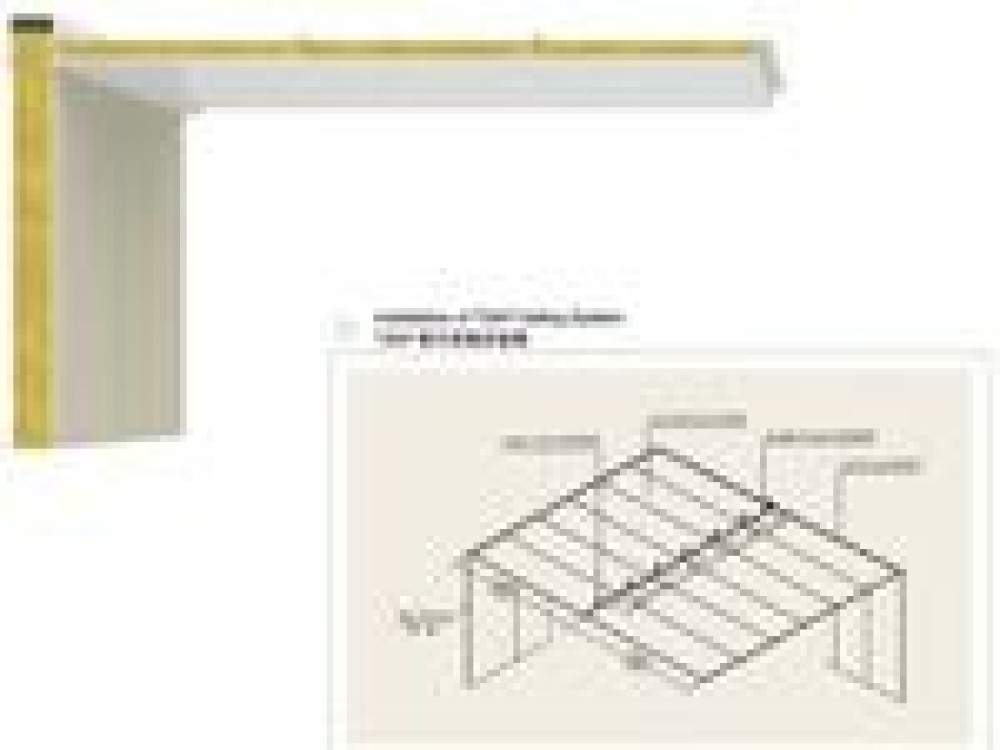

Type P Ceiling Panel
Type P Ceiling Panel Type T25P Fire class B-0 Weight ...
Loading product images...
PDF Datasheet
Type P Ceiling Panel
| Type | T25P | ||
| Fire class | B-0 | ||
| Weight | 8.4kg/m2 | ||
| Sound reduction | -- | ||
| Thermal transmittance | 1.36Kcal/m2h°C | ||
| Core material | Rock wool 80kg/m3 | ||
| Surface finish | PVC film(150μ,low flame spread) or galvanized steel | ||
| Dimension | 25mm( t )×300mm( w )×length (max.2400mm) | ||
| Tolerances | Thickness0-1×Width0-1×Length±3 | ||
