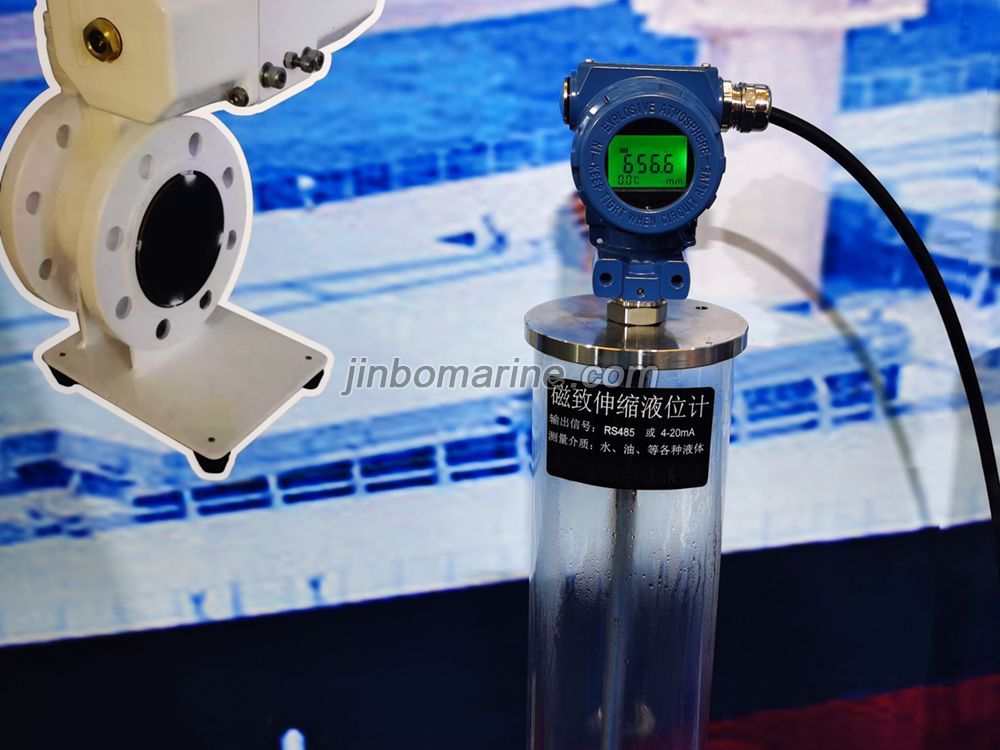

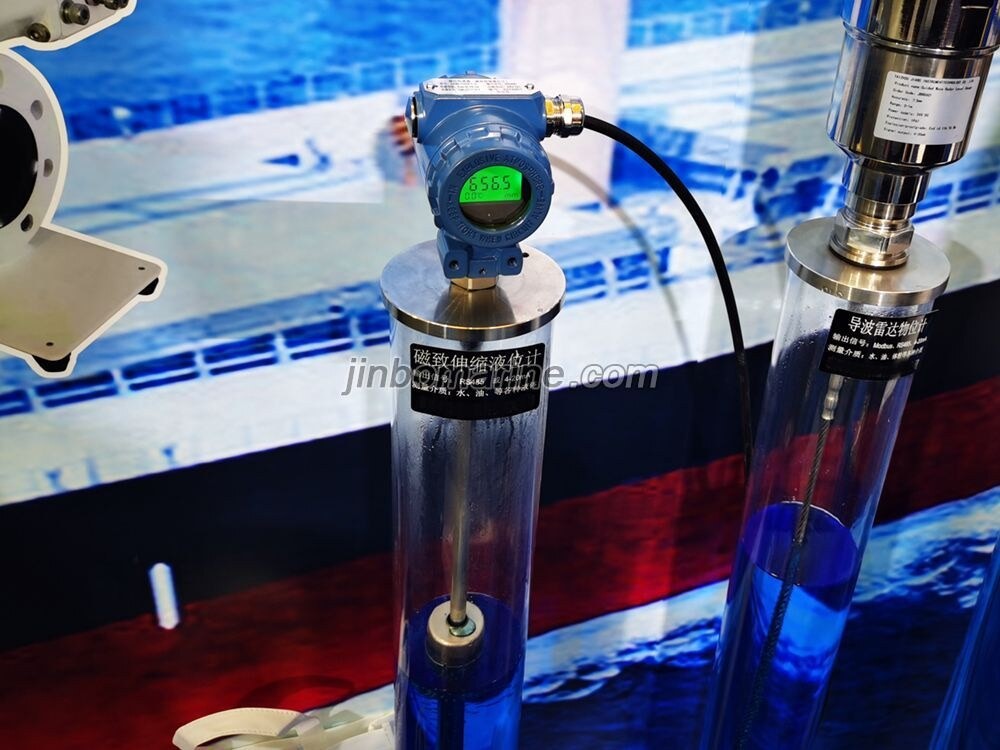

UHB-1000I-C-E Liquid Level Transmitter

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

The liquid level transmitter can be matched with level indicator,it can measure the medium of tank continuously. It is used to measure liquid level of medium of tanks in the ship or other industrial equipments.

UHB type level transmitter is consist of reel pipe type magnetic level rheostat and binary system R/I switching circuit.

It features high precision,stable,reliable,long lifetime.It adopt high property stainless steel shaft and changing resistance protect tube,features high anti corrosion,small volume,easy to install, it can work with indicate instrument and CRT device. It is suitable for use on vessel or other industrial area, measure all kinds of liduid level for liquid medium.

Working Principle.

Install several reed switchs install on a protect tube from different angle, when float float up and down follow the liquid level in the tank, the magnetic steel inside the float will operate relative reed switch to do switch action, output0~1KΩ or 4~20mA analog liquid level signal, and use cable to transmit the signal to level indicator ,indicate the liquid level of tank.

Main Technical Specification:

Connection flange Float Mounting type Medium gravity Output signal Applicable medium
Material Working temperature
GB2506-2005
PN1.0
DN100
SUS304
SUS316L
-20~100 Top mounting ≥0.8 DC24V
4~20mA
0~1KΩ
Water,seawater,fuel oil,diesel oil,lubrication oil

1. Measure accuracy: ±10mm

2. Measure range: 0~500 to 5000mm(optional)

3. Protection: IP66 / IP68

4. Nominal pressure: 1.0Mpa

5. Power voltage: DC24V±10%

6. Ex. mark:Ex ia II CT4-T6 Ex d II CT4-T6
