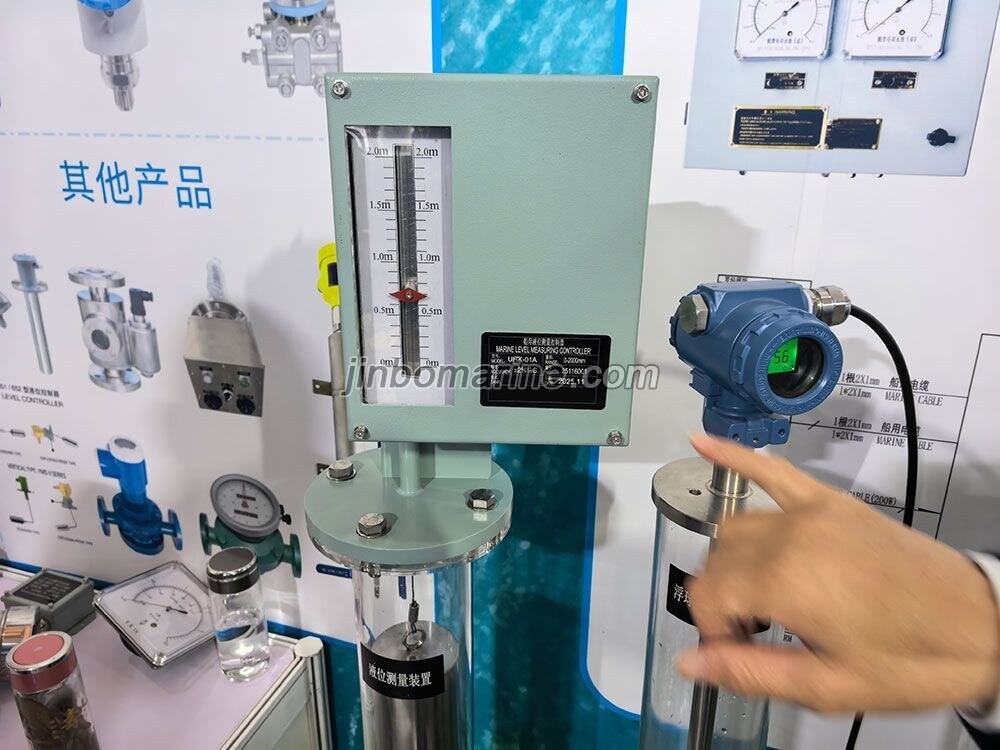

UHK-01A Level Measuring Controller

It have both liquid level measurement and liquid level alarm function. With compact structure ,safe and reliable,it suitable for liquid level measurement display and alarm when high level and low level.

Measure range: 0~0.5,0~1.0,0~2.0,0~3.0,0~4.0m

Measure accuracy: ±2% F.S

Switch type:SPST(2 channel set,independent output)

Maximum contact capacity: 10W or 10VA

Maximum close current: 0.5A

Maximum working voltage: 125A AC or 100V DC

Protection: IP66

Ex.mark: Ex ia II C T3~6
