UHZ-57-A Magnetic Turnover Plate Level Gauge

UHZ-57-A Top mounting type magnetic turnover plate level gauge is&nbsp; suitable for liquid level indication of underground groove, pond , other containers which is not suitable for open hol...

Marine Level Gauge1 Photos ISO9001 Supplier
UHZ-57-A Magnetic Turnover Plate Level Gauge thumbnail 1

UHZ-57-A Magnetic Turnover Plate Level Gauge

Category: Marine Level Gauge
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

China UHZ-57-A Magnetic Turnover Plate Level Gauge:

UHZ-57-A Top mounting type magnetic turnover plate level gauge is suitable for liquid level indication of underground groove, pond , other containers which is not suitable for open holes from the side, its main material is stainless steel,it can replace glass tube/plate type level gauge completely. It adopt magnetic coupling theory. Due to the liquid medium isolated from indicator, so it features clear indication, easy to read,safe and reliable.

It can satisfy inspection from remote area if equip with other instruments.

Indication type: Red and white turnover column or turnover float, float tracking type.

Main Technical Data:

Measure precision:±1cm,±2cm(turnover column) . ±1cm(float type)

Measure range:0~400mm to 0~20000mm

Medium density:≥0.45g/cm³

Medium viscosity:≤0.02Pa.s (under medium working environment)

Working temperature:≤0.02Pa.s

Working Pressure:-100KPa-4.0MPa

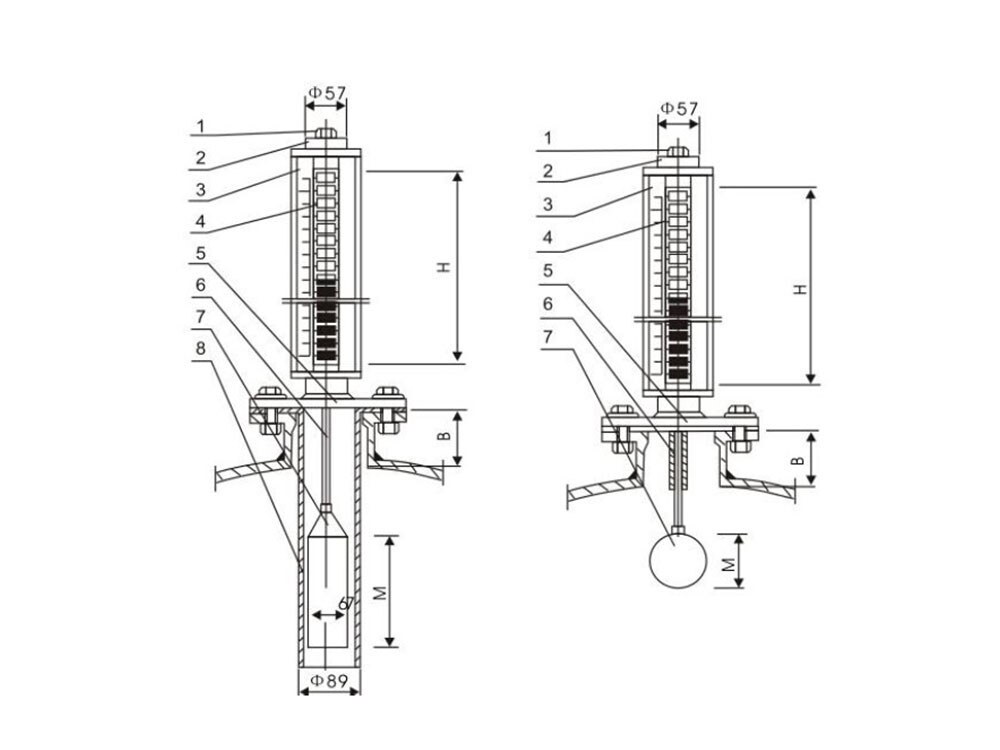

Structure:

1.Drain plug 2.Main duct 3.Indicator 4. Magnetic turnover column 5.Connection flange 6.Top bar/ Mandril 7.Float 8 Duct protection pipe 8.Storage tank neck height

M.Blind zone(mm)

H.Measure range(mm)

H=Full scale liquid level value-M
