ULG Tubular Type Glass Level Gauge

  • Category:Marine Level Gauge
  • Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
  • Delivery Time:About 7 to 10 days
  • Packing Details:Carton packaging.
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

General Description:

It features novel design,easy to install,it is used to measure the liquid level of low viscosity medium.

Main Technical Specification:

Model Max working pressure Working Temperature Suitable medium Conenction type
ULG 0.2Mpa 0~100℃ Oil,water Welded type(H type)
Flange type(F)CB/T 46-2007 DN20 PN16
Product Characteristic: when the glass tube breaks accidentally, the inside valve can close automatically without liquid leakage.

Nominal Length:

Center to center length L(mm) 300 350 400 450 500 550 600 650
700 750 800 850 900 950 1000 1100
1200 1300 1400 1500 1600 1700 1800 1900

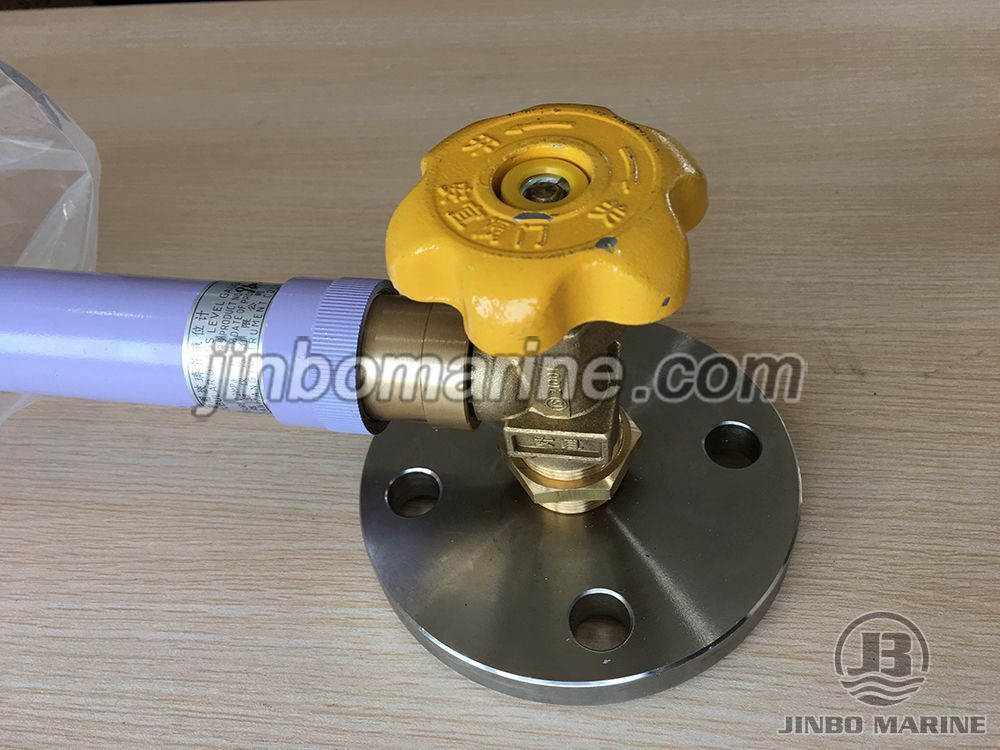

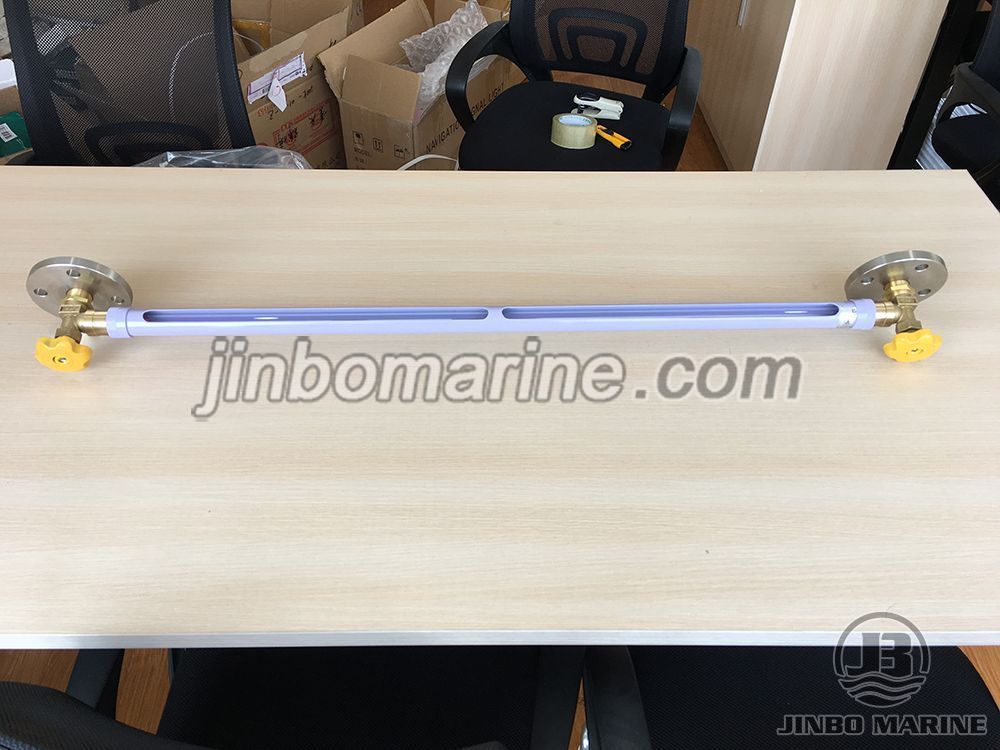

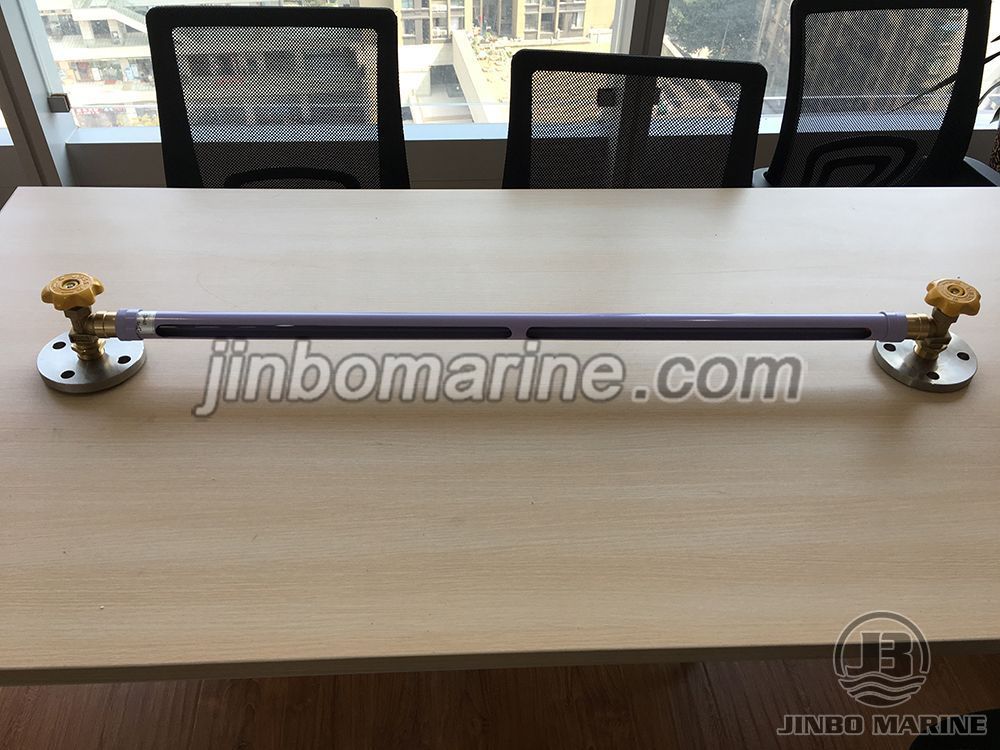

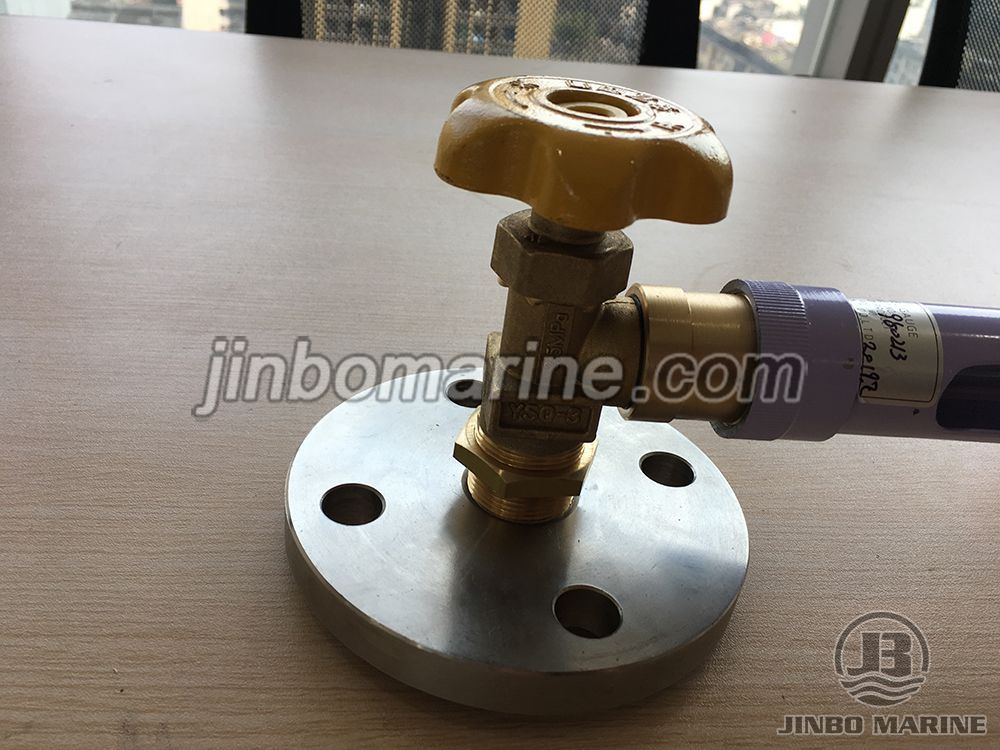

Photo:
