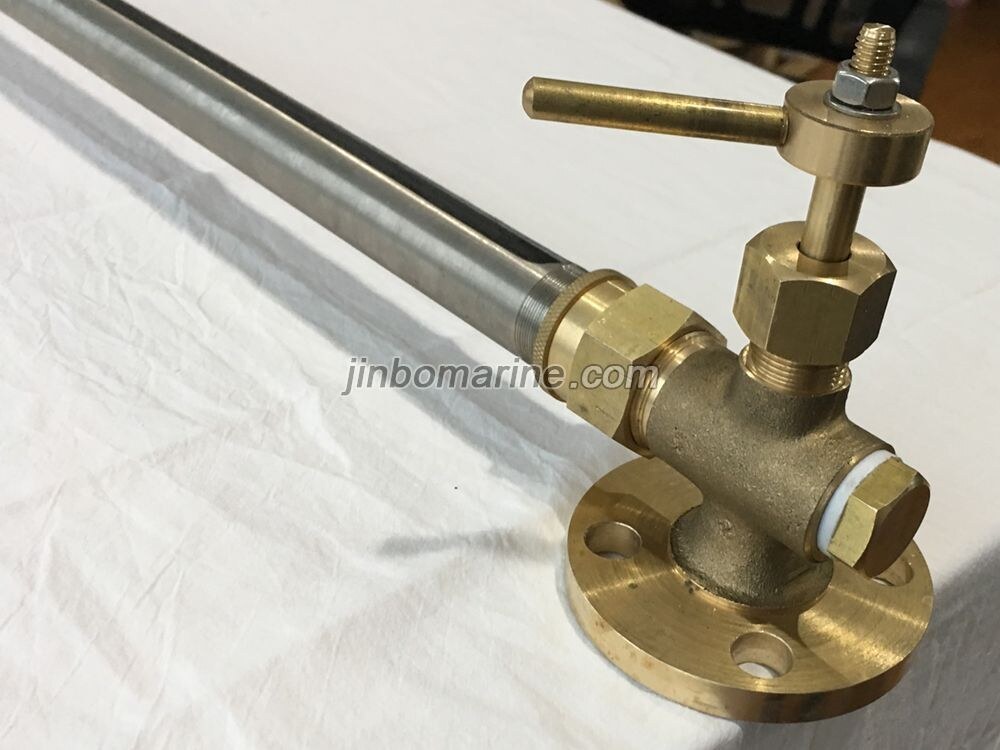

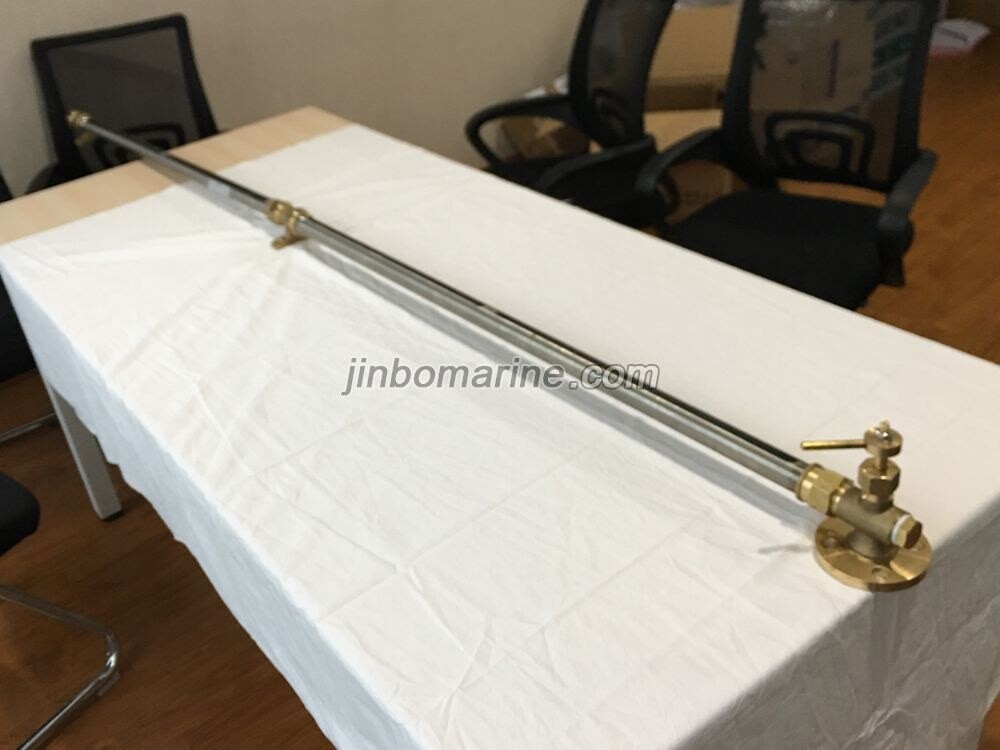

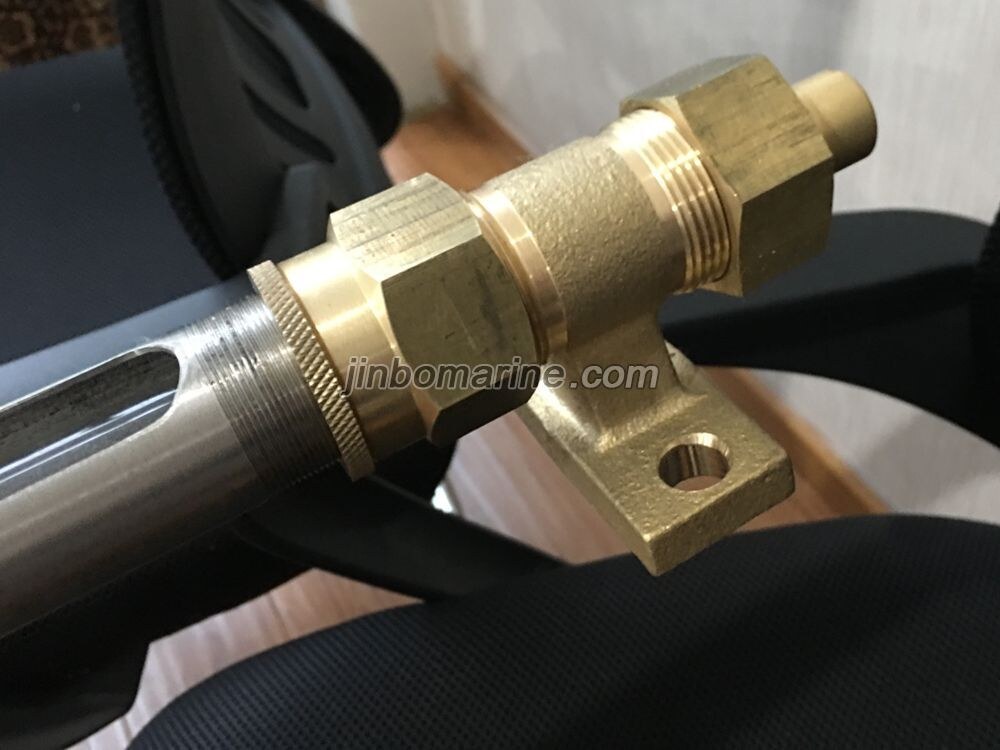

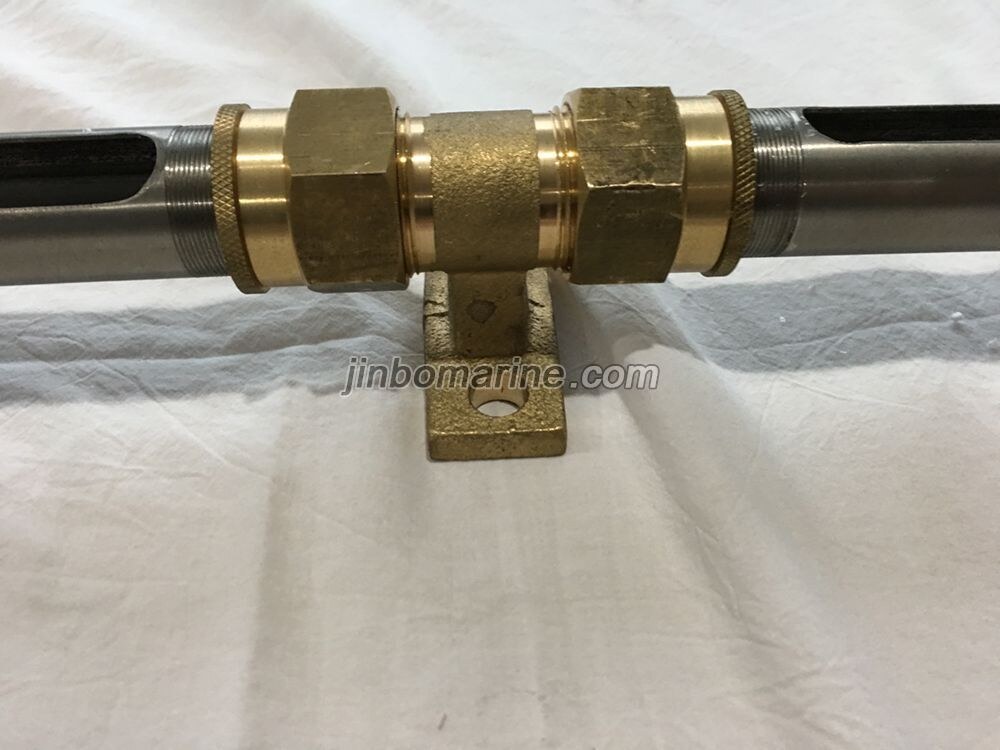

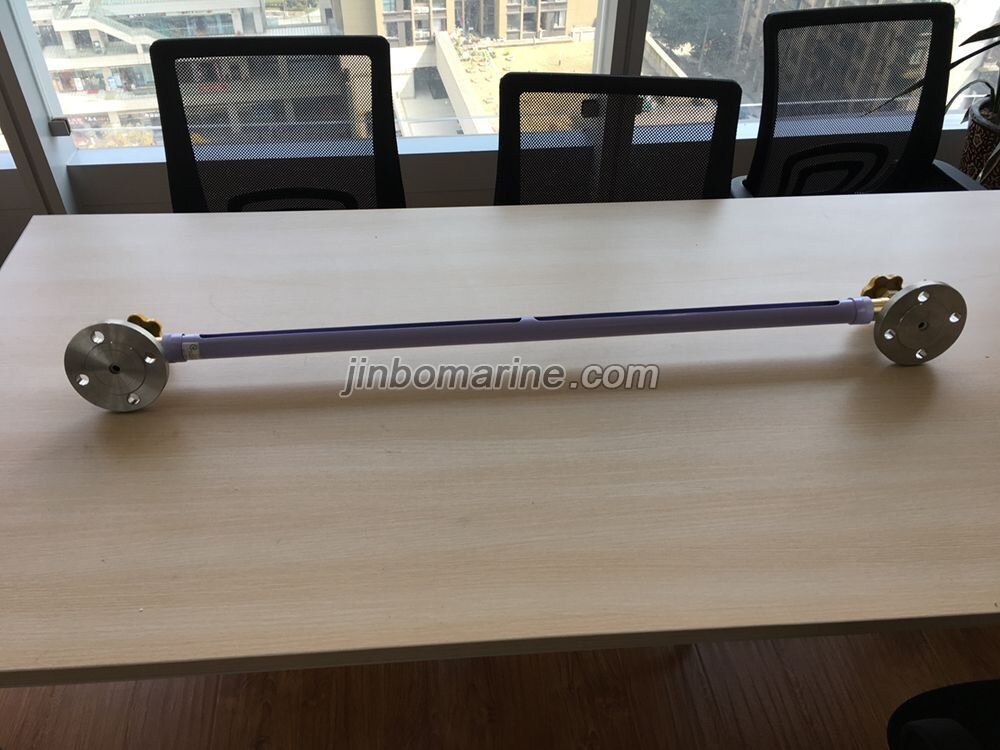

ULG Type Tubular Type Glass Level Gauge

  • Category:Marine Level Gauge
  • Standards:CB/T3665-1996
  • Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
  • Delivery Time:About 7 to 10 days
  • Packing Details:Carton packaging.
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Application:

ULG-01A,01B,01C Type tubular glass level gauges can be used to indicate and measure the liquid level of water tank.

ULG-01D,01E,01F Type tubular glass level gauges can be used to indicate and measure liquid level lof small water tank and light oil tank(less than 500L)

Standard Model And Technical Specification:

Model Connecting type Material Center to center length Nominal pressure Working temperature Connection size
Upper part Lower part Protector Glass tube Valve
ULG-01A
ULG-01AS
Breather pipe Self-closing valve Q235A GG-17 ZQSn5-5-5
H59-1
325~3765(mm) 0.3Mpa 0~100℃ JIS F 7211 5K 10A
JIS F 7212 10K 10A
(16 10A)
GB/T11693-2008 R type S type
PN1.6
DN20
ULG-01B
ULG-01BS
Straight-through hole
ULG-01C
ULG-01CS
Stop valve
ULG-01D
ULG-01DS
Breather pipe Stop valve
ULG-01E
ULG-01ES
Straight-through hole
ULG-01F
ULG-01FS
Stop valve

Self Closing Valve.
