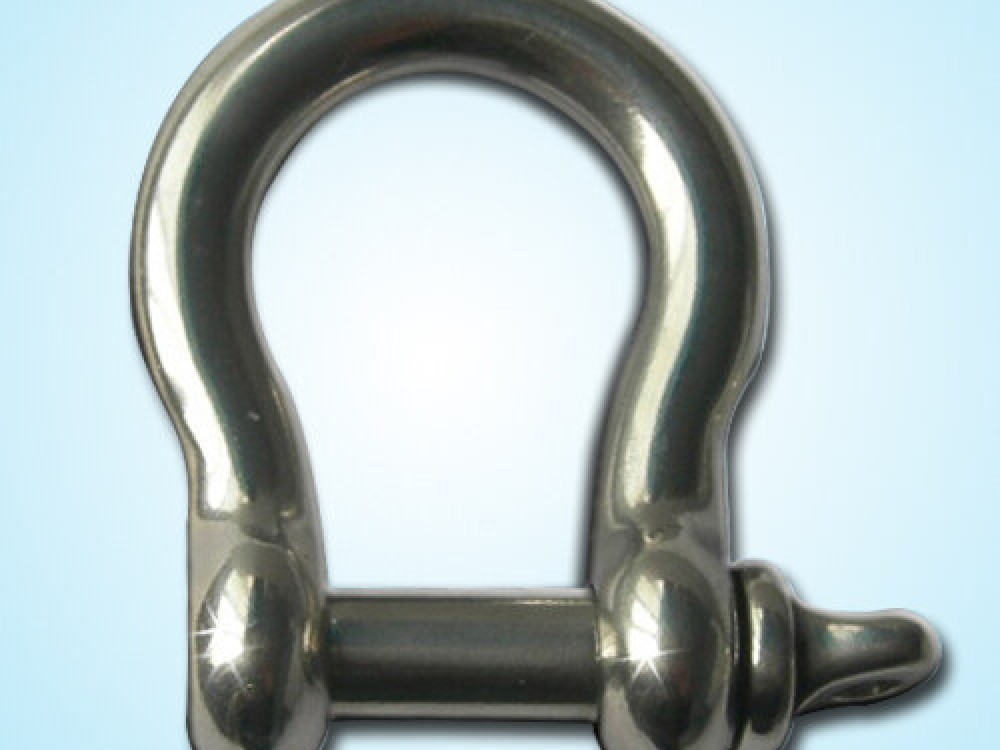

US Type Bow Shackle G209

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China US Type Bow Shackle G209:

SIZE A B C D E W.L.L
mm Eu Jis Eu Jis Eu Jis Eu Jis Eu Jis Eu Jis
4 16 14 8 8 8 8 4 4 4 4 80 50
5 20 16 10 10 10 10 5 5 5 5 100 80
6 24 22 12 12 12 12 6 6 6 6 200 100
8 32 27 16 16 16 16 8 8 8 8 320 200
10 40 31 20 20 20 20 10 10 10 10 520 320
12 48 40 24 24 24 24 12 12 12 12 800 520
14 56 46 28 28 28 28 14 14 14 14 1100 700
16 64 52 32 32 32 32 16 16 16 16 1500 800
18 72 58 36 36 36 36 18 18 18 18 2100 990
20 76 64 40 40 40 40 20 20 20 20 3000 1100
22 88 75 44 44 44 44 22 22 22 22 3500 1500
25 100 83 50 50 50 50 25 25 25 25 5000 2100
28 112 96 56 56 56 56 28 28 28 28 7000 3000
32 128 114 64 64 64 64 32 32 32 32 8000 3500
36 144 116 72 72 72 72 36 36 36 36 -一 4600
38 152 152 76 76 76 76 38 38 38 38 -一 5000
