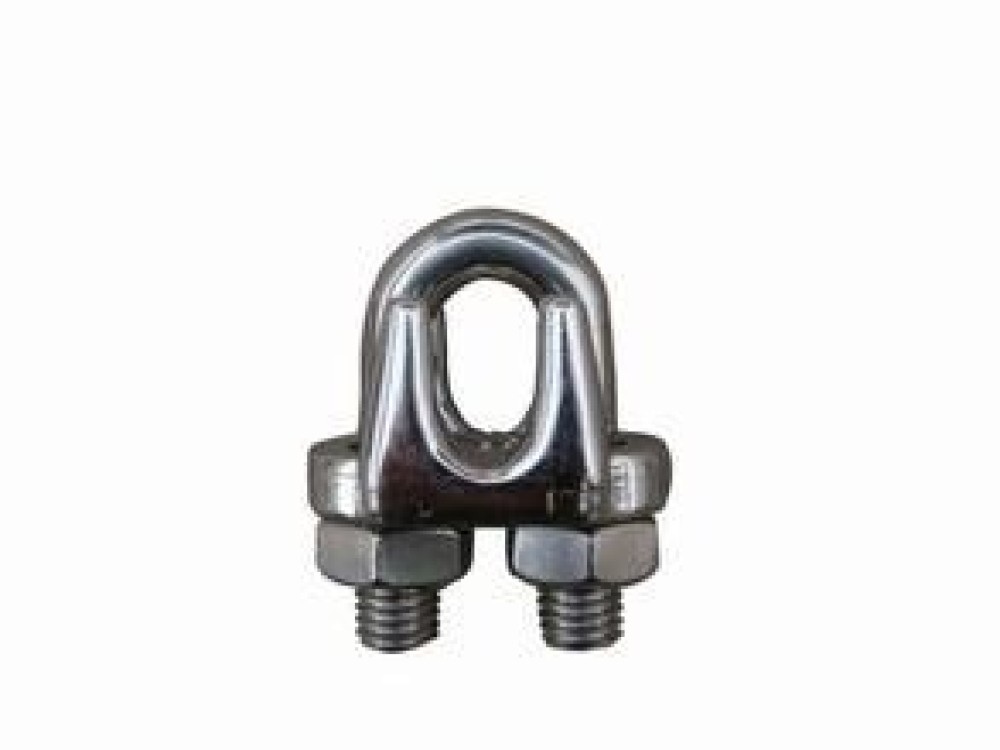

US Type Wire Rope Clips
- Category:Wire Rope Clip
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

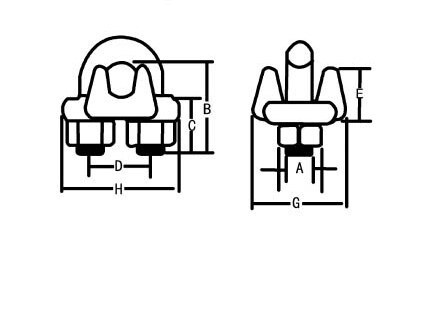

China US Type Wire Rope Clips:
|
SIZE mm |
A inch |
B mm |
C mm |
D mm |
E mm |
G mm |
H mm |
| 1/8 | 3/16 | 18 | 11 | 12 | 10 | 20 | 23 |
| 3/16 | 1/4 | 24 | 14 | 15 | 12 | 23 | 29 |
| 1/4 | 5/16 | 26 | 15 | 19 | 16 | 30 | 36 |
| 5/16 | 3/8 | 35 | 19 | 22 | 18 | 33 | 43 |
| 3/8 | 7/16 | 38 | 19 | 25 | 23 | 41 | 49 |
| 7/16 | 1/2 | 47 | 25 | 30 | 26 | 46 | 58 |
| 1/2 | 1/2 | 47 | 25 | 30 | 28 | 48 | 58 |
| 9/16 | 9/16 | 57 | 32 | 33 | 31 | 52 | 63 |
| 5/8 | 9/16 | 60 | 32 | 33 | 34 | 52 | 63 |
| 3/4 | 5/8 | 70 | 36 | 38 | 35 | 57 | 72 |
| 7/8 | 3/4 | 79 | 41 | 44 | 40 | 62 | 80 |
| 1 | 3/4 | 89 | 46 | 47 | 45 | 66 | 88 |
| 1-1/8 | 3/4 | 98 | 51 | 51 | 48 | 71 | 91 |
| 1-1/4 | 7/8 | 108 | 54 | 59 | 56 | 80 | 105 |
| 1-3/8 | 7/8 | 118 | 59 | 60 | 59 | 80 | 106 |
| 1-1/2 | 7/8 | 125 | 60 | 66 | 62 | 87 | 113 |
| 1-5/8 | 1 | 135 | 60 | 70 | 68 | 92 | 121 |
| 1-3/4 | 1-1/8 | 149 | 70 | 78 | 73 | 95 | 133 |
| 2 | 1-1/4 | 165 | 76 | 84 | 86 | 113 | 148 |
| 2-1/4 | 1-1/4 | 181 | 84 | 98 | 97 | 114 | 160 |
| 2-1/2 | 1-1/4 | 197 | 86 | 105 | 108 | 114 | 164 |
| 2/3/4 | 1-1/4 | 211 | 89 | 111 | 127 | 127 | 171 |
| 3 | 1-1/2 | 233 | 98 | 121 | 133 | 175 | 192 |
