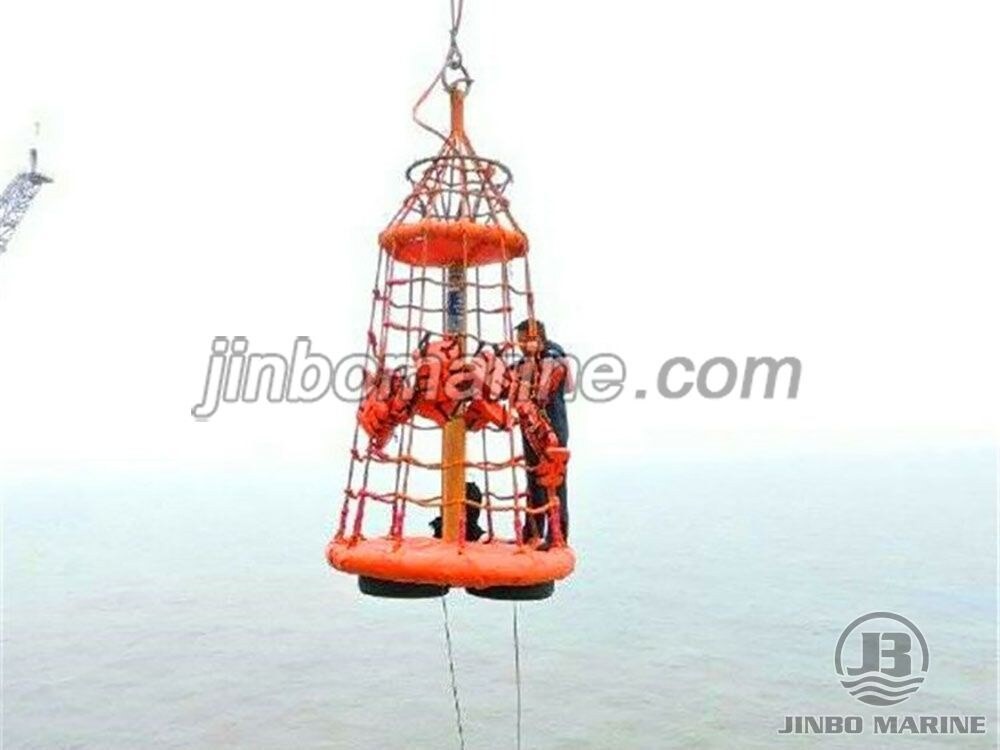

Vertical Type Personal Transfer Basket
- Category:Personal Transfer Basket
- Certificate:CE, ABS and KR .
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Vertical Type Personal Transfer Basket:
We have vertical type personal transfer basket and horizontal type peronsal transfer basket available.
Popular type is horizontal type personal transfer basket .
The volume of vertical type is very big ,the transportation cost is high.
Technical Data:
|
Horizontal Type |
Model | Height | Chassis diameter | Allowable Person |
Safe working load (KG) |
buoyancy (person) |
Sling material |
Weight (KG) |
Volume |
| HY-4 | 6320 | 1420 | 4 | 380 | 2 | Stainless Steel Wire Rope | 70 | 0.45 | |
| HY-6 | 10050 | 1600 | 6 | 570 | 3 | Stainless Steel Wire Rope | 95 | 0.65 | |
| HY-10 | 10050 | 1860 | 10 | 950 | 5 | Stainless Steel Wire Rope | 100 | 0.8 | |
| HY-18 | 10050 | 2500 | 18 | 1700 | 9 | Stainless Steel Wire Rope | 150 | 1.6 | |
| HY-(Ⅱ)-4 | 6320 | 1400 | 4 | 380 | 2 | High strength polypropylene | 80 | 0.65 | |
| HY-(Ⅱ)-6 | 10050 | 1600 | 6 | 570 | 3 | High strength polypropylene | 100 | 0.85 | |
| HY-(Ⅱ)-10 | 10050 | 1640 | 10 | 950 | 10 | High strength polypropylene | 120 | 1 | |
|
Vertical Type |
HYL-4 | 6320 | 1420 | 4 | 380 | _ | Stainless Steel Wire Rope | 250 | 5.5 |
| HYL-6 | 6320 | 1600 | 6 | 570 | _ | Stainless Steel Wire Rope | 280 | 6.5 | |
| HYL-10 | 6320 | 1640 | 10 | 950 | _ | Stainless Steel Wire Rope | 290 | 7 | |
| HYL-12 | 6320 | 1800 | 12 | 1140 | _ | Stainless Steel Wire Rope | 360 | 9.2 |
