WCB20 External Lubricating Gear Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

WCB20/1.2 External Lubricating Gear Pump

Application:

WCB series externa1 lubricating gear pump is a new type gear pump developed by our company according to the market demand.

It is manly used for transportation of high-pressure foam liquid without lubrication characteristic in affiliated equipment for fire fighting.

This pump provides such virtues as high pressure, anti corrosion, stable transportation of mediums, low vibration, low noise,good appearance and long service life etc.

It is applicable for transportation of corrosive mediums without lubrication function.

The applied temperature sha1l be not higher than 300C.

The pressure sha11 be not higher than 1. 2MPa.

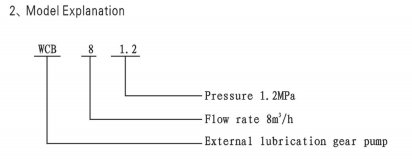

Model Port
mm
Capacity
m3/h
Differential
Pressure
MPa
Speed
r/min
Motor Power
KW
WCB8/1.2 φ65 8 1.2 970 7.5
WCB10/1.2 φ65 10 1.2 970 11
WCB15/1.2 φ80 15 1.2 970 15
WCB20/1.2 φ80 20 1.2 970 15
WCB25/1.0 φ80 25 1.2 970 18.5
WCB28/1.0 φ80 28 1.2 970 22
