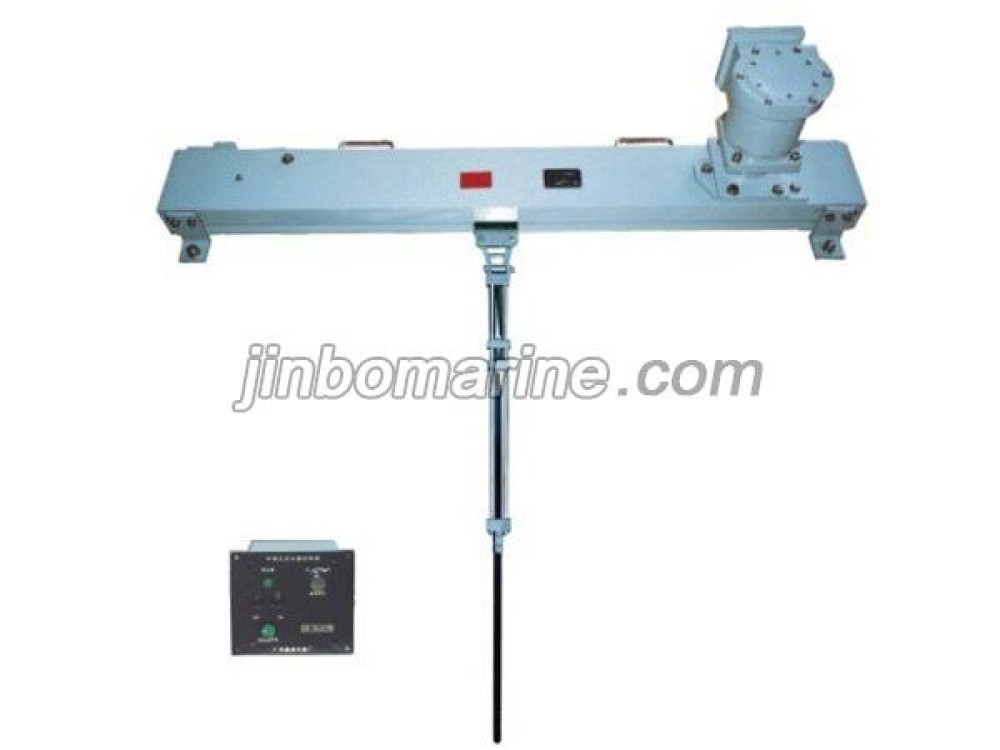

WGP Marine Horizontal Electrical Window Wiper

Request a Quote Not what you need, please send your RFQs via Email.

Details

Technical Specification

1. Power Supply: AC220V

2. Frequency:50HZ

3. Wiper Speed:0.5-1.2M/Sec

4. Consumed Power of Motor:<=250W

5. Consumed power of Heater: <=450W

6. Protection Grade: IP56

7. Outline Dimension of control box: Box 164x114x155mm, Faceplate:200x120x4

9. Weight: 33KGS

10.Optional: Heater, Waterworks, automatic resetting.

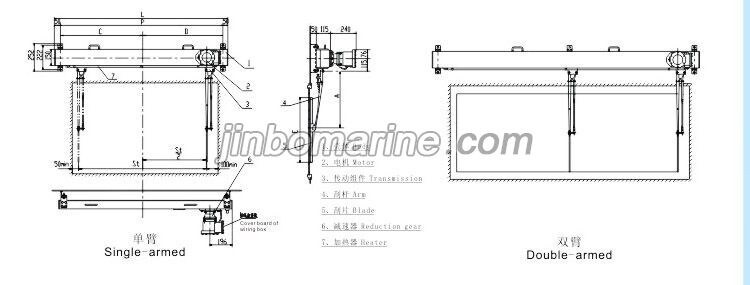

Type Body Length
(mm)
L
Wiper Stroke
(mm)
St
Mounting Distance(mm)
P
C Distance
(mm)
D Distance
(mm)
Wiper Arm Type Arm Length
(mm)
A
Blade Length
(mm)
E
WGP-1R 1500 1200 1400 654 746 Single-Armed 400-700 400-1000
WGP-1R 1500 1100 1400 704 696
WGP-2R 1350 1000 1250 604 646
WGP-3R 1200 900 1100 604 695
WGP-3R 1200 800 1100 554 546
