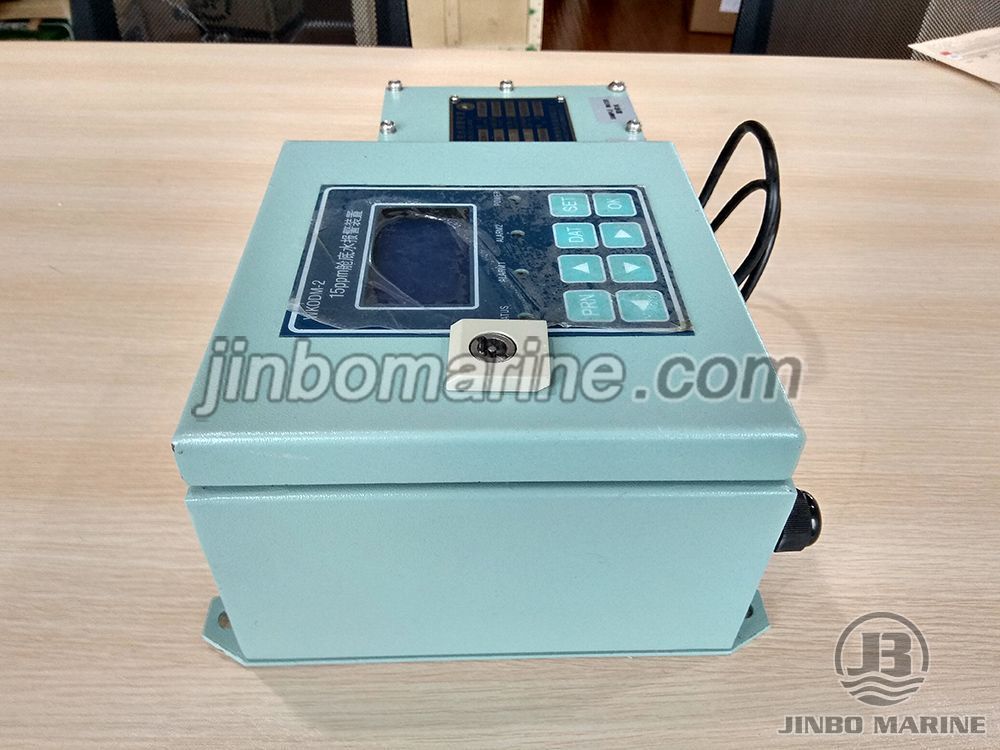

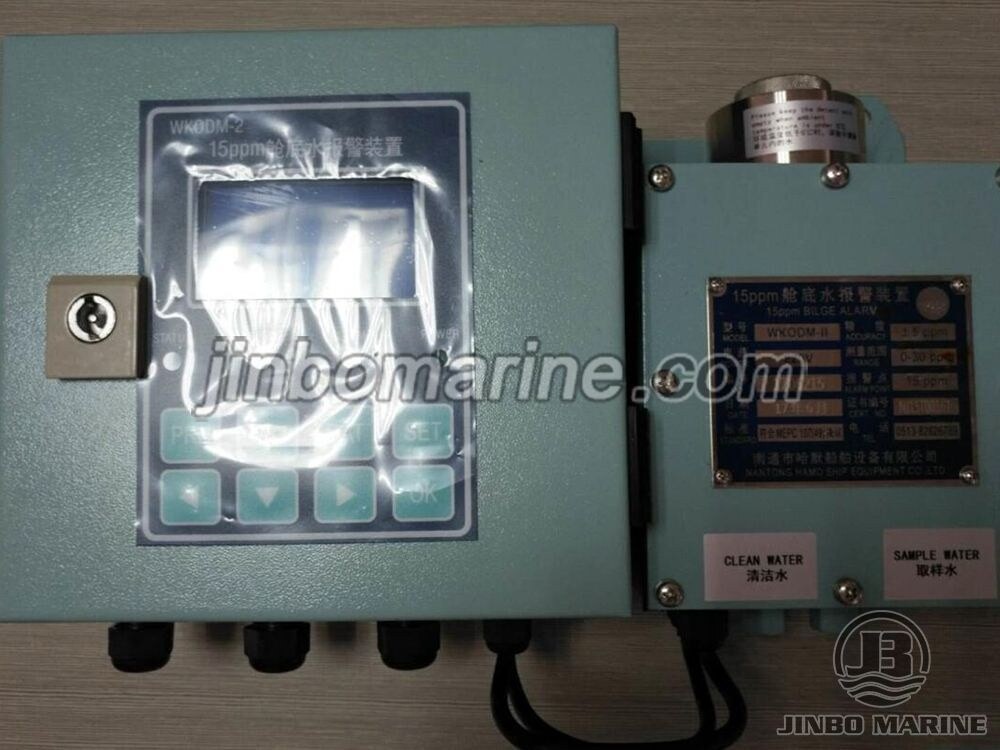

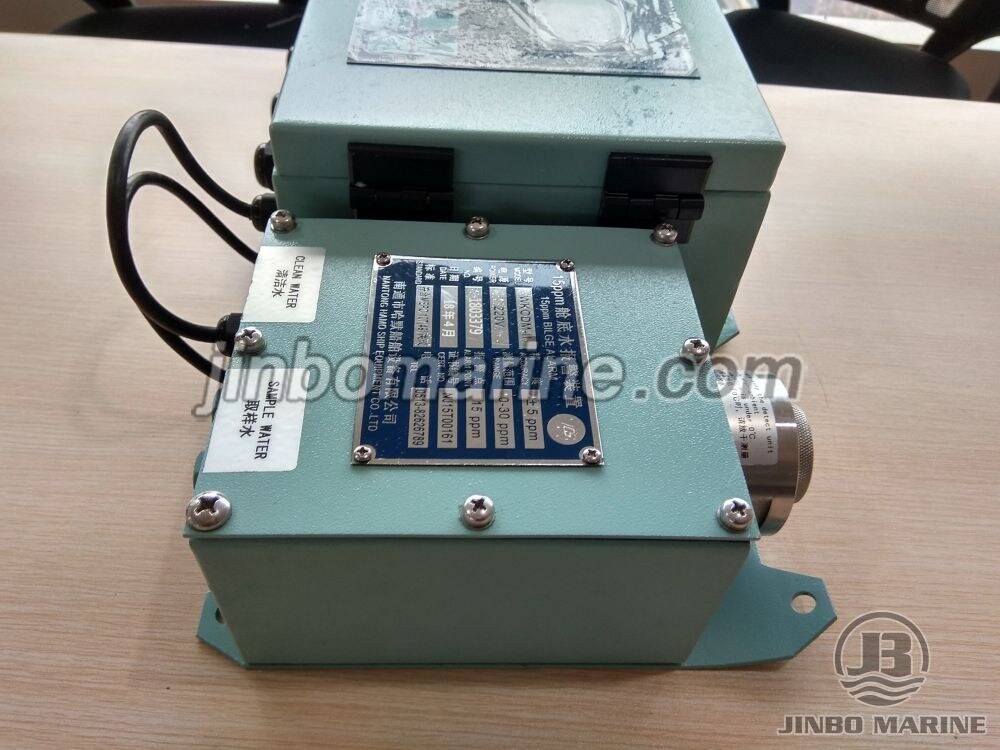

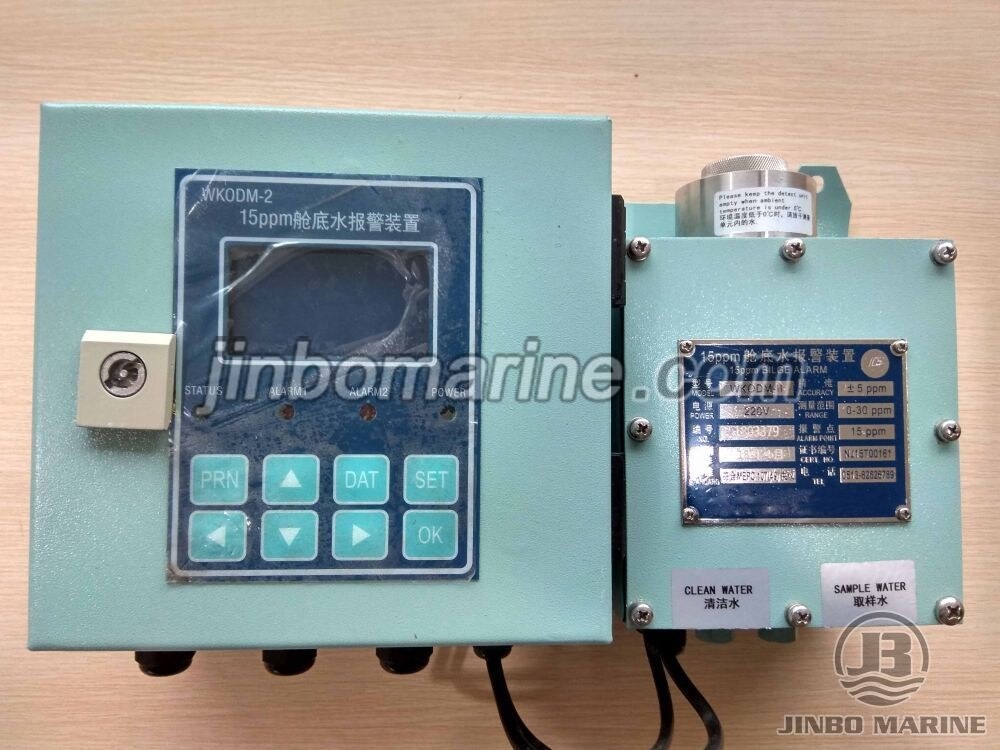

WKODM-2 15PPM Oily Water Bilge Alarm

Measurement range: 0 ~ 30ppm (50ppm);
Accuracy: + 5ppm. meets IMO MEPC.107 (49) requirements;
The alarm points can be adjusted between 1 and 2:0 to 15ppm (the factory is set to 15ppm).

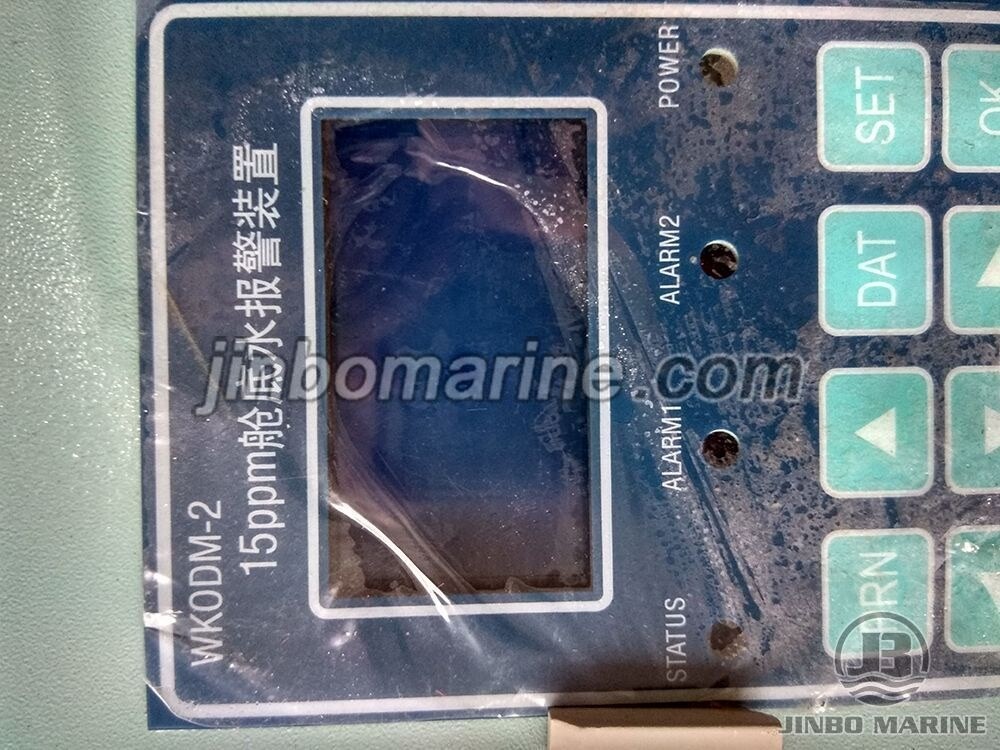

Alarm point 1 (prompt alarm): action lag time between 0 to 30 seconds adjustable (factory set to 5 seconds), red LED indication;
Alarm point 2 (control function): action lag time between 0-255 seconds adjustable (factory set to 15 seconds), red LED indication;
The form of alarm output: passive relay contact output, load capacity 3A/250VAC or 3A/30VDC;
Inlet pressure: 0.01 ~ 1MPa;
Power supply: 100V-240V AC50-60Hz;
Ambient temperature and humidity: temperature: 0 C ~ 55 C
Relative humidity: no condensation on the surface of <95%
Enclosure protection level: IP65

The measuring system adopts the scattering principle of the infrared light source which is commonly used in the world. When the infrared light emitted by the emitter passes through the flowing oil sewage, the oil particles in the sewage scatter the infrared light. Two infrared receiving tubes are installed at the same axis of the light source to test the transmission and scattering components of the infrared light after passing through the oil and water, and then the oil particles are transported. The output signal is sent to CPU after filtering, amplification and A/D transform.
