XZL350 Model Inspiration Strainer Filter

This strainer is applicable for oil pipelines of diesel generator and other equipment for filtering lubricant, fuel oil and heavy oil, operation pressure of which is recommened not to exceed 0.8Mpa, working temperature I t≤85℃ IIT≤135℃ ≤200℃, with range of filtering precision avaliable for option between20-200mesh/inch. it's designed with top inlet and botton outlet, all filtered substances are intercepted inside the mesh cage, which is easy to clear and clear. magnet maybe equipped for adsorption of ferromagent upon request.

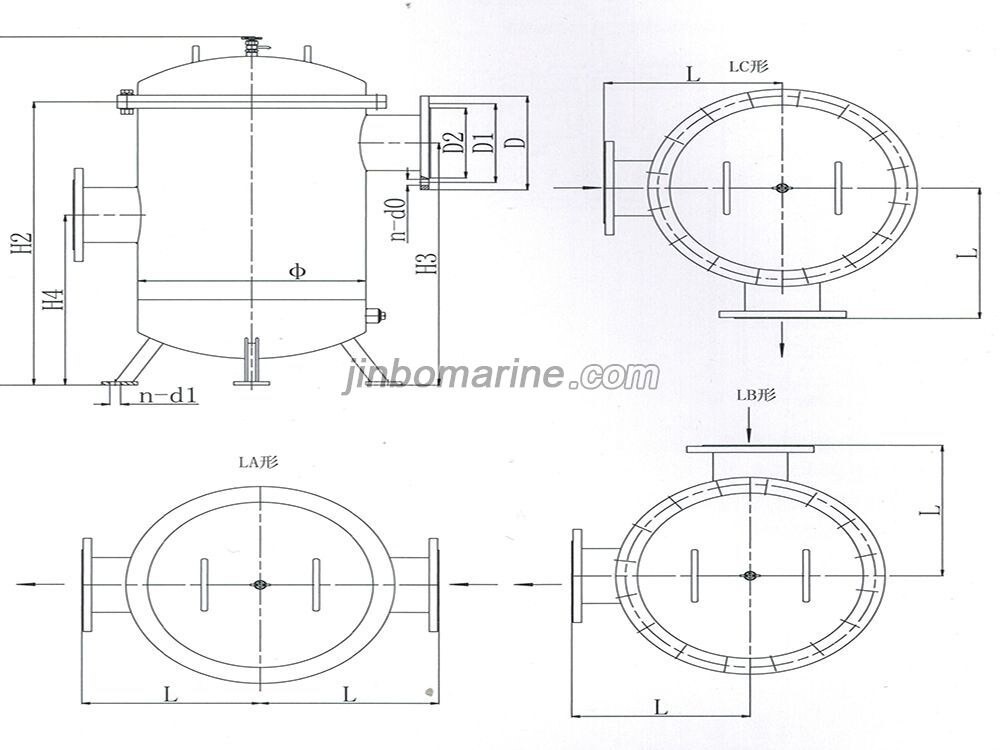

XZL350 Model Inspiration Strainer Filter Drawing



XZL350 Model Inspiration Strainer Filter Technical Parameters

DN Structure size Flange Anchor
L H1 H2 H3 H4 Φ D D1 D2 n n n-d1
100 240 630 465 375 289 312 220 180 158 8 8 3-Φ22
125 250 680 515 422 339 250 210 184 8 22
150 340 810 642 527 357 412 285 240 212
200 340 915 740 595 375 340 295 268
250 400 1005 820 635 365 512 395 350 320
300 400 1145 965 750 430 445 400 375 16 22
350 448 1255 1045 810 440 612 505 460 430
400 448 1420 1220 950 530 565 515 482
