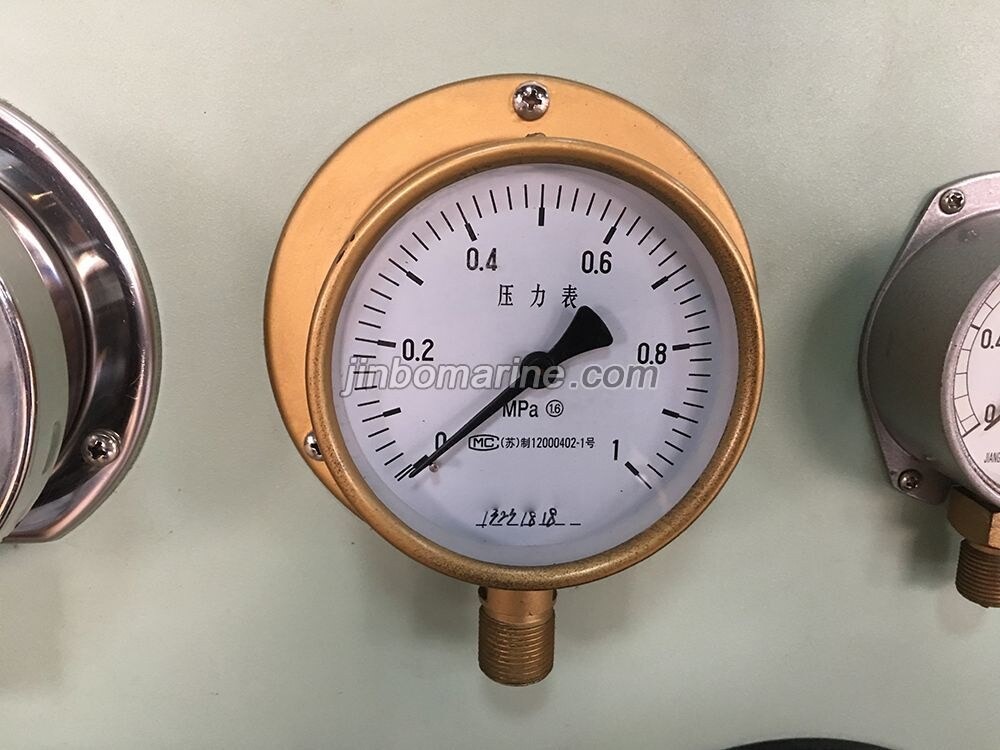

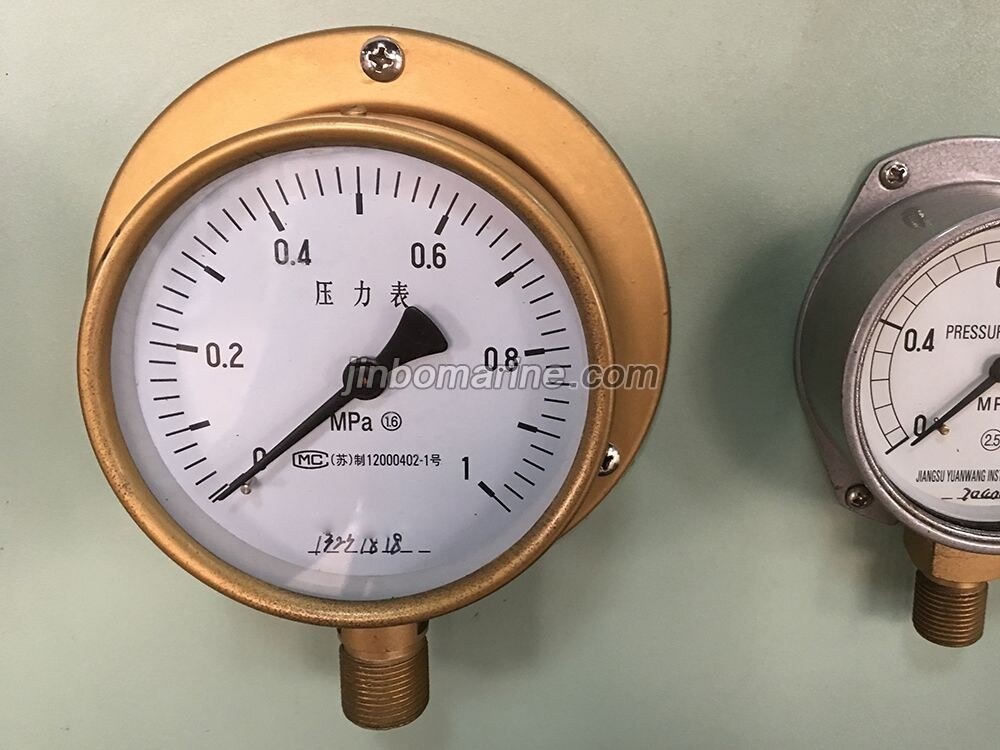

YC-100-T Brass Shell Pressure Gauges

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

Pressure gauge is a pressure measuring instrument,the core is metal elastic element,the product in accordance with Marine technical standard.

Used for measuring the pressure of gas,oil etc medium on the ship or other industrial equipment.

Parameter:

Material:Iron alloy / Ferroalloy,Aluminium alloy,Copper alloy,Stainless steel.

Accurancy:Grade 2.5,Grade 1.6

Dial Diameter:60mm,75mm,100mm,150mm,200mm.

Main Technical Specification:

Type and feature Model code Dial diameter(mm) Measure range(Mpa) Accuracy Connection thread
Radial no side type I - 60 0-0.06
0-0.1
0-0.16
0-0.25
0-0.4
0-0.6
0-1
0-1.6
0-2.5
0-4
0-6
0-10
0-16
0-25
0-40
0-60
Grade 2.5 M14x1.5
Radial back side type II T
Axial no side type IV Z
Axial front square type - ZF M10x1
M14x1.5
Axial front side type III ZT
Radial cutted side type II T 75 G 3/8"
Radial no side type I - 100 Grade 1.6 M20x1.5
G 1/2"
Radial back side type II T
Axial no side type IV Z
Axial front side type III ZT
Axial back square type - TF ‘-01.-0
Radial no side type I - 150 ’-0.1-0.1
-0.1-0.15
-0.1-0.3
-0.1-0.5
-0.1-0.9
-0.1-1.5
-0.1-2.4
Radial back side type II T
Radial no side type I - 200
Radial back side type II T

Model Sign:
