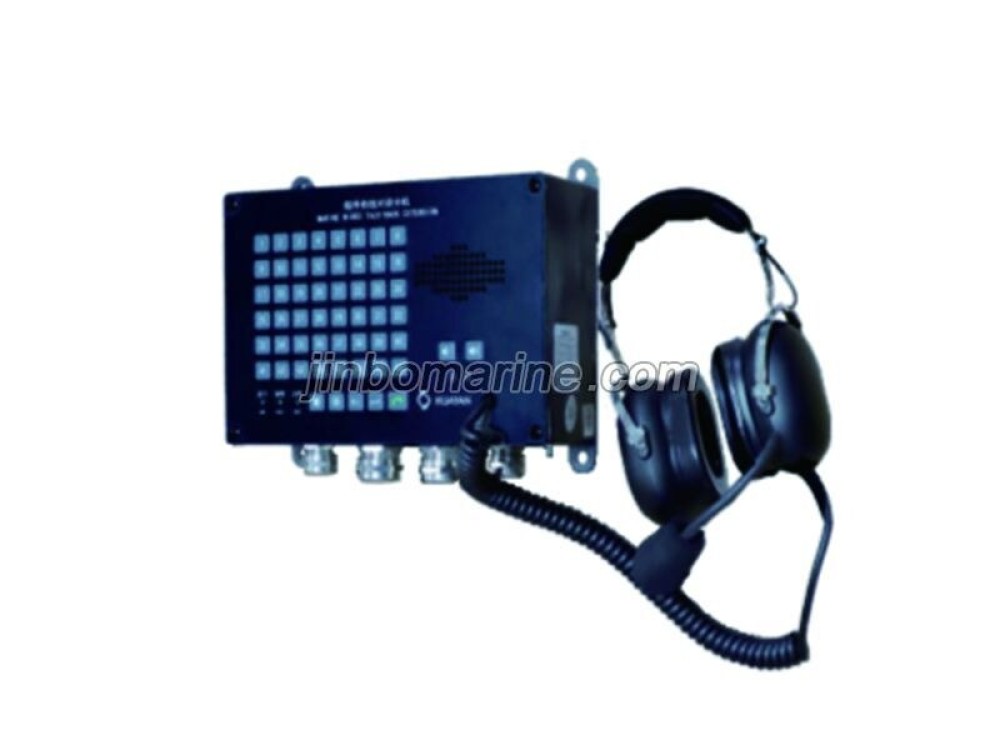

YDF-48GT Marine Wired Talk-Back Extension

YDF-48GT Marine Wired Talk-Back Extension

1)DNV RULES FOR CLASSIFICATION SHIPS.
2)DNV-CG-0339:2021 Environmental test specification for electrical, electronic and programmable equipment and systems
3)IEC 60945:2002 "Marine Navigation and Radio Communication Equipment and Systems - General Requirements - Test Methods and Test Result Requirements'
4)IMO Resolution A.1021 (26) "2009 Alert Indicators and Indicators Rules"
5)IEC 60092-504:2016 "Marine Electrical Equipment Part 504: Special Sections Control and Instruments'
6)IACS UR E10 Rev.7 "Test Specifications for Type Approval of Electrical and Electronic Equipment"

Colour: RAL9005

Power supply: DC24V

Alarm sound level: ≥75dB

IP rating: IP44

Hull Material: Q235B

Cable gland: 2xPG21(13-18mm), 2xPG16(10-14mm)
