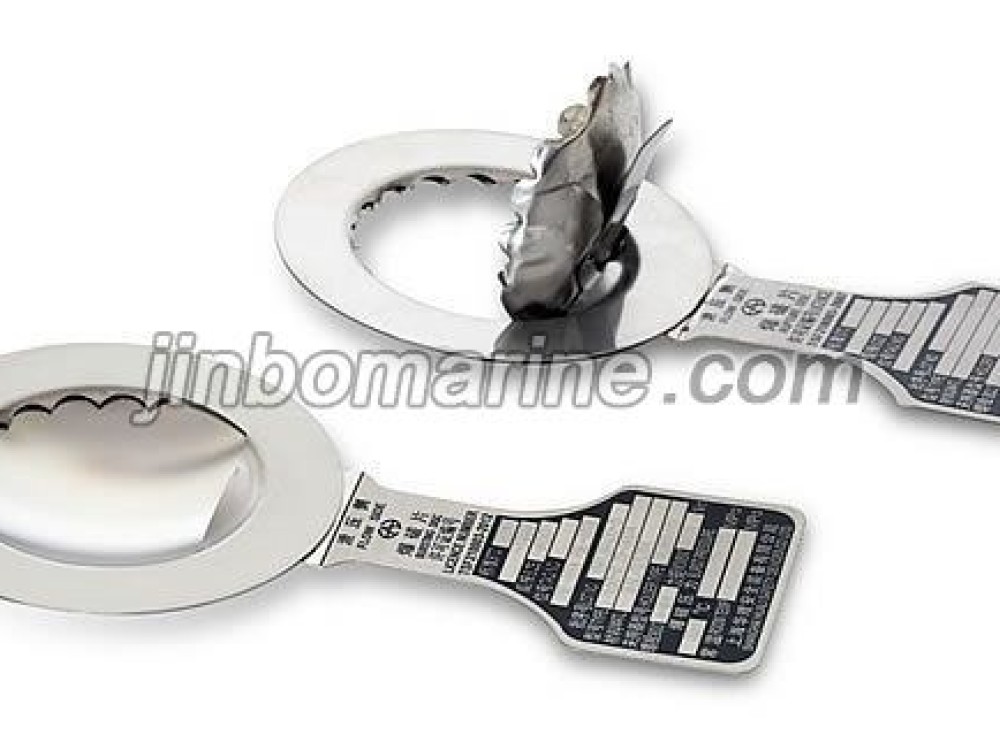

YE Bursting Disc Picture

YE Bursting Disc

Request a Quote Not what you need, please send your RFQs via Email.

Download this page

Details

YE Bursting Disc is the reverse domed bursting disc with alligator tooth.

Combined with the single layer diaphragm and alligator ring. This type shall function by being expelled downstream from the bursting disc holder.

1. Applied in gas medium and gas-liquid medium;

2.With the high ability to withstand back pressure, it can bear the full vacuum without any support;

3.The maximum operating pressure can reach 90% of the bursting pressure;

4.Anti-fatigue, and it can be used in places with fluctuating pressure

5.No fragments are generated in bursting, and the serial usage with the safety relief valve is available;

6.No sparks are generated in bursting, but it is not suitable places with high pressure.

Bursting Pressure in normal temperature (min~max Mpa)
Relief Diameter(mm)	Reverse domed with knife blade (YD)	Reverse domed with alligator (YE)	Reverse domed slotted (YC)	Reverse domed seamed (YF)
20	1.8-12	0.14-5.0	0.6-11	0.4-7.0
25	0.2-12	0.14-5.0	0.6-11	0.4-7.0
32	0.2-12	0.14-5.0	0.55-10	0.4-6.0
40	0.15-12	0.13-4.2	0.5-9.0	0.2-5.0
50	0.1-11	0.12-3.4	0.4-8.0	0.15-4.0
65	0.08-10	0.11-2.6	0.35-7.0	0.03-3.0
80	0.08-9.0	0.10-1.8	0.3-6.0	0.02-2.7
100	0.08-8.0	0.10-1.3	0.3-5.0	0.01-2.4
125	0.07-7.0	0.08-1.0	0.25-4.0	0.01-2.1
150	0.07-6.0	0.08-0.7	0.25-3.5	0.008-1.8
200	0.07-4.6	0.07-0.5	0.2-2.5	0.008-1.4
250	0.06-3.0	0.07-0.35	0.2-20	0.005-0.9
300	0.06-2.0	0.06-0.25	0.16-2.0	0.005-0.3
350	0.06-1.5	/	/	0.005-0.1
400	0.05-1.2	/	/	0.005-0.05
450	0.05-0.8	/	/	0.005-0.05
