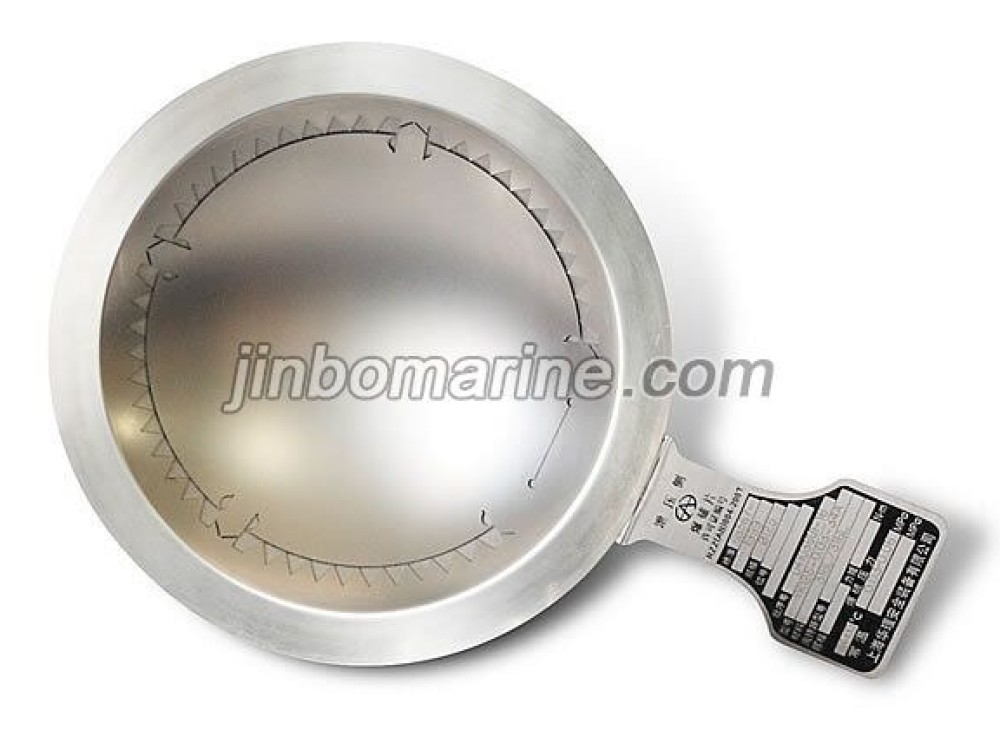

YF Bursting Disc
- Category:Reverse Acting Bursting Disc
- Material:Aluminum, Copper, Stainless Steel, Steel
- Standards:GB567-2012
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China YF Bursting Disc:
YF Bursting Disc is the reverse domed slotted lined burst disc.
Structure features:
The bursting disc is composed of pressure-sensitive components with sawtooth and pressure lever and sealing film. The instability of the pressure lever of the pressure-sensitive components makes the sealing film cracked by the sawtooth on the pressure-sensitive components to release during the rollover of bursting disc
Technical features:
1. Applied in gas medium and gas-liquid medium;
2.Applied in the places with low pressure;
3.No sparks are generated in bursting.
Bursting Pressure Range of Reverse Domed Burst Disc:
| Bursting Pressure in normal temperature (min~max Mpa) | ||||
| Relief Diameter(mm) | Reverse domed with knife blade (YD) | Reverse domed with alligator (YE) | Reverse domed slotted (YC) | Reverse domed seamed (YF) |
| 20 | 1.8-12 | 0.14-5.0 | 0.6-11 | 0.4-7.0 |
| 25 | 0.2-12 | 0.14-5.0 | 0.6-11 | 0.4-7.0 |
| 32 | 0.2-12 | 0.14-5.0 | 0.55-10 | 0.4-6.0 |
| 40 | 0.15-12 | 0.13-4.2 | 0.5-9.0 | 0.2-5.0 |
| 50 | 0.1-11 | 0.12-3.4 | 0.4-8.0 | 0.15-4.0 |
| 65 | 0.08-10 | 0.11-2.6 | 0.35-7.0 | 0.03-3.0 |
| 80 | 0.08-9.0 | 0.10-1.8 | 0.3-6.0 | 0.02-2.7 |
| 100 | 0.08-8.0 | 0.10-1.3 | 0.3-5.0 | 0.01-2.4 |
| 125 | 0.07-7.0 | 0.08-1.0 | 0.25-4.0 | 0.01-2.1 |
| 150 | 0.07-6.0 | 0.08-0.7 | 0.25-3.5 | 0.008-1.8 |
| 200 | 0.07-4.6 | 0.07-0.5 | 0.2-2.5 | 0.008-1.4 |
| 250 | 0.06-3.0 | 0.07-0.35 | 0.2-20 | 0.005-0.9 |
| 300 | 0.06-2.0 | 0.06-0.25 | 0.16-2.0 | 0.005-0.3 |
| 350 | 0.06-1.5 | / | / | 0.005-0.1 |
| 400 | 0.05-1.2 | / | / | 0.005-0.05 |
| 450 | 0.05-0.8 | / | / | 0.005-0.05 |
