China YLP Series-General Bolt Tensioner:

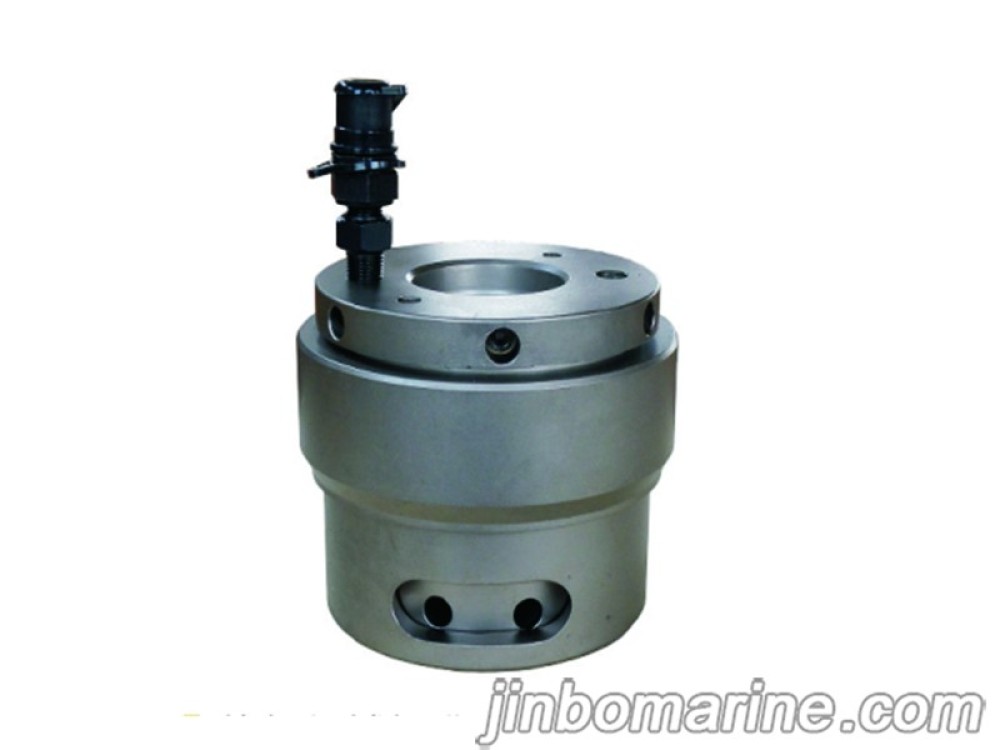

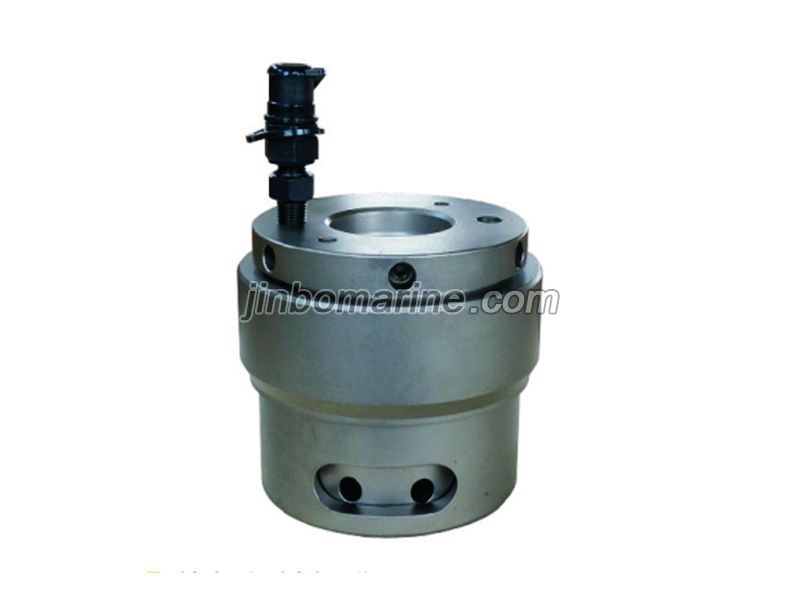

YLP Series-General Bolt Tensioner

Implementation of mechanical standard: GB/T 6390-2007

Note: working pressure 80MPa, mechanical return.

Model Thread Tensile Force
KN

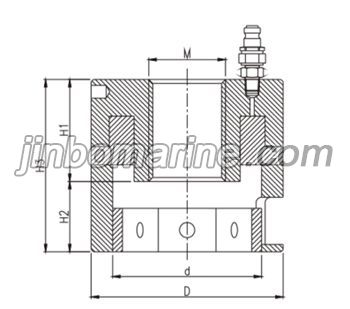

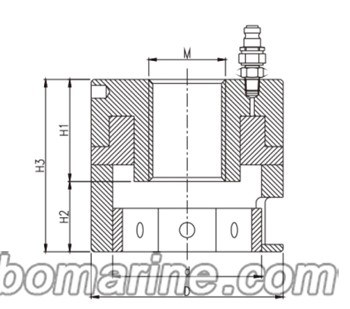

Size(mm) Pistion
D d H1 H2 H3 The Measure
Of Area
cm²
troke
mm
YLP01 M30X3.5 125 70 54 70 26 96 15.7 5
YLPO2 M33X3.5 140 76 60 72 28 103 17.3 5
YLP03 M36X4 150 83 66 74 30 109 18.9 5
YLPO4 M39X4 195 88 72 75 32 112 24.5 5
YLPO5 M42×4.2 210 94 77 76 34 116 26.5 5
YLPO6 M45×4.5 230 100 83 78 38 124 28.5 5
YLP07 M48×5 280 106 89 80 40 129 35.3 5
YLPO8 M52X5 300 112 94 82 45 134 37.6 5
YLPO9 M56X5.5 385 124 100 84 48 145 48 5
YLP10 M60×5.5 480 136 106 86 51 154 59.7 5
YLP11 M64X6 505 142 112 88 53 151 62.9 5
YLP12 M68×6 610 153 118 90 58 162 76 5
YLP13 M72X6 720 165 124 92 62 166 90.3 5
YLP14 M76X6 755 171 130 95 64 174 94.3 5
YLP15 M80X6 880 183 136 105 68 175 110 5
YLP16 M85×6 1020 195 143 110 72 189 127.2 5
YLP17 M90X6 1165 207 146 115 74 198 145.5 5
YLP18 M95X6 1320 218 157 120 80 218 165 5
YLP19 M100X6 1365 224 164 125 84 223 170.5 5
YLP20 M105X6 1580 228 175 135 88 197.3 5
YLP21 M110X6 1760 254 181 145 95 220 5
YLP22 M115X6 1800 260 188 155 98 225 5
YLP23 M120X6 1910 271 194 165 100 238.8 5
YLP24 M125X6 1960 277 198 175 105 245 5
YLP25 M130X6 2165 289 210 185 110 270.4 5
