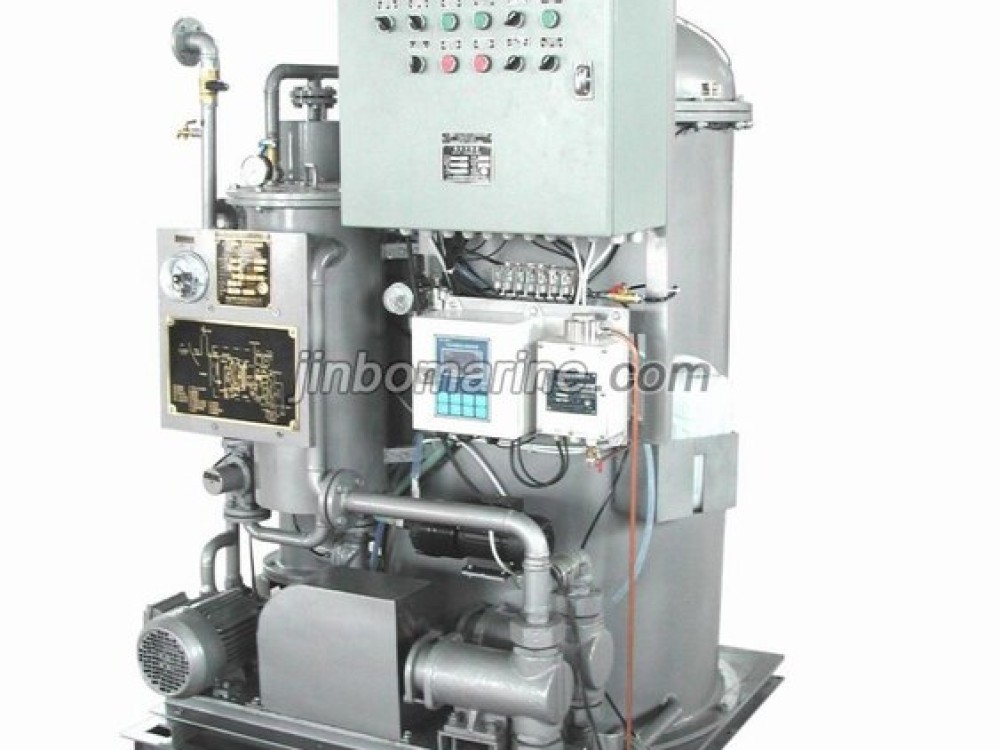

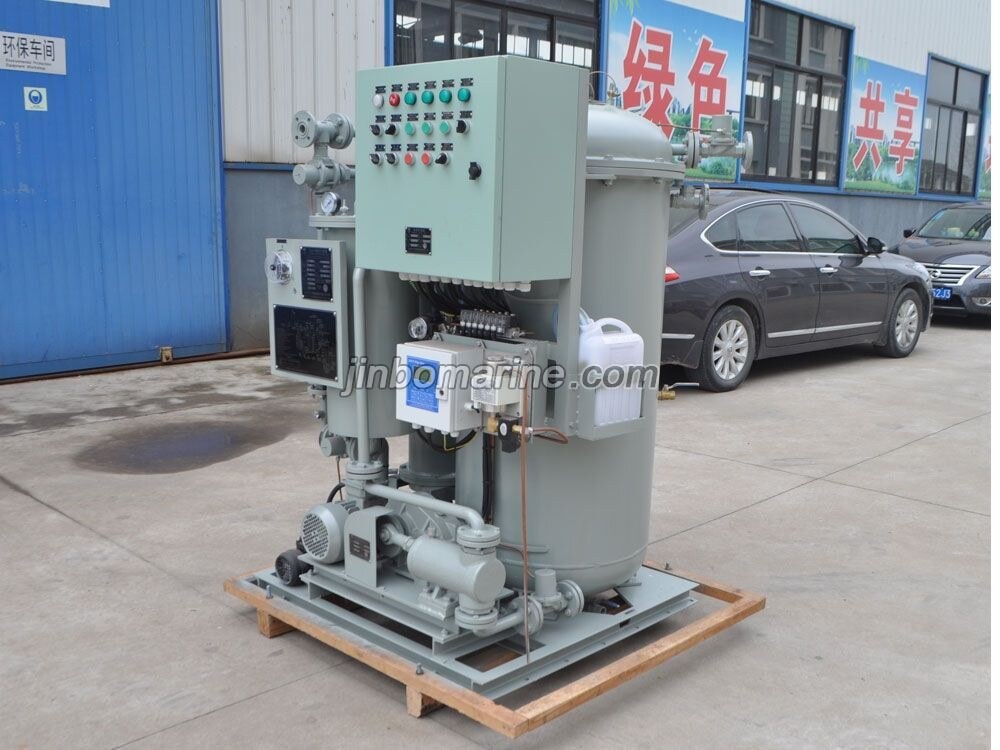

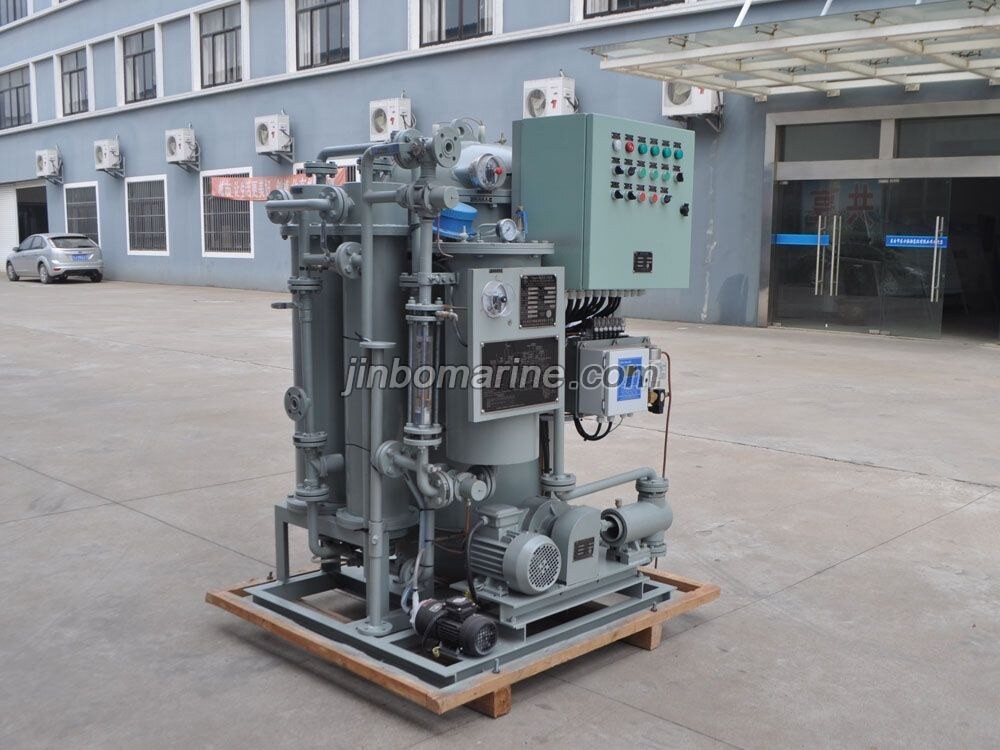

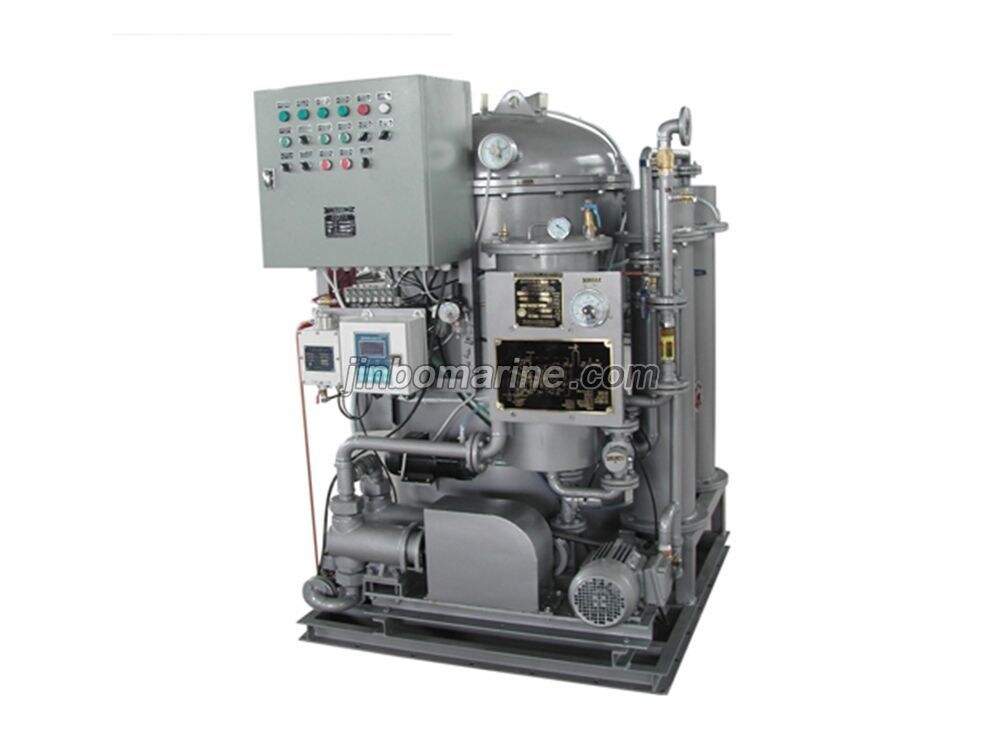

YWC-1.50 Water And Oil Separator

  • Category:Marine Oil Water Seperator
  • Standards:International maritime IMO.MEPC.107(49) standard.
  • Certificate:CCS, BV, ABS, GL,LR, NK
  • Material:Carbon Steel
  • Packing Details:Standard Export Packaging
  • Delivery Time:15-20days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
  • Attachment:[ ]
Request a Quote Not what you need, please send your RFQs via Email.

Details

Water And Oil Separator:

It can be used in industrial and petroleum, besides in ship vessels. The effluent oil content from our oil water separator can meet any standards of Environment Bureau in China. Principle:

The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).

Technical Data:

Rated capacity 1.50 m3 per hour
Power of the electric heater 6kw
Power of the electric motor 1.1kw
Outline Dimension(LxWxH) 1100x1130x1650
Base 6#
Weight Dry Weight 1060
Wet Weight 1650
Applicable Vessel 10-30DWT
Optional electrical system AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase,
AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase.
Oil content of the discharged water Not more than 15ppm
Suction head Not more than 6m-H2O
Pressure of the discharged water 5-10m-H2O
