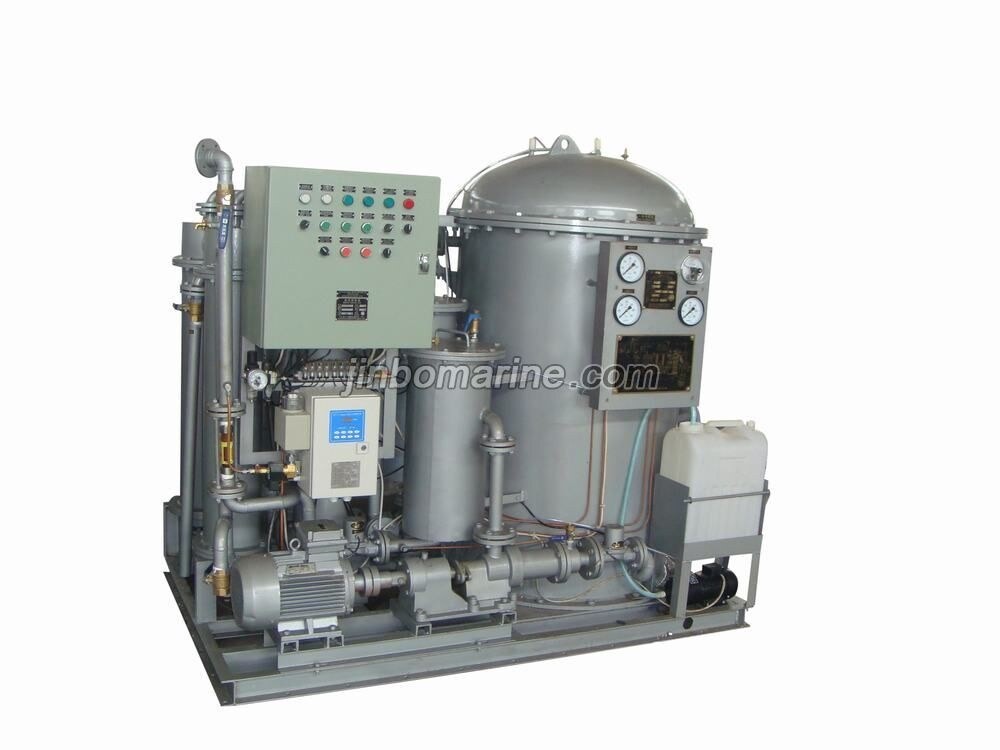

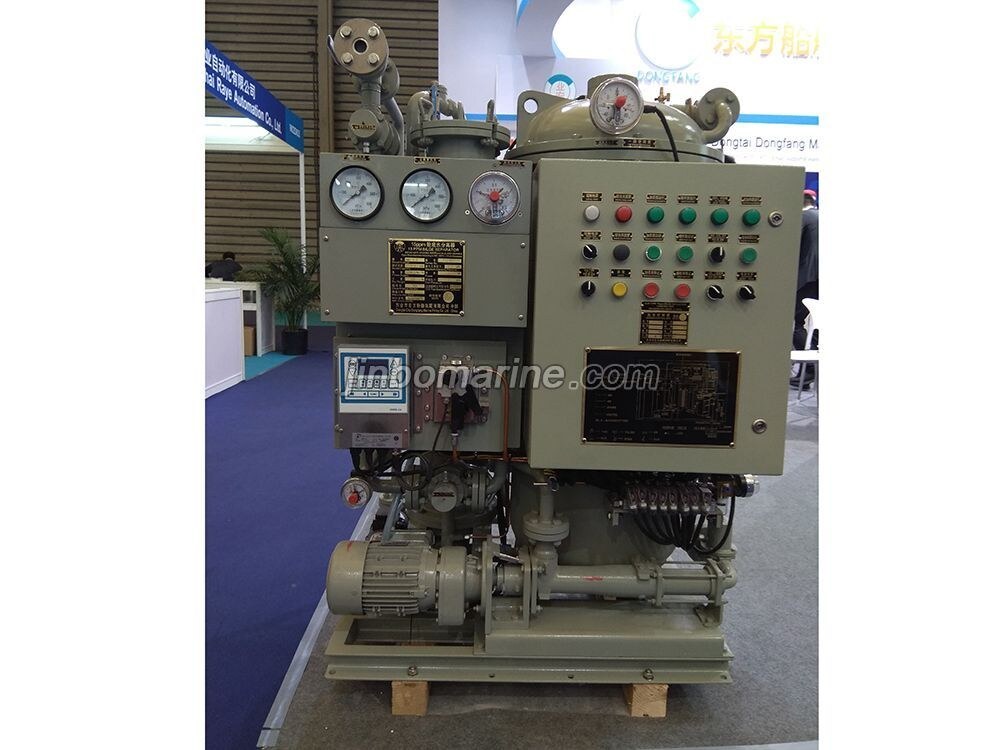

YWC-2.50 Automatic Bilge Water Separator
- Category:Marine Oil Water Seperator
- Material:Carbon Steel
- Standards:International maritime organization IMO.MEPC.107(49) standard
- Certificate:CCS,BV, ABS, GL, DNV certificate etc.
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[ ]
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Automatic Bilge Water Separator:
To comply with resolution IMO MEPC.107 (49), on board, especially ocean-going ships, they must be installed on board: 15ppm bilge separator, 15ppm bilge alarm and automatic stopping device.
15ppm bilge separator, the
main parts adopt international famous brands, including electrical control box components provided by
Schneider, 15ppm bilge alarm provided by the German DECKMA Ha, screw pump
provided by the Mono Pump.
Technical Data:
| Rated capacity | 2.50 m3 per hour | |
| Power of the electric heater | 6kw | |
| Power of the electric motor | 1.5kw | |
| Outline Dimension(LxWxH) | 1900x1120x1900 | |
| Base | 8# | |
| Weight | Dry Weight | 1500 |
| Wet Weight | 2800 | |
| Applicable Vessel | 50-100DWT | |
| Optional electrical system |
AC 380V/50Hz/3
phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. |
|
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
