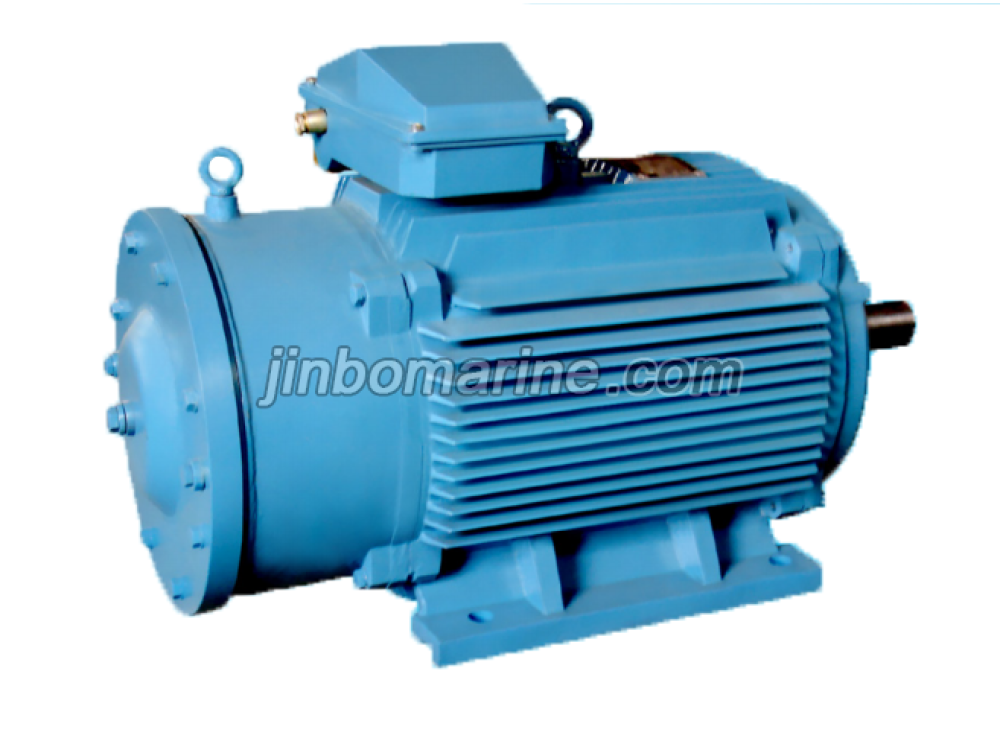

YZ—H Three Phase Induction Marine Electronic Motor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Introduction

YZ-H series marine use three phase induction motors for hoisting are designed and manufactured according to GB755 ‘Rotating electrical machines-Rating and Performance’ ，GB/ T7060 ‘General specifications for rotary electrical machines in ships’ and JB/T7597 ‘Specification for YZ-H marine three phase induction motor for hoisting in ships’. They have the features of excellent performance, small size, low noise, reliable operation and convenient maintenance, etc. They are suitable for short time rationed electrical dragging on boats for deck machines, such as anchoring machines, winch machines and winch etc. They can also provide power for cargo lift that does not operate frequently. This series motors are also suitable for the following standards and specifications.

This series is in accordance with the following standard:

IEC60034 Rotary motor

IEC60068 Testing process of basic environment

IEC60072 Mounting dimensions and power of rotary motor

IEC60092 Marine electrical devices (equipment)

Rules for the construction of sea-going steel ships

Working Conditions:

Ambient temperature：-25~+45℃；

Shock, Vibration：Exist ；

Periodical transverse shaking：±22.5°；

Ramp：15°；

Altitude：0m；

Longitudinal ramp：10°；

Relative humidity of air：≤ 95%；

Frozen dew, salt dew, oil dew：Exist 。

Main Technical Data of single speed motors

Type

Duty
S2-min

Rated power (kW)

Rated speed r/min

Rated current (A)

DC. Brake

380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz Voltage (V) Current A Brake torque N • m
YZ112S-4-H 30 1.5 1.8 1360 1632 4.3 4.5 110 1.37 33
YZ112M-4-H 30 2.2 2.5 1360 1630 6.0 5.92 110 1.37 33
YZ112L-4-H 30 3.7 4 1360 1630 9.6 8.98 110 1.37 33
YZ112S-6-H 30 1.1 1.2 890 1068 3.5 3.31 110 1.37 33
YZ112M-6-H 30 1.5 1.8 890 1068 4.65 4.82 110 1.37 33
YZ112L-6-H 30 2.2 2.5 890 1068 6.6 6.51 110 1.37 33
YZ132M1-4-H 30 5.5 6.3 1356 1670 13.4 13.3 110 1.56 72
YZ132M2-4-H 30 7.5 8.5 1360 1690 18.5 17.88 110 1.56 72
YZ132S-6T 30 3.7 4 940 1130 10.5 9. 85 110 1.56 72
YZ132M-6-H 30 5.5 6.3 940 1130 15.3 15.10 110 1.56 72
YZ160S-6-H 30 7.5 8.5 940 1140 19.73 19.31 110 1.61 160
YZ160L-6-H 30 11 13 930 1130 26.8 27.34 110 1.61 160
YZ180L-6T 30 15 18.5 960 1152 36 38.42 110 2.24 203
YZ200M-6-H 30 18.5 22 950 1140 43.9 45.13 110 2.23 260
YZ225S-6T 30 22 25 950 1140 50.97 50.03 110 2.16 399

Main Technical Data of double speed motors

Type

Duty
S2-min

Rated power (kW)

Rated speed r/min

Rated current (A)

DC. Brake

380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz Voltage (V) Current A Brake torque N • m
YZ132M-4/12-H 30/10 3/1. 1 3. 5/1. 2 1360/430 1660/530 8. 3/7. 6 8. 4/8. 6 110 1.56 72
YZ132L-4/12-H 30/10 4/1.5 4. 5/1. 7 1400/430 1700/530 10. 3/9. 1 10/8.9 110 1.56 72
YZ160L-4/12-H 30/10 6. 3/2. 2 7. 5/2. 5 1394/426 1690/530 15.4/11.9 16.2/11.7 110 1.61 160
YZ180L-4/12-H 30/10 8. 5/3. 5 10/4. 0 1400/438 1690/520 19/18 20.5/17.7 110 2.24 203
YZ180L-4/16-H 30/15 11/3.0 13/3.5 1424/328 1742/380 24/16 26.8/16.7 110 2.24 203
YZ200M-4/16-H 30/15 15/4.0 17/4.5 1420/340 1740/400 32.8/24.1 33.2/23.4 110 2.23 260
YZ200L-4/16-H 30/15 18. 5/5. 5 22/6. 3 1420/340 1740/410 0.4/32.6 42.4/32.3 110 2.23 260

Main Technical Data of Three Speed Motors

Type

Duty
S2-min

Rated power (kW)

Rated speed r/ min

Rated current (A)

DC. Brake

380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz Voltage (V) Current A Brake torque N • m
YZ200S- 4/8/16-H 10/30/5 9 10 21.4 20.5 1435 1738 110 2.23 260
9 10 24.7 23.7 684 837
4.2 4.7 37.3 36.4 324 406
YZ200L- 4/8/16-H 12.5 14 29.3 28.4 1437 1733
12.5 14 34.3 33.2 689 840
5.7 6.5 49.5 49.4 330 410
YZ225S- 4/8/16-H 16.8 19 38.9 38.0 1421 1723 2.16 399
16.8 19 46.2 45.0 683 835
8 9.1 67.6 67.9 333 413
YZ225L- 4/8/16-H 22.5 25 51.5 49.4 1422 1725
22.5 25 60.3 57.9 686 838
10.6 12 85.6 86.3 334 400
YZ250S- 4/8/16-H 30 33.5 63.8 61.6 1410 1713 2.65 876
30 33.5 71.3 68.7 680 832
14.5 16 105.5 103.5 336 415
YZ250M- 4/8/16-H 42 46 86.3 81.6 1410 1707
42 46 95 89.8 676 830
20 22 112.6 110 334 414
YZ280S- 4/8/16-H 56 63 114 111.2 1415 1717 2.45 1550
56 63 120.6 117.2 694 844
27 30 147.5 145 345 423
YZ280L- 4/8/16-H 75 84 154 149 1427 1729
75 84 161.5 156.2 692 843
36 40 182 179.5 345 423

Main Technical Data of Improvement Motors

Type

Duty S2-min

Rated power (kW)

Rated speed (r/min)

Rated current (A)

DC. Brake

380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz Voltage (V) Current (A) Brake torque N.m
YZ112S-4-H 30 1.5 1.8 1360 1632 4.3 4.5 110 1.37 33
YZ112M-4-H 30 2.2 2.5 1360 1630 6.0 5.92 110 1.37 33
YZ112L-4-H 30 3.7 4 1360 1630 9.6 8.98 110 1.37 33
YZ112S-6-H 30 1.1 1.2 890 1068 3.5 3.31 110 1.37 33
YZ112M-6-H 30 1.5 1.8 890 1068 4.65 4.82 110 1.37 33
YZ112L-6-H 30 2.2 2.5 890 1068 6.6 6.51 110 1.37 33
YZ132M1-4-H 30 5.5 6.3 1356 1670 13.4 13.25 110 1.86 72
YZ132M2-4-H 30 7.5 8.5 1360 1690 18.5 17.88 110 1.86 72
YZ132S-6-H 30 3.7 4 940 1130 10.5 9.85 110 1.86 72
YZ132M-6-H 30 5.5 6.3 940 1130 15.3 15.10 110 1.86 72
YZ132M- 4/12-H 30/10 3/1. 1 3. 5/1. 2 1360/430 1660/530 8. 4/7. 6 8. 4/7.1 110 1.86 72
YZ132L- 4/12-H 30/10 4/1.5 4. 5/1.7 1400/430 1700/530 10.3/9.1 10/9 110 1.86 72

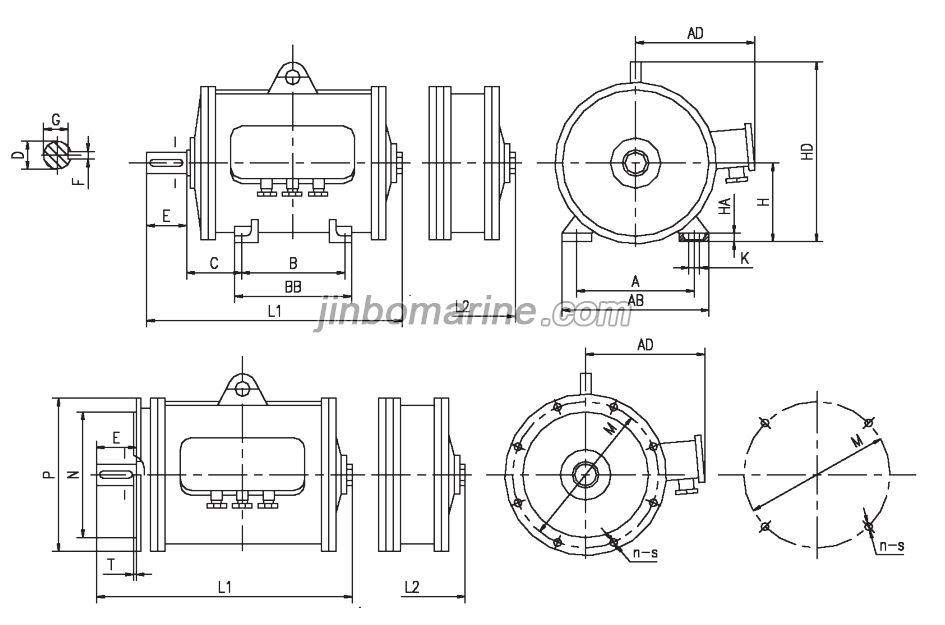

Overall and Mounting Dimensions

Single&Double Speed Motors

Frame Size

Mounting Dimensions

Overall Dimensions

Weight (kg)

A B C D E F G H K M N P R S T n AB AD BB HA HD LI L2 LI L2
112S 190 114 70 28 60 8 24 112 12 265 230 300 0 15 4 4 235 215 152 12 282 315 440 51 73
112M 190 140 70 28 60 8 24 112 12 265 230 300 0 15 4 4 235 215 178 340 465 54 74
112L 190 159 70 28 60 8 24 112 12 265 230 300 0 15 4 4 235 215 197 360 490 60 86
132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 4 259 225 207 15 325 425 545 63 99
132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 4 259 225 218 455 590 85 122
132L 216 203 89 38 80 10 33 132 12 265 230 300 0 15 4 4 259 225 243 485 615 86 122
160S 254 178 108 42 110 12 37 160 15 300 250 350 0 19 5 4 303 258 226 510 650 120 145
160L 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 4 303 258 302 20 370 590 740 150 175
180L 279 279 121 48 110 14 42.5 180 15 350 300 400 0 19 5 4 341 275 342 660 810 220 260
200M 318 267 133 48 110 14 42.5 200 19 400 350 450 0 19 5 8 385 300 337 515 660 810 240 330
200L 318 305 133 48 110 14 42.5 200 19 400 350 450 0 19 5 8 385 300 337 706 846 295 380
225S 356 286 149 55 110 16 49 225 19 500 450 550 0 19 5 8 435 325 386 568 730 890 325 426

Three Speed Motors

Frame Size

Mounting Dimensions

Overall Dimensions

Weight(kg)

A B C D E F G H K M N P S T n AB AD BB HA HD LI L2 LI L2
200S 318 228 133 48 110 14 42.5 200 19 350 300 400 19 5 4 398 300 338 20 518 660 790 249 335
200L 318 305 133 48 110 14 42.5 200 19 350 300 400 19 5 398 300 418 740 870 280 385
225S 356 286 149 55 110 16 49 225 19 400 350 450 18 5 8 436 325 386 578 765 925 330 405
225L 356 356 149 55 110 16 49 225 19 400 350 450 18 5 436 325 456 835 995 390 465
250S 406 311 168 65 140 18 58 250 24 500 450 550 18 5 506 400 420 23 628 845 1030 600 690
250M 406 349 168 65 140 18 58 250 24 500 450 550 18 5 506 400 458 880 1060 700 850
280S 457 368 190 75 140 20 67.5 280 24 500 450 550 18 5 557 430 478 698 910 1125 800 880
280L 457 457 190 75 140 20 67.5 280 24 500 450 550 18 5 557 430 567 1000 1215 1010 1200

Improvement Motors



Frame Size Mounting And Overall Dimensions
A B C D E F G GD H K M N P S T n AB AC AD BB HA HD HF LA L1 L2
112S 190 114 70 28 60 8 24 7 112 12 265 230 300 15 4 4 226 215 215 152 15 270 310 22 310 430
112M 140 197 350 460
112L 159
132S 216 140 89 38 80 10 33 8 132 260 260 235 180 18 315 335 400 515
132M 178 243 460 575
132L 203
