Marine Equipment
ZX-8DCZ Marine Large Electromagnetic Range
Marine Large Electromagnetic Range Product introduction: 1. The shell adopts 304 stainless steel material, durable; 2. The core component (microcrystalline panel, core) imp...
Loading product images...

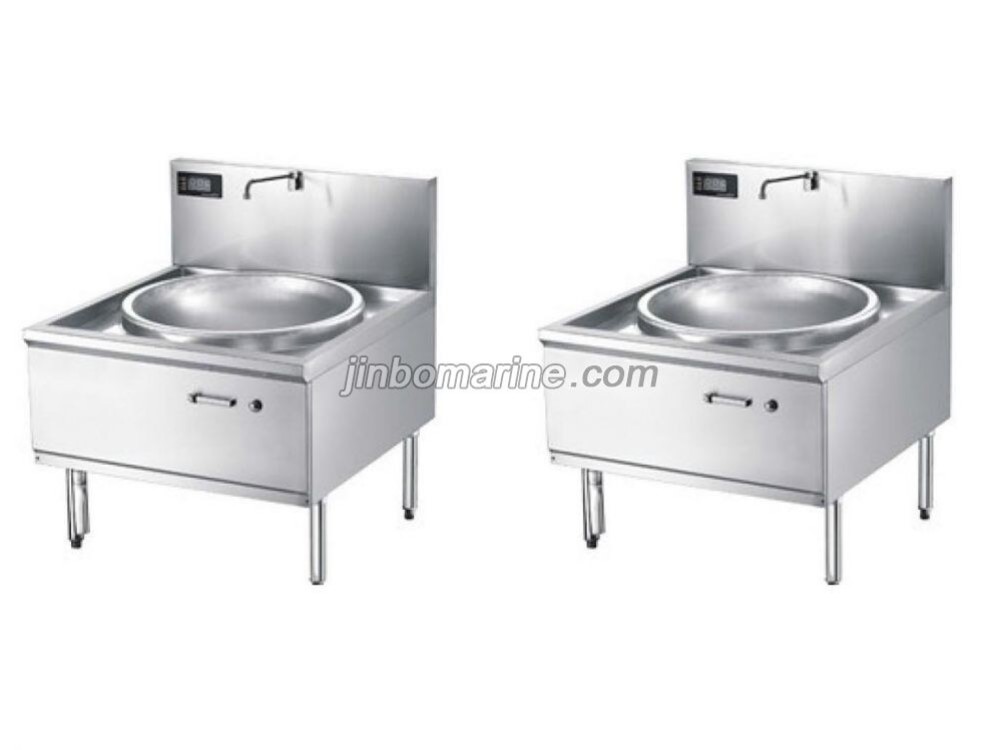

ZX-8DCZ Marine Large Electromagnetic Range
PDF Datasheet
We can supply according to your requirement.
Marine Large Electromagnetic Range
Product introduction:
1. The shell adopts 304 stainless steel material, durable;
2. The core component (microcrystalline panel, core) imported from Germany, the greatest degree of protection of stable and reliable performance;
3. The easy to use, fast heating speed, no fire, smoke-free, no emissions, good safety;
4. The fifth is provided with a power regulation switch and digital display;
5. The adjustable foot, adjustable range of positive and negative 30mm.
Technical data:
| Model | Dimension(mm) | Capacity(people) | Power (kw) | Volts(v) | HZ | N/W(kg) |
| ZX-8DCZ | 1100x1150x850 | 50 | 8 | 380v/415v/440v/480v-3p | 50/60Hz | 80 |
| ZX-12DCZ | 1100x1150x850 | 60 | 12 | 380v/415v/440v/480v-3p | 50/60Hz | 85 |
| ZX-30DCZ | 2000x1150x850 | 100 | 2x15 | 380v/415v/440v/480v-3p | 50/60Hz | 120 |
| ZX-36DCZ | 2000x1150x850 | 120 | 2x18 | 380v/415v/440v/480v-3p | 50/60Hz | 130 |
