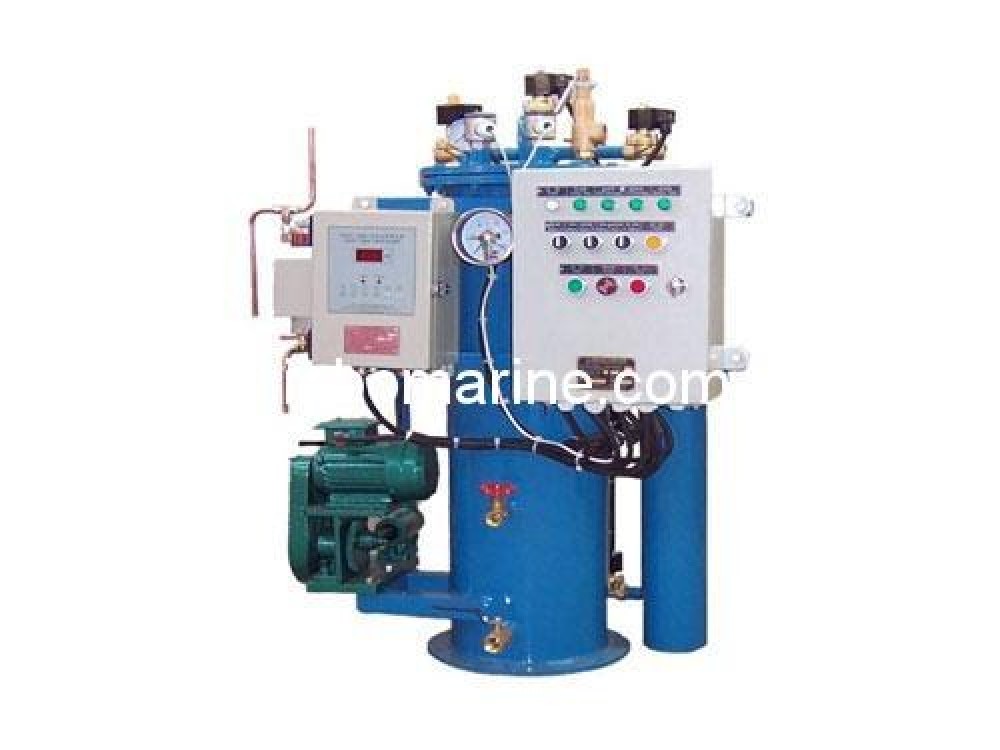

ZYFM-B Series Marine Bilge Separator
- Category:Marine Oil Water Seperator
- Standards:IMO MEPC 107 (49)
- Certificate:CCS,BV, ABS, GL, DNV certificate etc.
- Supply Ability:10 sets/month
- Delivery Time:20 days
- Packing Details:Standard Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Zyfm B Serie Marine Bilge Separator.pdf
Details
China ZYFM-B Series Marine Bilge Separator:
ZYFM-B series marine bilge separator is widely used for ship bilge water,port oily water treatment,the device is consist of 1st and 2nd grade separator,special purpose pump,electric control box,oil concentration alarm recording instrument, etc. It features lighter,smaller,convenient and long service life.
|
Model Number |
ZYFM-0.25 |
ZYFM-0.5 |
ZYFM-1 |
ZYFM-2 |
ZYFM-3 |
ZYFM-5 |
|
Treatment capability (m3 per hour) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
|
Discharging standard |
Equal or less than 15ppm |
|||||
|
Design pressure |
0.2 Mpa |
|||||
|
Types of pump |
Single screw pump / plunger pump |
|||||
|
Suction lift(m) |
Equal or less than 6 |
|||||
|
Power of motor(kw) |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Electric heating power |
.. |
1 |
2 |
|||
|
Power supply |
220V 50HZ,380V 50HZ, 410V 50HZ,440V 60HZ |
|||||
|
Gathering room heating method and power |
Electric heating |
|||||
|
1kw |
1kw |
2kw |
2kw |
2kw |
3kw |
|
|
Oil drainage mode |
Automatic and manual |
|||||
|
Dimension(LXWXH) |
1590X950X1350 |
1600X1080X1860 |
1800X1100X1910 |
2170X1310X2160 |
2250X1380X2250 |
2560X1600X2400 |
|
Weight(kg) |
300 |
500 |
700 |
1200 |
1600 |
2200 |
