CWY Series Marine Diesel Engine Emergency Fire Pump
- Category:Fire Pump
- Certificate:CCS
- Standards:standard
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft, Diesel engine driven
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

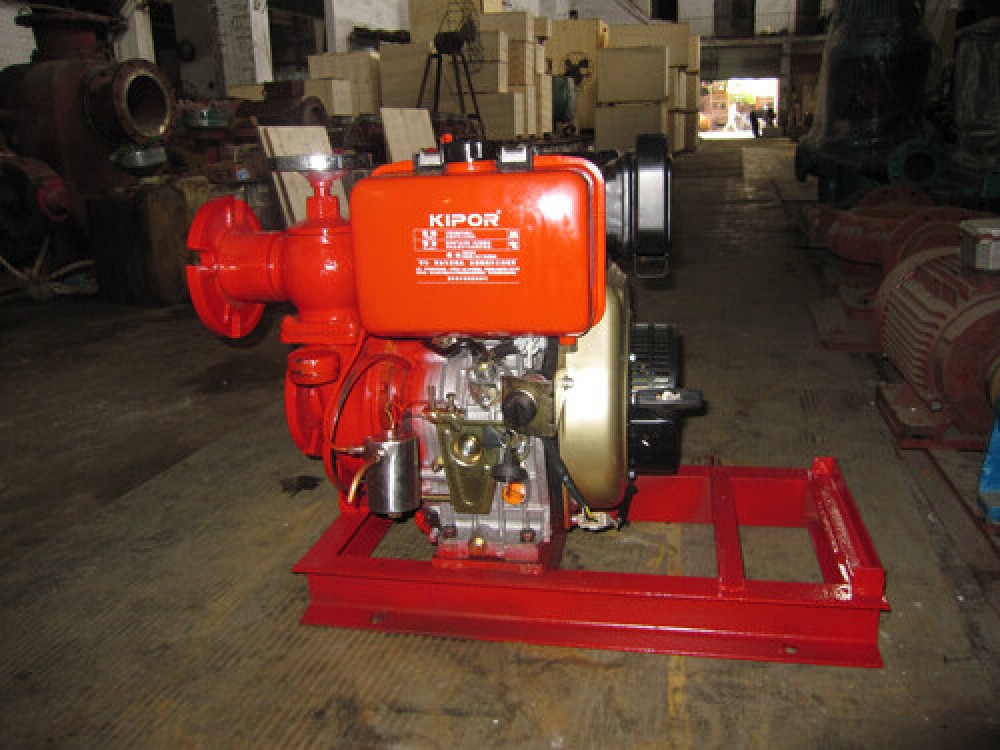

CWY Series Marine diesel engine emergency fire pump
CWY Series Marine diesel engine emergency fire pump has the feature of Light weight, small volume, flexible movement, starting fast, fast water, fuel tank capacity big, corrosion resistant, reliable operation, convenient maintenance, etc.

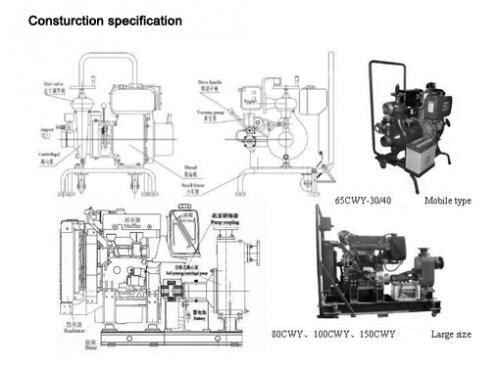

Construction Specification

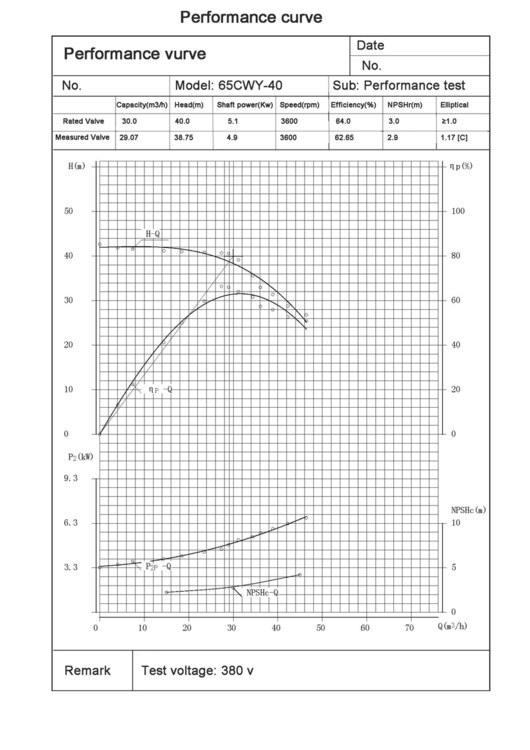

Performance Curve for reference for type 65CWY-40
Main Specification
CWY Series Marine diesel engine emergency fire pump
| Type | Capacity | Lift | Speed | Suction lift | Weight time | Efficiency | Diesel engine | Suc./Out Diameter | Weight | |
| (m3/h) | (m) | (r/min) | (m) | (S) | (%) | Type | Power | (mm) | (kg) | |
| 65CWY-25 | 20 | 25 | 3600 | 5～6 | ≤35 | 63 | KM178F | 4kw | 65/50 | 70 |
| 65CWY-30 | 25 | 30 | 3600 | 5～7.5 | ≤35 | 63 | KM186F | 6kw | 65/60 | 70 |
| 65CWY-40 | 30 | 40 | 3600 | 6～7 | ≤35 | 65 | KM186F | 6kw | 65/50 | 87 |
CWY Series Marine diesel engine emergency fire pump(Big Size)
| Type | Capacity | Lift | Speed | Suction lift | Weight time | Efficiency | Diesel engine | Suc./Out Diameter | Weight | |
| (m3/h) | (m) | (r/min) | (m) | (S) | (%) | Type | Power | (mm) | (kg) | |
| 80CWY-55 | 60 | 55 | 3500 | 6～7 | ≤35 | 68 | KM376QC | 16 | 80/50 | 240 |
| 80CWY-70 | 60 | 70 | 3500 | 6～7 | ≤35 | 66 | KM3388G | 22 | 80/80 | - |
| 100CWY-45 | 100 | 45 | 2900 | 4～5 | ≤100 | 50 | KD388 | 25 | 100/100 | 480 |
| 100CWY-70 | 90 | 70 | 2900 | 4～5 | ≤100 | 66 | KD488 | 31 | 100/100 | 500 |
| 150CWY-55 | 160 | 55 | 2900 | 4～5 | ≤100 | 48 | KM488ZG | 42 | 150/150 | 540 |
