US Type Light Duty Wire Rope Thimbles G-411

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification:

Material: Q235

Finish: Hot Dip Galvanized.

Size: 1/8" to 1 1/4"

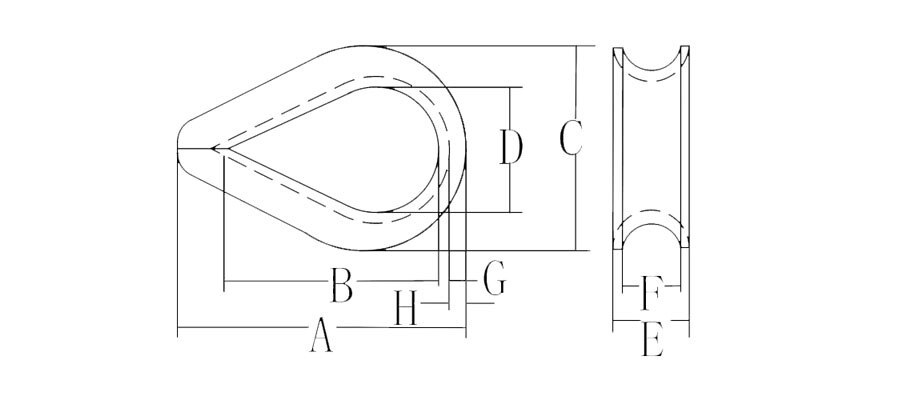

Size Table

Pope DIA (IN) Weight
/100(1bs.) 		Dimensions(in.)
A B C D E F G H
1/8 2.5 1.94 1.31 1.06 0.69 0.25 0.16 0.05 0.13
3/16 2.5 1.94 1.31 1.06 0.69 0.31 0.22 0.05 0.13
1/4 3.75 1.94 1.31 1.06 0.69 0.38 0.28 0.05 0.13
5/16 3.75 2.13 1.5 1.25 0.81 0.44 0.34 0.05 0.13
3/8 6.25 2.38 1.63 1.47 0.94 0.53 0.41 0.06 0.16
1/2 12.5 2.75 1.88 1.75 1.13 0.69 0.53 0.08 0.19
5/8 25 3.5 2.25 2.38 1.38 0.91 0.66 0.13 0.34
3/4 50 3.75 2.5 2.69 1.63 1.08 0.78 0.14 0.34
7/8 85 5 3.5 3.19 1.88 1.27 0.94 0.16 0.44
1 100 6.69 4.25 3.75 2.5 1.39 1.06 0.16 0.41
11/8-11/4 175 6.25 4.5 4.31 2.75 1.75 1.31 0.22 0.5
