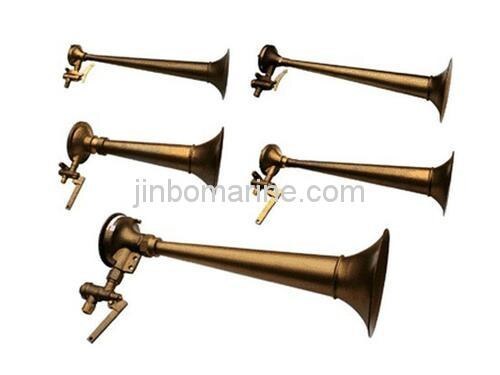

YQ Marine diaphragmatic Air Horn
- Category:Marine Air Horn
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China YQ Marine diaphragmatic Air Horn:
YQ Marine diaphragmatic Air Horn is a navigating device with condensed as sound motive, used to various ships and boats and also can be used as the source of the alarm signal in case of clearing of entering a port, shunning in voyage or bad visibility.
The Horn has the characteristics of simple structure, reliable quality, clear sound, big volumn, small air consumption.
Specification:
| Type | Nominal Dimension(mm) | Nominal Pressure(Mpa) | 1/3 Frequency Band(db) | Frequency Range(Hz) | Hearing Distance (Nautical Mile) | Length of Ship(M) |
| YQ-4 | 4 | 0.39 | >=120 | 250-700 | 0.5 | 12-20 |
| YA-6 | 6 | 0.59 | >=120 | 250-700 | 0.5 | 20-75 |
| YQ-8 | 8 | 0.59 | >=130 | 250-700 | 1 | 20-75 |
| YQ-10 | 10 | 0.8 | >=134 | 250-700 | 1 | 75-200 |
| YQ-15 | 15 | 0.98 | >=138 | 130-150 | 1.5 | 75-200 |
