01 Series 3500GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

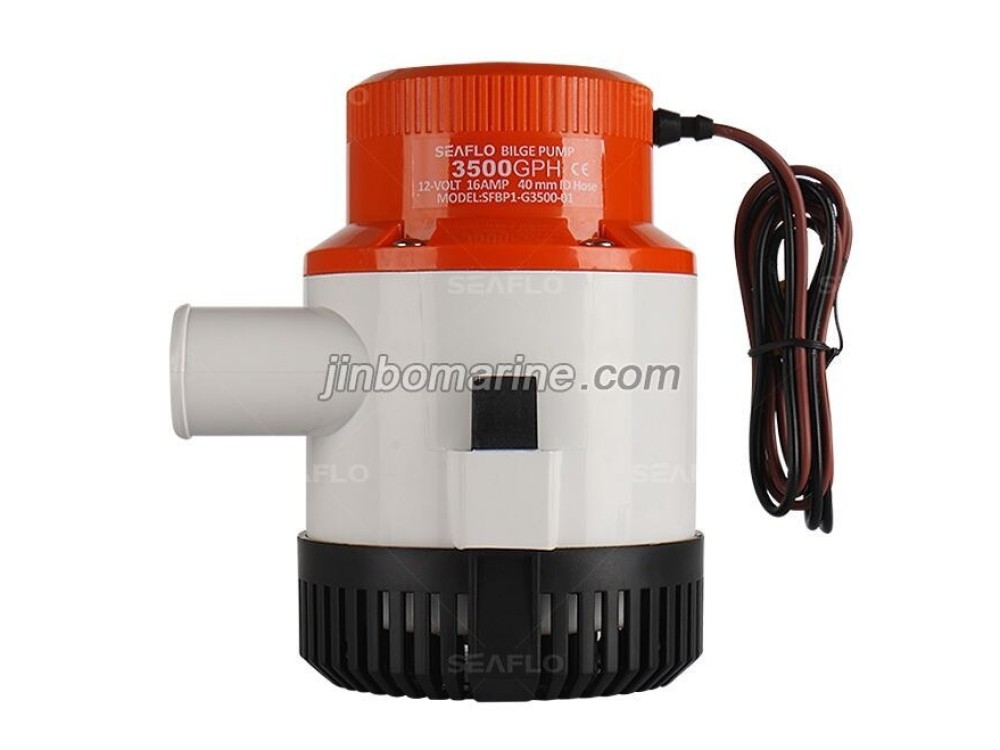

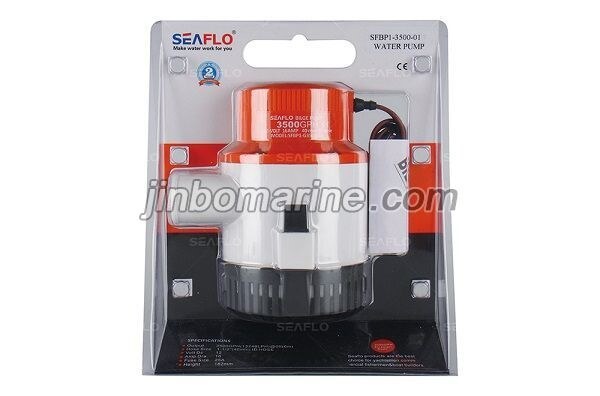

01 Series 3500GPH Bilge Pump
SEAFLO non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G3500-01 | 3500 GPH | 12 V | 16.0 A | 25.0 A | 26' (8m) | 3' (1m) | 1-1/2" | 2.10/2.37 kg |
| SFBP2-G3500-01 | 3500 GPH | 24 V | 8.0 A | 15.0 A | 26' (8m) | 3' (1m) | 1-1/2" | 2.10/2.37 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
|
12 |
10.3 |
3080 |
11658 |
0 |
|
12 |
10.5 |
2920 |
11052 |
0.5 |
|
12 |
10.8 |
2810 |
10636 |
1 |
|
12 |
11 |
2760 |
10447 |
1.5 |
|
12 |
11.5 |
2370 |
8970 |
2 |
|
12 |
12 |
2120 |
8024 |
2.5 |
|
12 |
12.5 |
2050 |
7759 |
3 |
