P1-025 Movable Elastic Hanger
The elastic elements is made by special type rubber,it has fine vibration resistance and impact resistance,and it has the following advantage,high temperature resistance,low temperature resi...
P1-025 Movable Elastic Hanger
We can supply according to your requirement.
China P1-025 Movable Elastic Hanger:
The elastic elements is made by special type rubber,it has fine vibration resistance and impact resistance,and it has the following advantage,high temperature resistance,low temperature resistance,oil resistance and aging resistance.
The hanger adopts active joint,the length can be adjusted,and it can be moved freely within the range of exhaust pipe thermal deformation.
Applicable range: suitable for vertical and horizontal exhaust pipe.

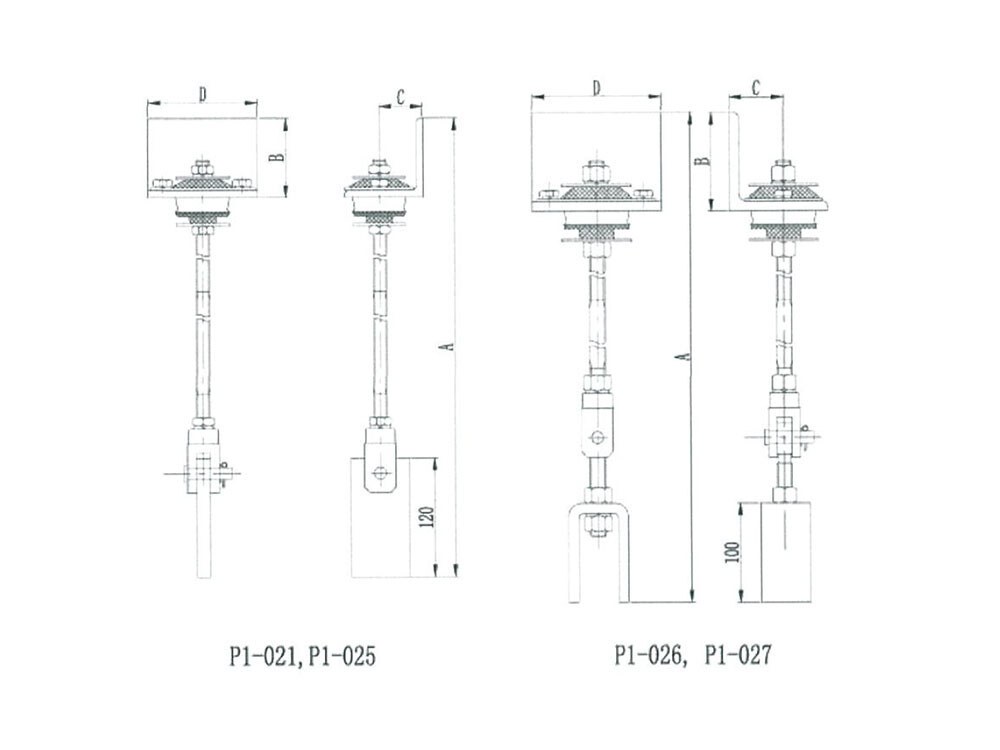

Outline Dimension And Performance Parameters:
| Type | Dimension | Maximum Load(KGF) | Maximum Working Load(KGF) | |||
| A(mm) | B(mm) | C(mm) | D(mm) | |||
| P1-021 | 450-550 | 80 | 45 | 110 | 100 | 35 |
| P1-025 | 450-550 | 100 | 60 | 120 | 200 | 70 |
| P1-026 | 530-680 | 100 | 55 | 130 | 400 | 130 |
| P1-027 | 530-680 | 125 | 75 | 130 | 600 | 200 |
