03 Series 600GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

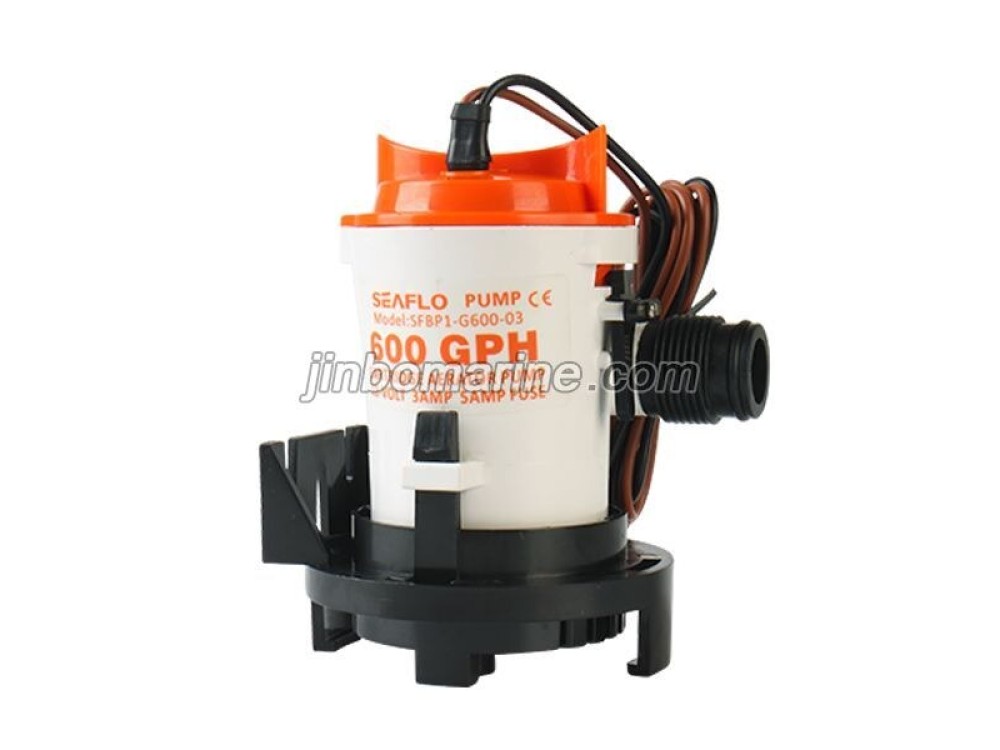

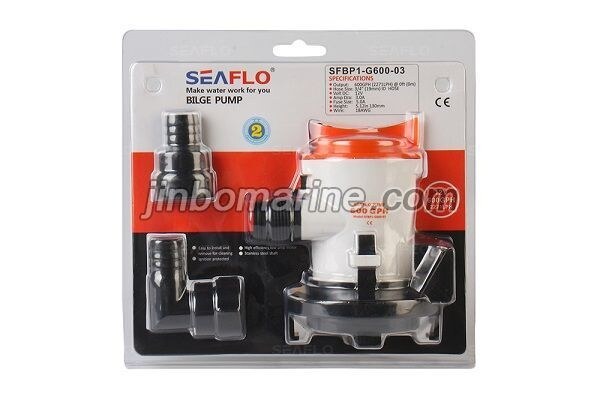

03 Series 600GPH Bilge Pump
Like our 02-series, this mounting bracket allows the pump to be mounted vertically. In addition, this model allows for the utmost flexibility with a removable cartridge for easy maintenance. The standard connection is threaded but included are adaptors to barbed in order to be flexible to your specific needs.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G600-03 | 600 GPH | 12 V | 3.0 A | 5.0 A | 11' (3.5m) | 3' (1m) | 3/4" | 0.37/0.46 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 2.4 | 520 | 1968 | 0 |
| 12 | 2.4 | 500 | 1892 | 0.4 |
| 12 | 2.4 | 460 | 1741 | 0.8 |
| 12 | 2.5 | 432 | 1635 | 1.2 |
| 12 | 2.6 | 360 | 1363 | 1.6 |
| 12 | 2.7 | 270 | 1022 | 2 |
| 12 | 2.9 | 220 | 833 | 2.4 |
